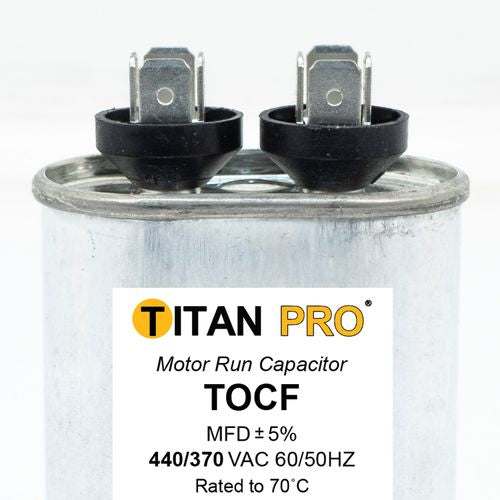

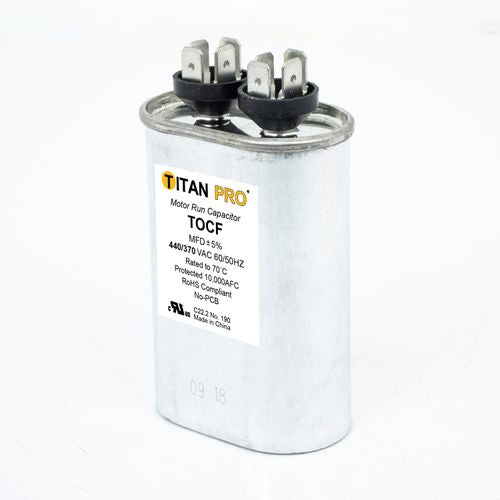

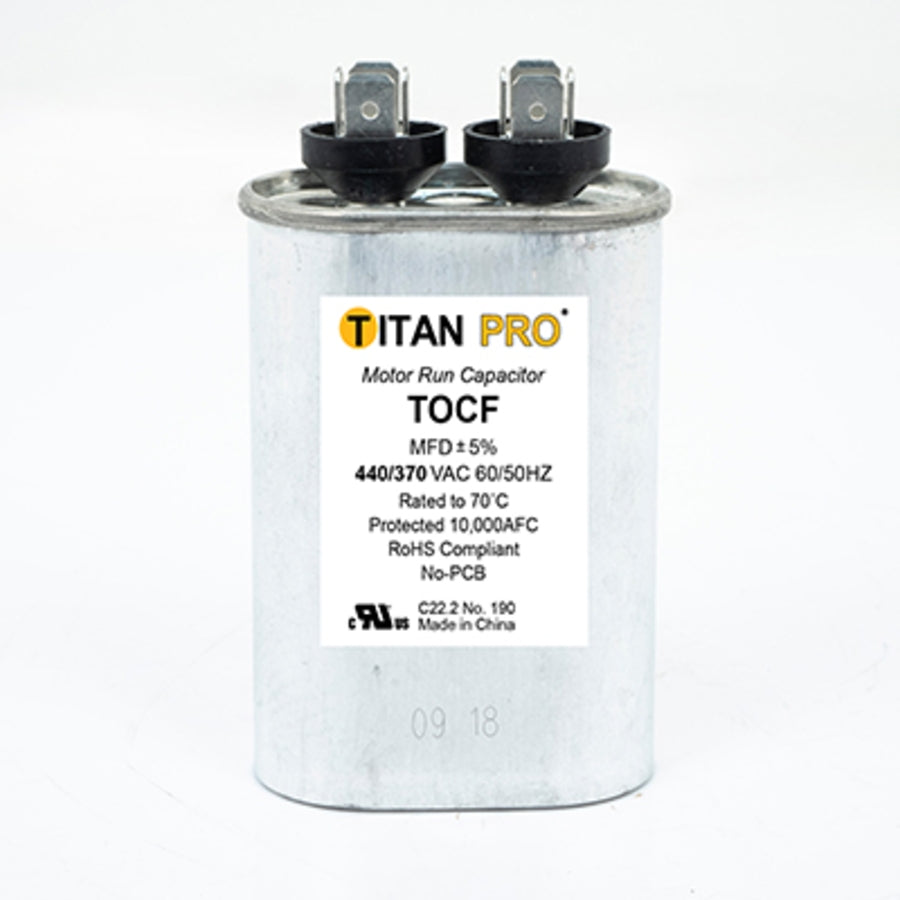

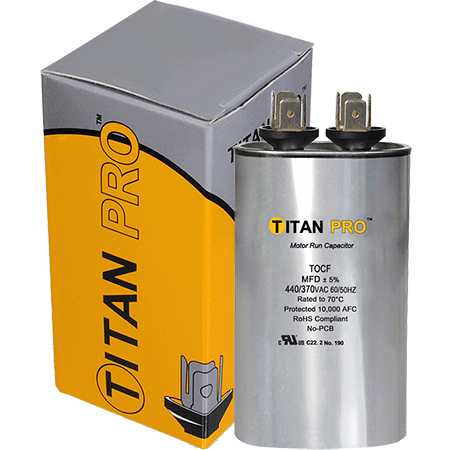

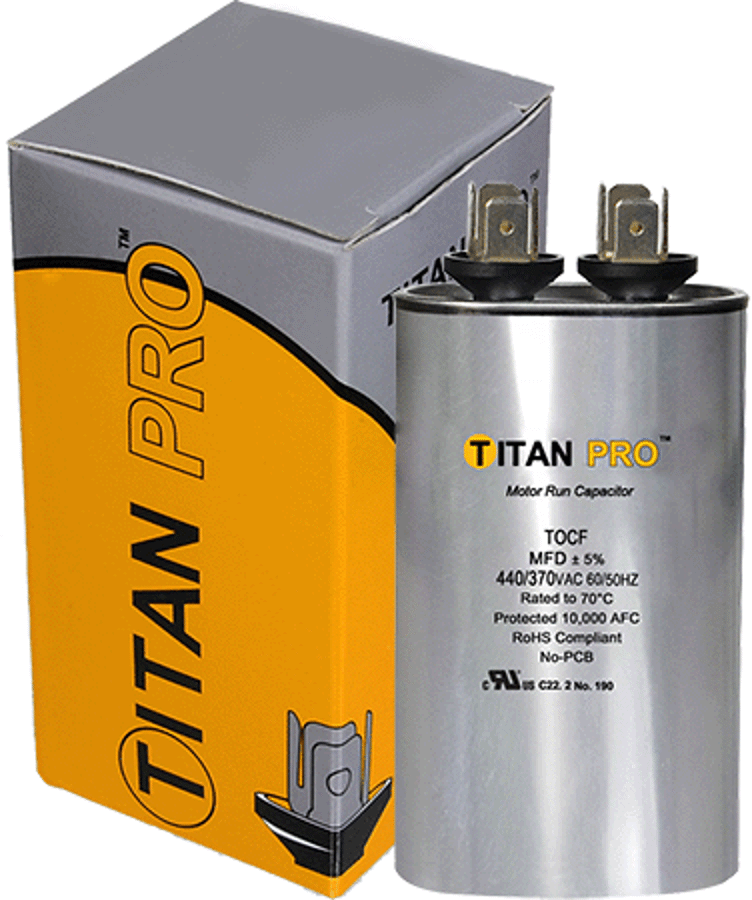

Diversitech TOCF12.5 run capacitor 440/370V 12.5 MFD oval single section

Product Description

The Diversitech TOCF12.5 is a run capacitor designed for AC motors, featuring a 12.5 microfarad capacitance and a 440/370V AC voltage rating. This oval, single-section capacitor is part of the Titan Pro series, engineered for reliable performance in HVAC/refrigerant applications. It boasts a 60,000-hour operational life and is built to EIA-456-A and IEC 60252-1:2001 standards, ensuring durability and safety.

• Offers 60,000 hours of operational life for extended reliability.
• Built to EIA-456-A and IEC 60252-1:2001 standards for quality assurance.
• Includes a built-in internal safety switch to prevent system damage.

Product Highlights

This Titan Pro series capacitor offers extended operational life and enhanced safety features for HVAC/Refrigerant systems.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: TOCF12.5
• Country of Origin: China

Technical Specifications

• Brand: Diversitech
• MPN: TOCF12.5
• Capacitor Type: Run Capacitor
• Capacitance: 12.5 MFD
• Voltage: 440/370V
• Series: Titan Pro TOCF
• Design: Oval Single Section
• Item Number: 9016568
• Frequency: 50/60 Hz
• Case Material: Aluminum
• Cover Material: Steel
• Oil Type: Soybean Base
• Terminal Type: Standard Blade
• Film Material: Metalized Polypropylene
• Operating Temperature: -40 to 70 Deg C
• Capacitance Tolerance: +/-5 Percent
• Operational Life: 60000 hours
• Application: HVAC/Refrigerant
• Certifications: UL (Canada and US), CSA C22.2, IEC 60252, EIA-456A
