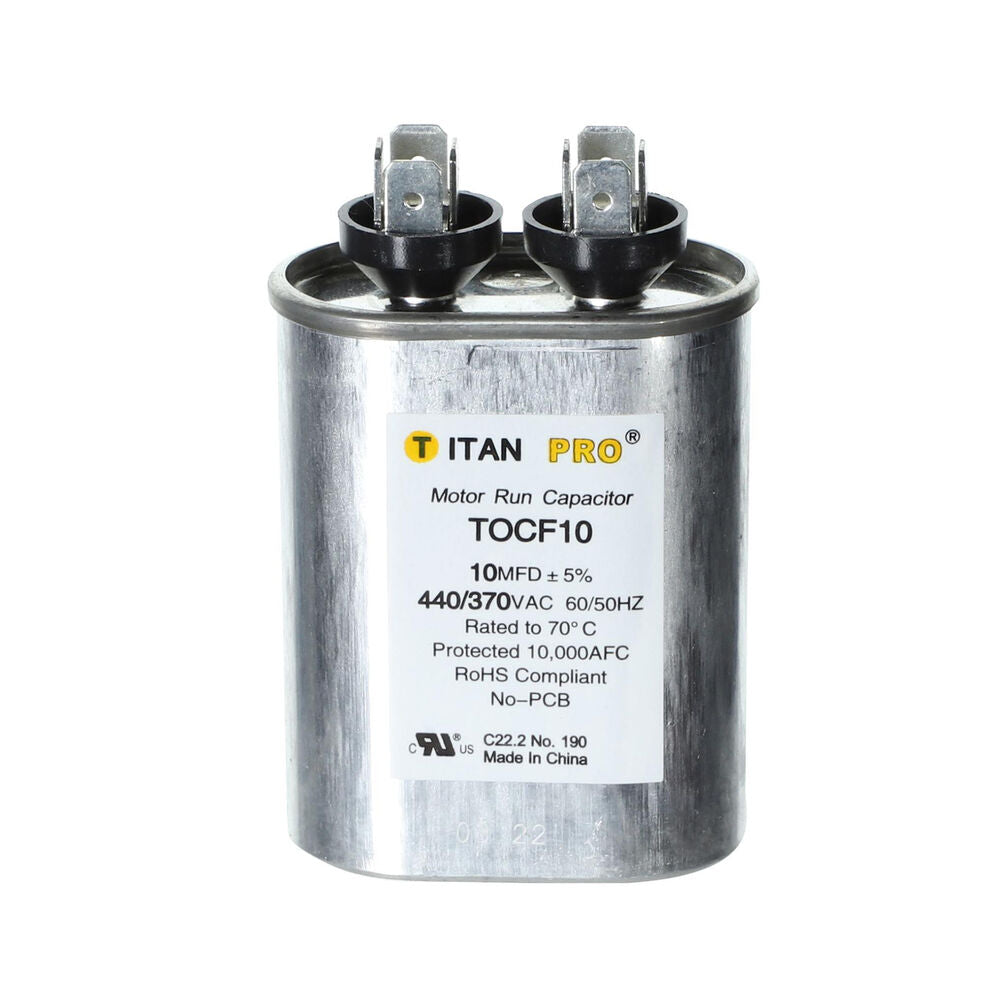

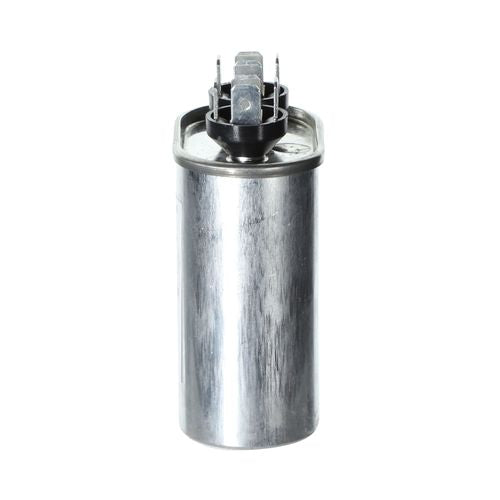

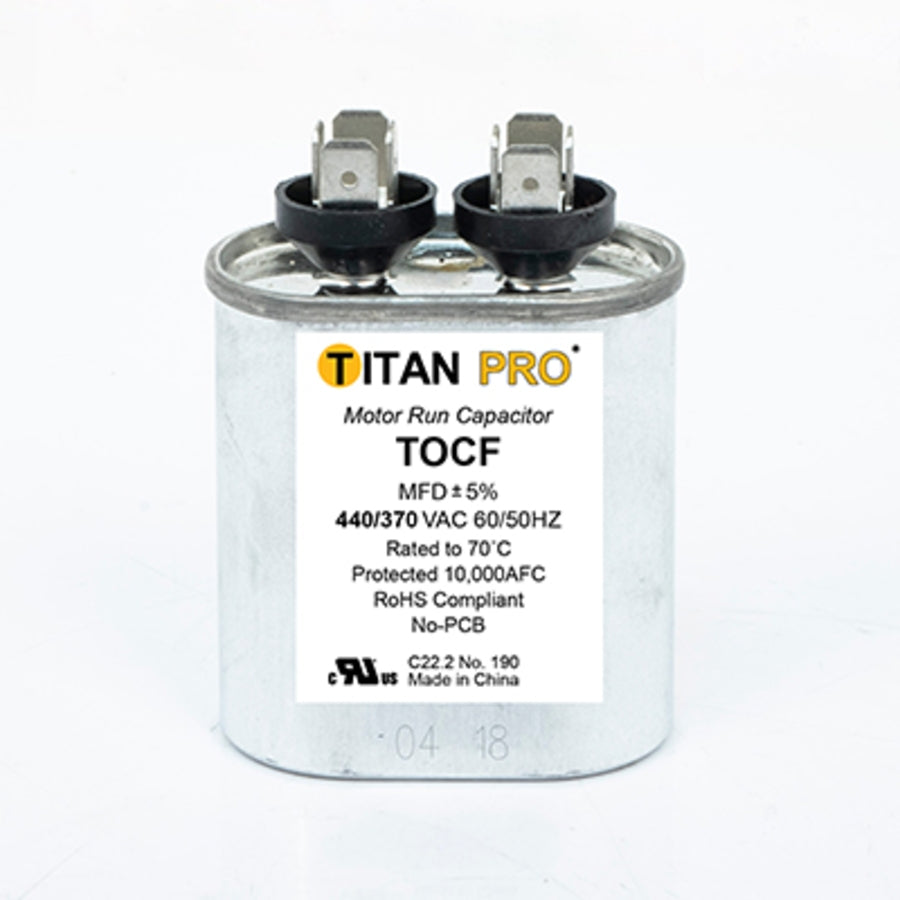

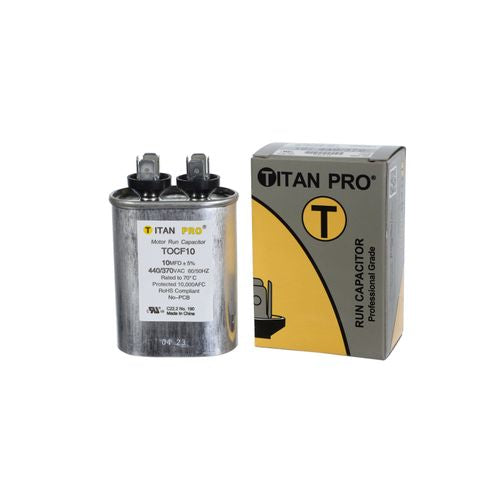

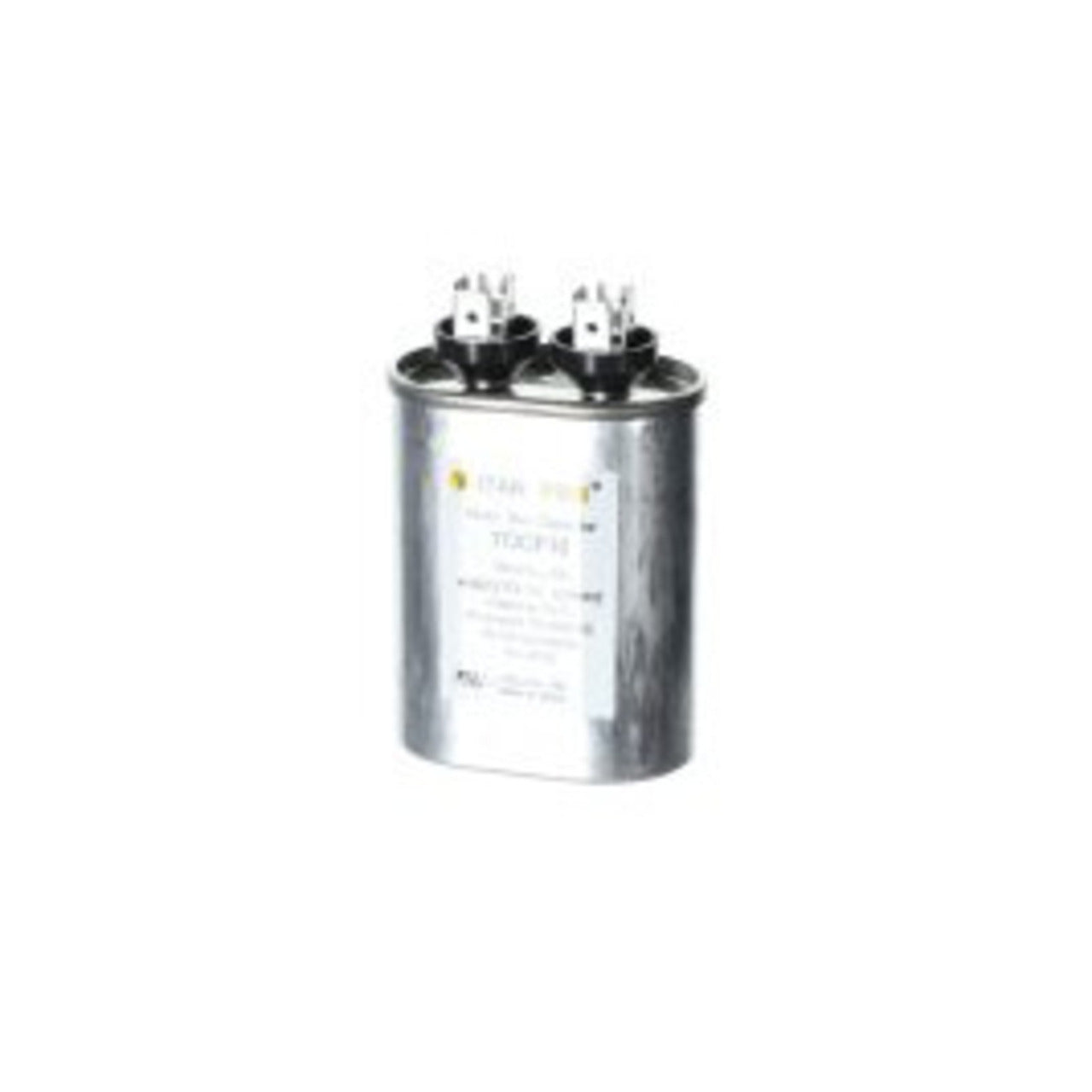

Diversitech tocf10 Motor Run Capacitor 10 Mfd 440/370V

Product Description

The DIVERSITECH tocf10 is a professional-grade single motor run capacitor rated at 10 microfarads (MFD) and dual-rated for 440/370 volts. It is designed to provide the phase shift needed to start and run single-phase motors in HVAC systems, including condenser fan motors and compressor circuits. The oval form factor measures 1.24 inches x 2.03 inches x 2.56 inches and weighs 0.3 pounds, making it a compact, direct-replacement option. Licensed HVAC technicians are the primary installers for this component during routine service calls or motor replacements.

The tocf10 is suited for use in both ducted and ductless HVAC systems operating on 50 or 60 Hz power. Common applications include residential and light commercial air conditioning units, heat pumps, and mini-split systems where a 10 MFD oval run capacitor is required. Its dual voltage rating of 440/370 volts provides flexibility across a range of equipment voltage configurations encountered in the field.

Key Features

• 10 MFD capacitance rating for single-phase motor run applications
• Dual voltage rated at 440/370 volts for broad equipment compatibility
• Oval shape fits standard capacitor mounting brackets and housings
• Compatible with both 50 Hz and 60 Hz systems
• Compact size: 1.24 inches x 2.03 inches x 2.56 inches at 0.3 pounds
• Suitable for both ducted and ductless HVAC equipment

Compatibility

Designed as an OEM-style replacement motor run capacitor for residential and light commercial HVAC systems requiring a 10 MFD, 440/370-volt oval capacitor in both ducted and ductless configurations.

Installation Notes

Installation should be performed by a qualified HVAC technician. Always disconnect and lock out power to the unit before handling capacitors, as they store an electrical charge that must be safely discharged prior to removal. Verify the MFD rating, voltage rating, and physical dimensions match the original capacitor before installation. Follow all applicable local electrical codes and manufacturer wiring diagrams during replacement.

Technical Specifications

• MFD Rating: 10 MFD
• Voltage Rating: 440/370 volts
• Capacitance Type: Single
• Shape: Oval
• Frequency: 50/60 Hz
• Dimensions: 1.24 inches x 2.03 inches x 2.56 inches
• Weight: 0.3 pounds
• Application: Ducted and Ductless

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: tocf10
