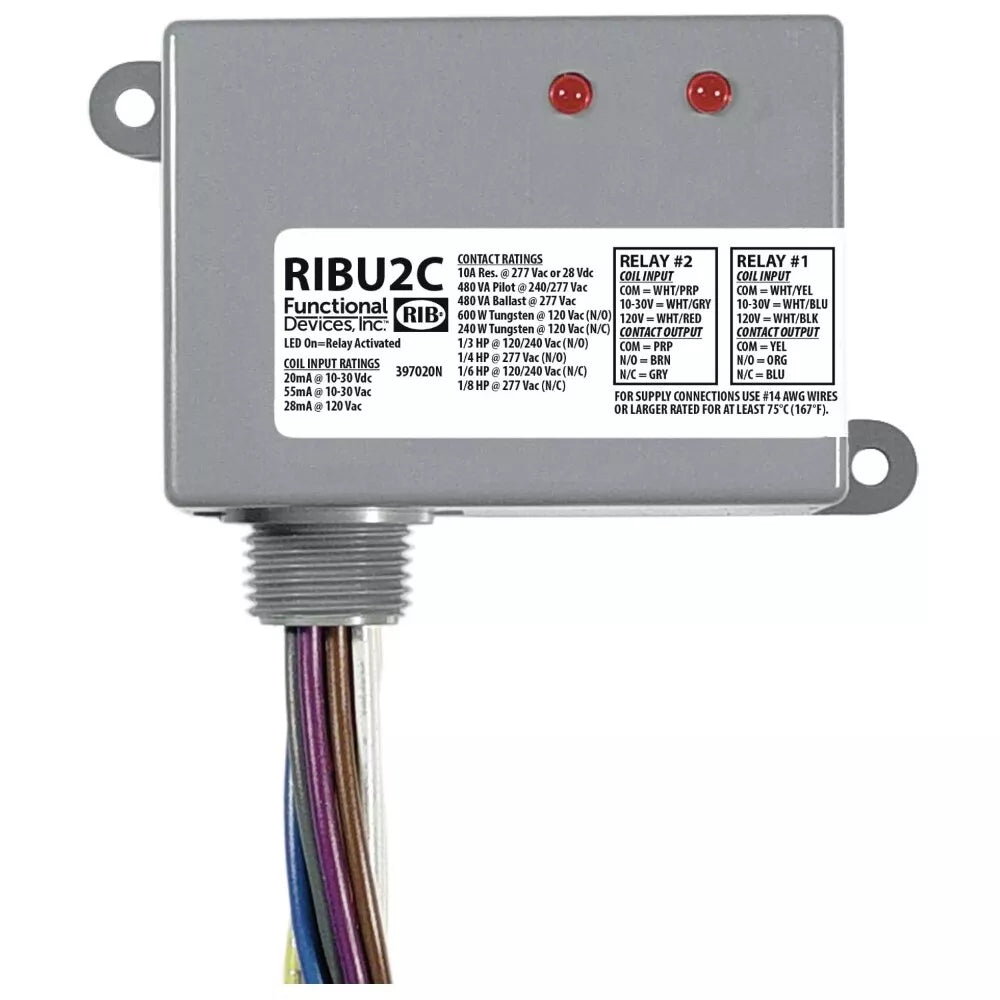

DIVERSITECH RIBU2C Enclosed Pilot Relay 10-30 VAC/DC or 120 VAC

Product Description

The DIVERSITECH RIBU2C is an enclosed pilot relay with dual SPDT (Single Pole Double Throw) contacts. It is built for continuous duty, functioning with a coil voltage of ten to thirty VAC or DC, and also at one hundred twenty VAC. The relay is contained in a NEMA 1 enclosure, equipped with LED indicators for status signaling and features sixteen leads for easy connection.

• Dual SPDT contacts for versatile applications.
• Coil voltage range of ten to thirty VAC/DC and one hundred twenty VAC.
• Includes LED indicators and sixteen leads for straightforward installation.

Product Highlights

This relay is suitable for HVAC applications and can be used in both ducted and ductless systems.

Product Information

Standard Information

• Brand: DIVERSITECH
• MPN: RIBU2C

Technical Specifications

• Relay Type: 2 SPDT
• Coil Voltage: 10-30 VAC/VDC
• Control Voltage: 10-30 VAC/VDC or 120 VAC
• Output Current: 10 Amps
• Enclosure Type: NEMA 1
• Item Height: 2.5 inches
• Item Width: 4.375 inches
• Item Length: 6.625 inches
