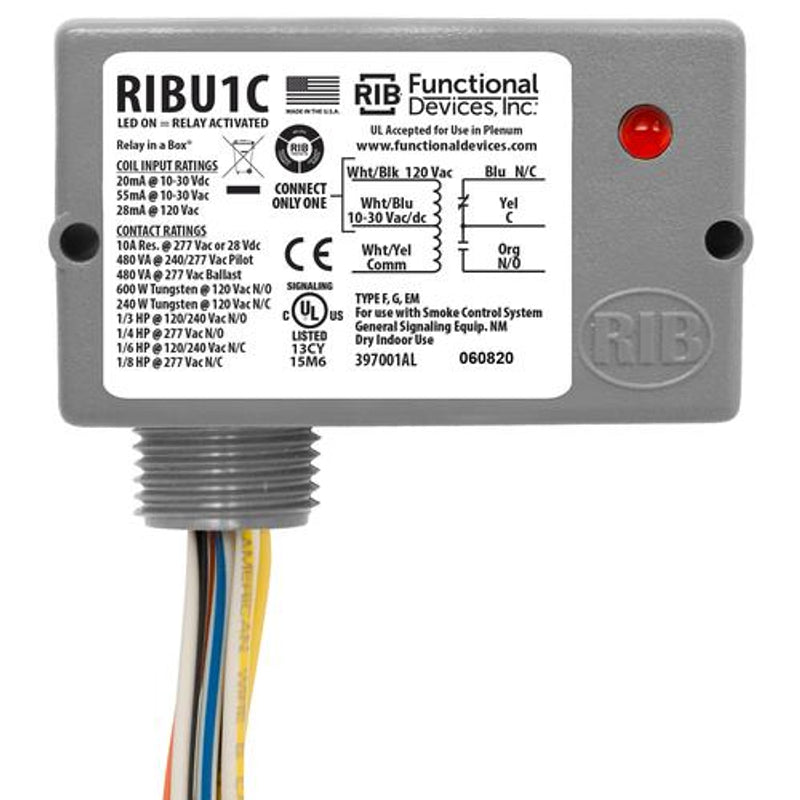

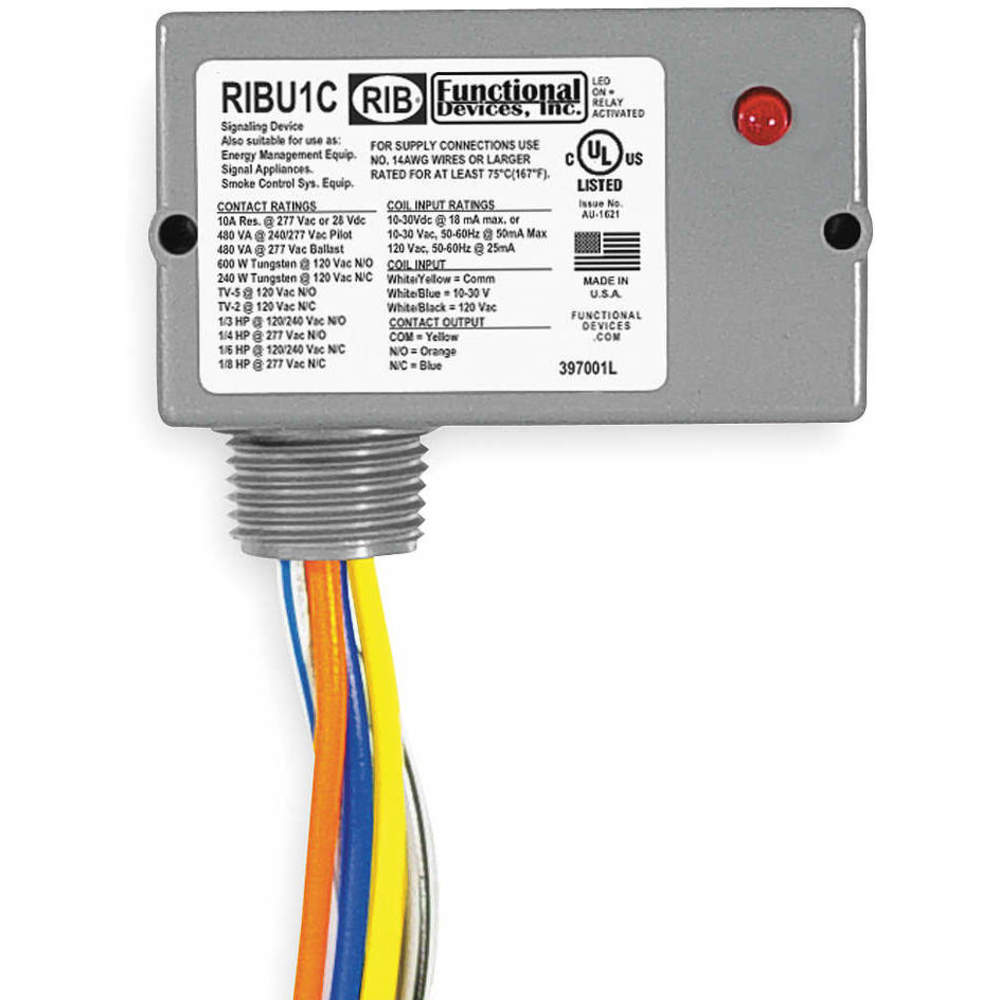

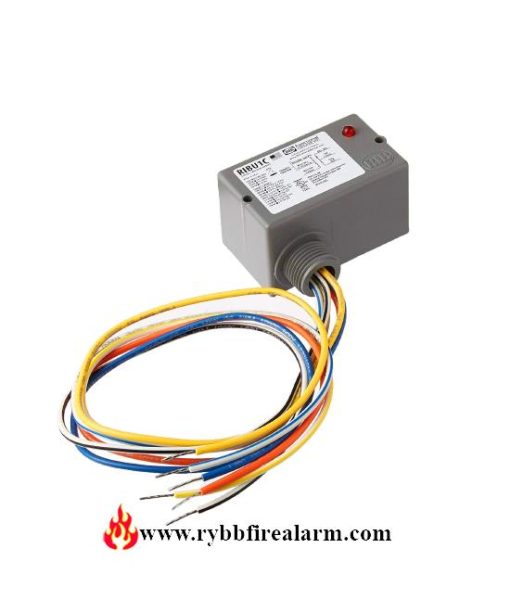

DIVERSITECH RIBU1C Enclosed Pilot Relay 10-30 VAC/DC 120 VAC

Product Description

The DIVERSITECH RIBU1C is an enclosed pilot relay for electrical control tasks. It is pre-wired and housed in a NEMA 1 enclosure. This relay features SPDT contact form and an LED indicator to show operational status. It is suitable for surface mounting with wire lead connections.

• Contact Rating: 10 Amp SPDT
• Coil Voltage: 10-30 VAC/DC, 120 VAC
• Designed for easy surface mounting

Product Highlights

This relay is widely used in control applications, ensuring reliable function with solid-state technology. It operates in various environments and meets multiple standards for safety and compliance.

Product Information

Standard Information

• Brand: DIVERSITECH
• MPN: RIBU1C

Technical Specifications

• Relay Type: Pilot
• Contact Form: SPDT
• Contact Voltage Rating: 277 Volt AC/28 Volt DC
• Contact Current Rating: 10 Amp at 277 Volt AC, 10 Amp at 28 Volt AC
• Coil Voltage: 10-30V AC/DC/120V AC
• Operating Time: 20 ms
• Operating Temperature: -30 to 140 degrees F
• Enclosure Type: NEMA 1
• Mounting Type: Surface
• Status Indicator: LED Indicator
• Dimensions: 1.7 Inch x 2.8 Inch x 1.5 Inch
