Diversitech RB1104AV1 Motor 1 HP 1725RPM 115/208-230 Volt

Product Description

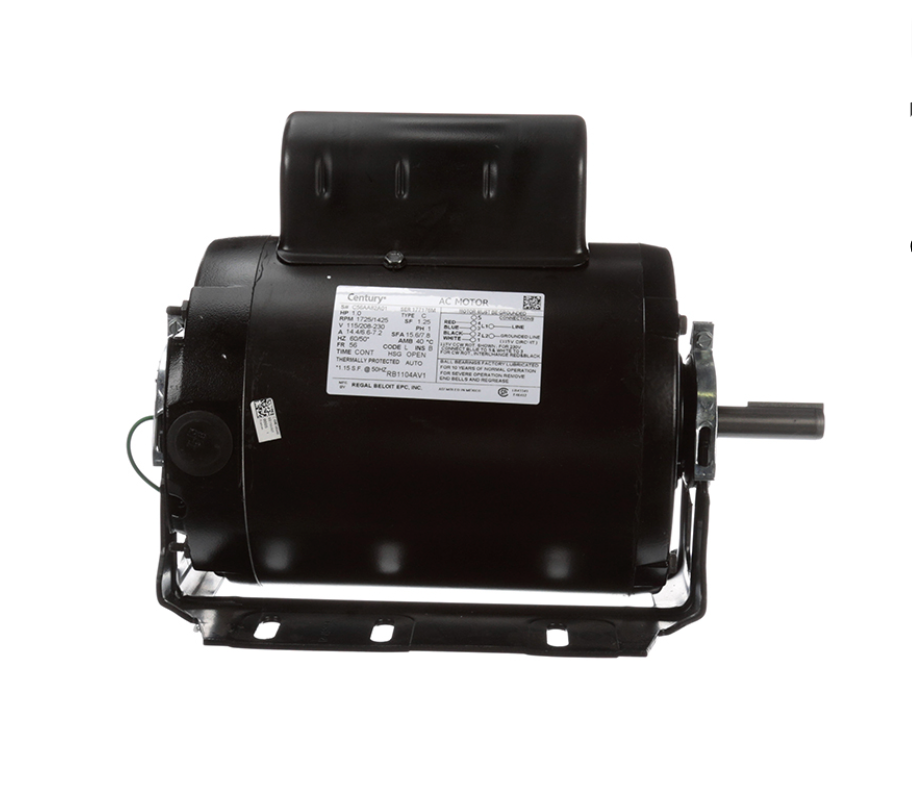

The DIVERSITECH RB1104AV1 motor is a 1 HP 1725RPM motor operating at 115/208-230 volts. Designed for industrial duty, this motor features a capacitor start and an open enclosure. It is suitable for HVAC air handlers, furnaces, and commercial packaged units. The motor has a resilient base mounting and is electrically reversible.

• Designed for HVAC air handlers, furnaces, and commercial packaged units.
• Features high-temperature durability and energy efficiency.
• Includes multi-speed and reversible designs for various OEM applications.

Product Highlights

The DIVERSITECH RB1104AV1 is ideal for industrial applications requiring a durable and efficient motor.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: RB1104AV1

Technical Specifications

• Volts: 115_208-230
• Material: Steel
• Hertz: 50_60
• Horsepower: 1 HP
• Amps: 14
• Bearing: Ball
• Motor Type: Capacitor Start Induction Run
• Mounting: Resilient Base
• Rotation: REVERSIBLE
• RPM: 1725_1425
• Speeds: 1
• Shaft ( in.): 5/8 x 1-7/8
• Ducted or Ductless: Ducted
• phases: Single
• Application: Industrial Duty
• Enclosure: Open
• Frame: 56
• Brand/ Manufacturer: Century Motors
• Product Series: Commercial Blower Motor
• Model #: RB1104AV1
• Products Used With: HVAC Air Handlers
