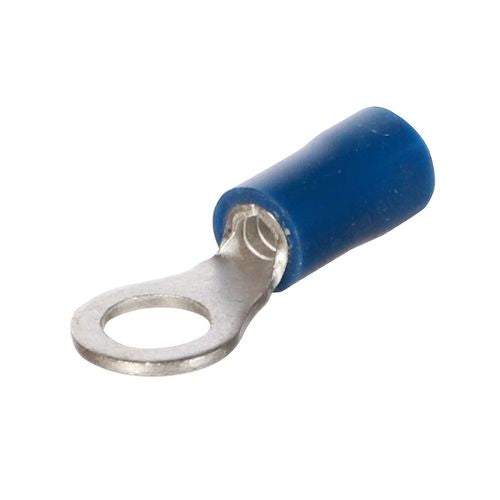

Diversitech R222 Ring Terminal 14 Awg Pack of 16

Product Description

The DIVERSITECH R222 is a 14 AWG ring terminal connector sold in a pack of 16. Ring terminals provide a secure, low-resistance electrical connection between a wire and a threaded stud or screw terminal. This type of connector is a staple in HVAC wiring, control panel work, and equipment hookups where a reliable, permanent termination point is required. The R222 is sized for 14 AWG wire and is well suited for the branch circuit and control wiring gauges commonly encountered in residential and light commercial HVAC and electrical service work.

Ring terminals in this size range are used throughout HVAC equipment wiring, including connections to contactors, capacitors, disconnect blocks, and control boards. Electricians and HVAC technicians reach for this style of connector when a screw or stud termination is required and a secure, vibration-resistant connection must be maintained over time. The pack-of-16 quantity makes it practical to keep on a service vehicle or in a shop kit for routine maintenance and repair jobs.

Key Features

• 14 AWG wire size for compatibility with common HVAC and branch circuit conductors
• Ring-style termination provides a secure connection that will not pull free from a stud or screw
• Pack of 16 terminals for efficient stocking and multi-connection jobs
• Compact profile at 3.25 inches in length facilitates use in tight panel and equipment enclosures

Compatibility

Designed as a standard-style ring terminal for use with 14 AWG conductors in residential and light commercial HVAC, electrical, and control wiring applications.

Installation Notes

Ring terminals are installed by licensed electricians and HVAC technicians using a ratcheting or compression-style crimping tool rated for the wire gauge being terminated. Always de-energize and lock out the circuit before making or removing wire terminations. Verify that the ring terminal inner diameter matches the stud or screw size at the termination point before crimping. Do not solder over a crimped ring terminal unless specifically required by the equipment manufacturer, as this can create a stress point at the barrel.

Technical Specifications

• Wire Gauge: 14 AWG
• Quantity: 16 per pack
• Length: 3.25 inches
• Width: 0.5 inches
• Weight: 0.2 pounds

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: R222
