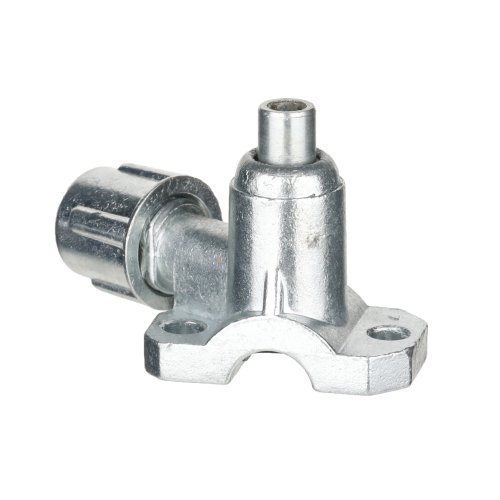

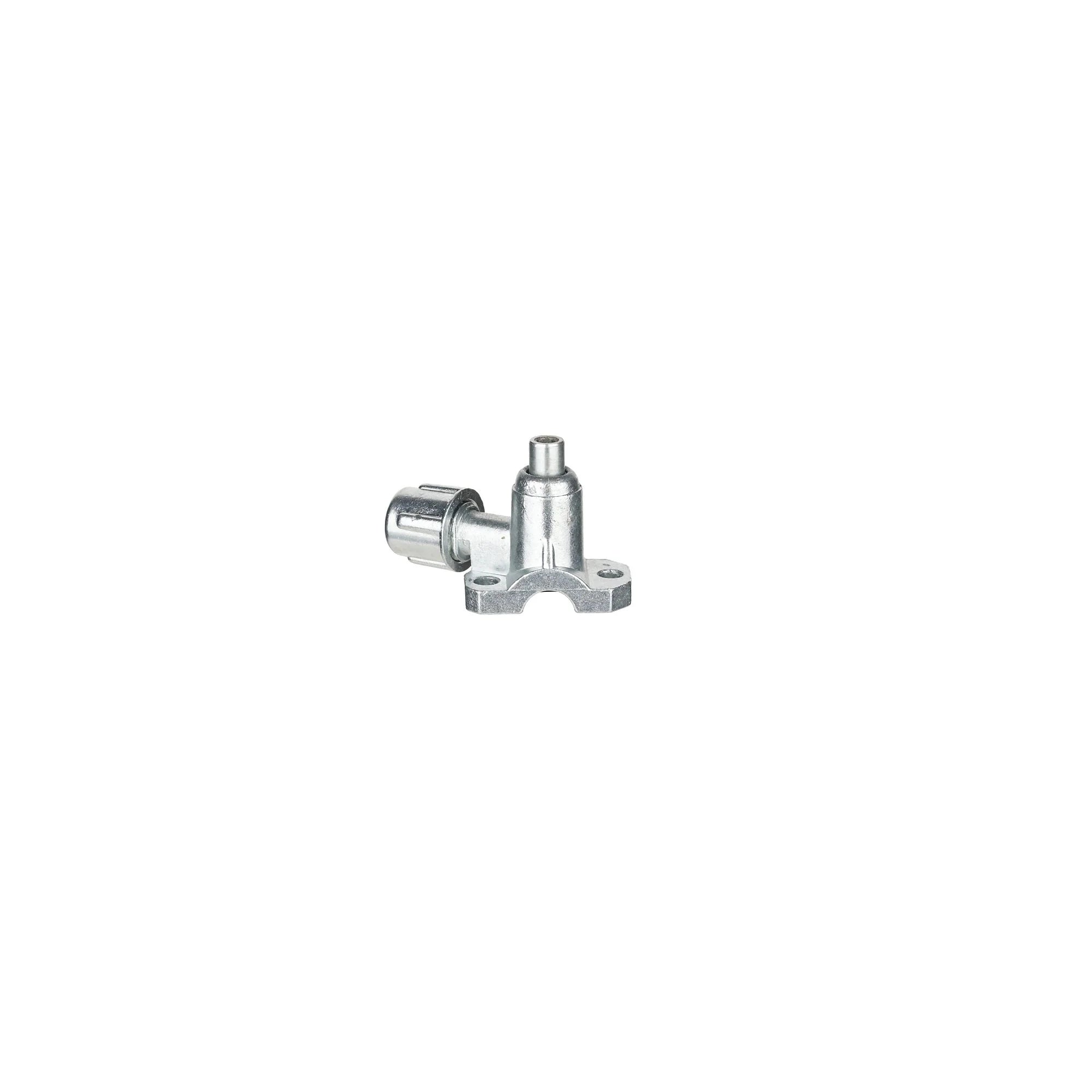

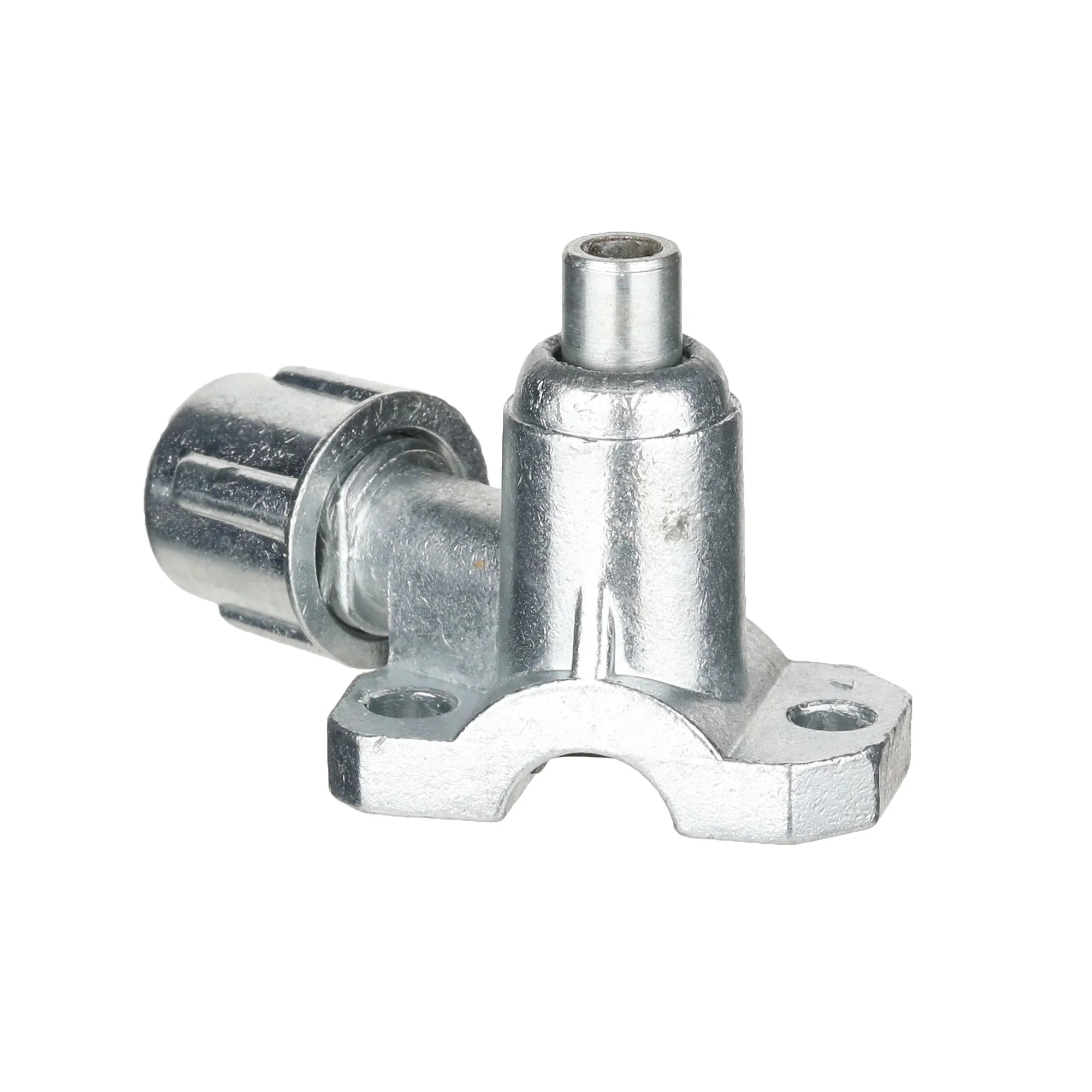

DiversiTech QT-1 Quik Tap, Line Tap Piercing Tool, 1/4, 5/16, 3/8 OD Tube Size

Product Description

The DiversiTech QT-1 is a line tap piercing tool designed for easy and effective refrigerant line access. It features a valve core located in the one-quarter inch male port. This allows for quick line piercing and back seating of the needle. The flow of refrigerant begins upon connecting a depressor hose and automatically shuts off when the hose is removed. Notably, the valve core can be removed if not needed, enabling full unrestricted flow at all times. The design allows the valve core to be changed or removed without any refrigerant loss if the needle is front seated.

• Compatible with one-quarter, five-sixteenths, and three-eighths inch outer diameter tubing
• Allows for quick and efficient refrigerant handling
• Valve core can be removed or replaced without losing refrigerant

Product Highlights

This tool is particularly useful for HVAC technicians and refrigeration professionals, facilitating quick access to refrigerant lines without disruption.

Product Information

Standard Information

• Brand: DiversiTech
• Part Number: QT-1

Technical Specifications

• Connection Size: 1/4, 5/16, 3/8 O.D.
• Dimension Length: 2.75 inches
• Dimension Width: 1.13 inches
• Dimension Height: 2.75 inches
• Weight: 0.18 pounds
• Material: Steel
• Connection Type: Sweat or Braze
• Country of Origin: China
