Diversitech qstd1000 Hvac Equipment Stand 500 Lb Adjustable

Product Description

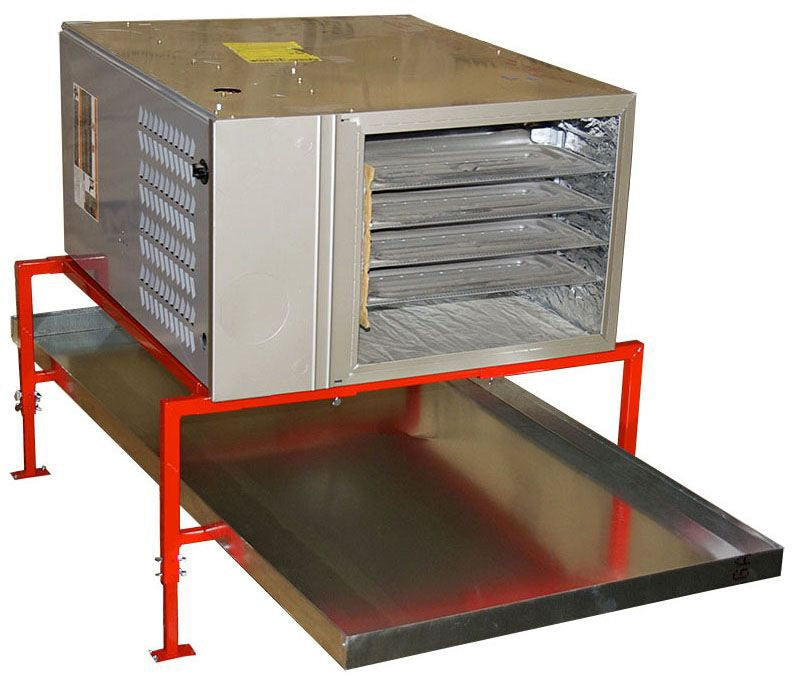

The DIVERSITECH qstd1000 is an adjustable floor stand designed to support residential and light-commercial furnaces and air handlers. It accepts units ranging from 32 to 48 inches in width and 32 to 48 inches in length, with a height that adjusts from 12 to 22 inches to meet installation clearance requirements. The stand is rated for a maximum load of 500 pounds, accommodating the weight of full-size gas furnaces and larger air handler cabinets. HVAC technicians install this stand to elevate equipment off slab, basement floor, or crawlspace surfaces, improving drainage clearance and service access.

This stand is suited for residential furnace and air handler installations where equipment must be raised off a concrete or finished floor. Typical applications include basement mechanical rooms, utility closets, and garage installations where floor-level moisture exposure is a concern or where local codes require a minimum equipment elevation. The adjustable footprint and height range make it a practical single-SKU solution across a range of cabinet sizes without custom fabrication.

Key Features

• Adjustable height from 12 to 22 inches to meet clearance and code requirements
• Adjustable width and length from 32 to 48 inches to fit a range of cabinet footprints
• 500 lb maximum load rating supports full-size furnace and air handler weights
• Eliminates the need for custom-built wood or metal equipment platforms
• Floor-mounted design keeps equipment stable during operation and service

Compatibility

Designed as an OEM-style adjustable floor stand for residential and light-commercial furnaces and air handlers with cabinet widths and lengths between 32 and 48 inches and a combined unit weight not exceeding 500 pounds.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer's installation instructions. Disconnect and lock out all electrical power and gas supply to the unit before moving or repositioning equipment onto the stand. Confirm the stand is fully adjusted and secured to its final dimensions before setting the furnace or air handler in place. Do not exceed the 500 lb rated load capacity.

Technical Specifications

• Maximum Load Capacity: 500 pounds
• Adjustable Height Range: 12 to 22 inches
• Adjustable Width Range: 32 to 48 inches
• Adjustable Length Range: 32 to 48 inches

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: qstd1000
