Diversitech QSSB62-12 ss base w/62in rails 12in tall

Product Description

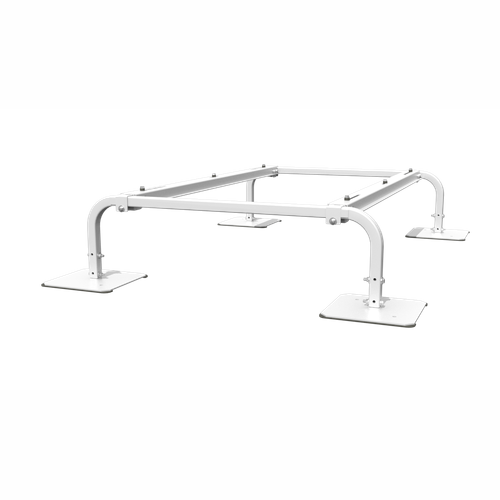

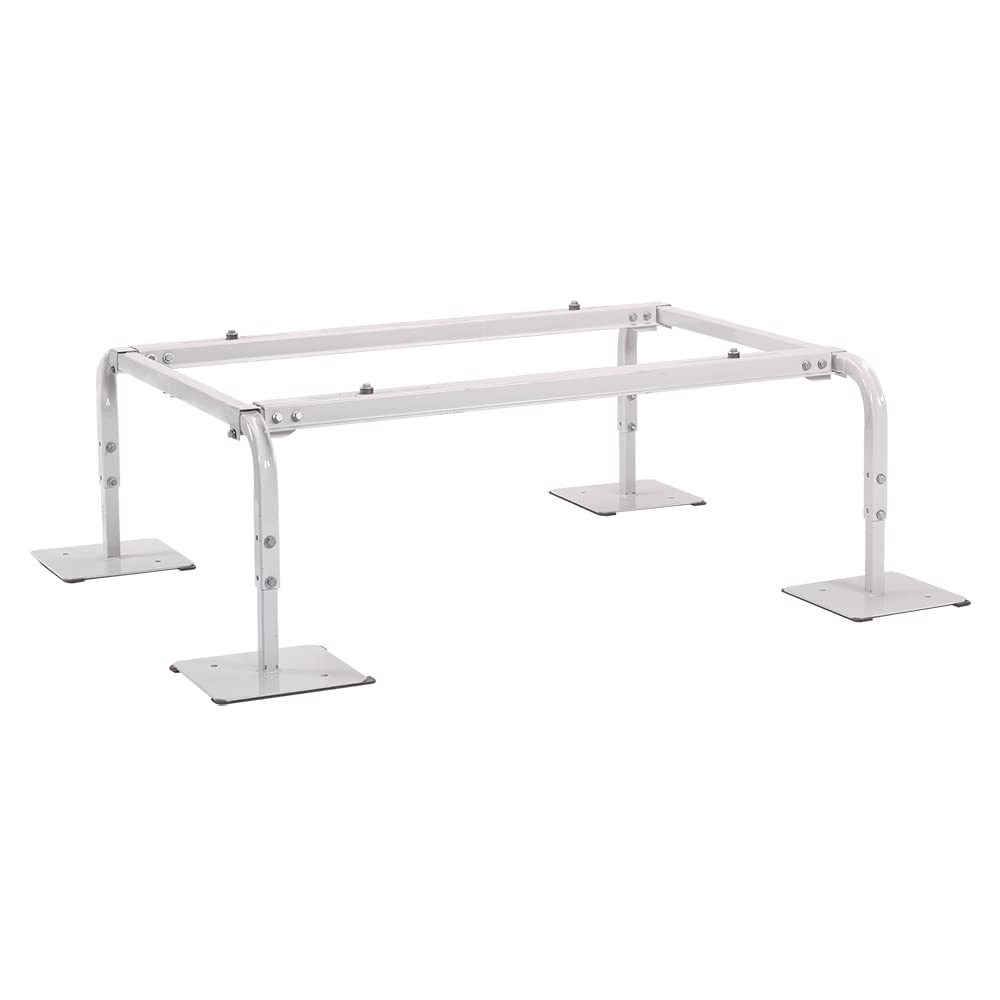

The Diversitech QSSB62-12 is a Super Stand single unit base designed to provide a strong and stable mounting platform for VRF/VRV outdoor units. This modular base features 62-inch rails and stands 12 inches tall, capable of supporting up to 1200 lbs per modular section. Constructed from powder-coated steel, it is approved by the Florida Building Commission for use in high velocity hurricane zones, ensuring durability and stability for HVAC equipment installations.

• Modular design accommodates single or multi-unit VRF/VRV configurations.
• Constructed from 11 gauge, 1.5 inch powder-coated steel square tubing.
• Approved by the Florida Building Commission for high velocity hurricane zones.

Product Highlights

Provides a strong, stable, and adjustable mounting platform for VRF/VRV outdoor units with 62-inch rails and a 12-inch height.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: QSSB62-12

Technical Specifications

• Manufacturer: Diversitech
• Brand: Diversitech
• Adjustable: Yes
• Mounting Type: Roof, Concrete Pad
• Color: Tan
• Application: VRF, VRV, HRV
• Load Capacity: 1200 lbs per modular section
• Material: Powder Coated Steel
• Rating: Wind, Hurricane
• Ducted or Ductless: Ductless
• Type: QSSB Base Stand
• Rail Length: 62 inches
• Adjustable Dimensions: 62 in x 32.75 in
