Diversitech QSMS3001-18EXT super stand extender kit 18 in.

Product Description

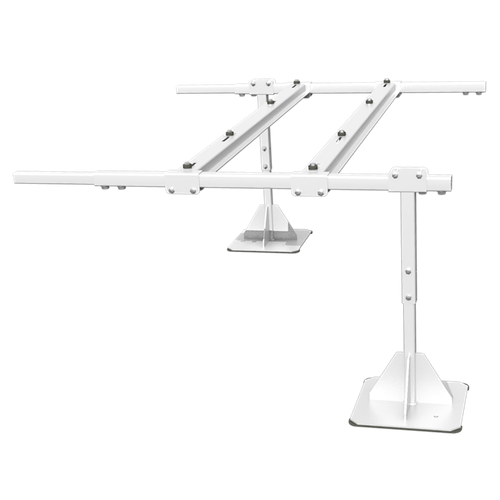

The DIVERSITECH QSMS3001-18EXT is an 18-inch height extender kit designed for the QSMS3001-18 mini-split multi-unit super stand base kit. This powder-coated steel extender kit allows for the addition of two mini-split condenser units, supporting a load capacity of 300 lbs. Multiple kits can be combined to accommodate various ductless condenser applications.

• Constructed of 1.5 in. 11 gauge steel tubing and 11 gauge steel rails.
• Features 12 in. x 12 in. 7 gauge feet for ground or roof mounting.
• Includes 50 Durometer rubber pads pre-installed on each foot to reduce vibration and noise.

Product Highlights

Extends the QSMS3001-18 super stand by 18 inches, enabling additional mini-split condenser unit capacity.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: QSMS3001-18EXT

Technical Specifications

• Adjustable: Yes
• Mounting Type: Roof, Concrete Pad
• Application: Ductless Condenser
• Load Capacity: 300 lbs
• Material: Powder Coated Steel
• Ducted or Ductless: Ductless
