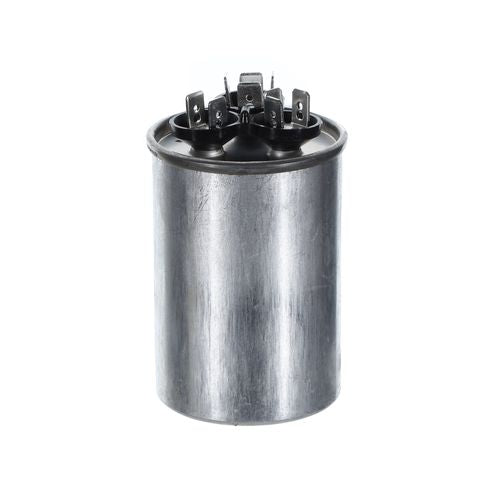

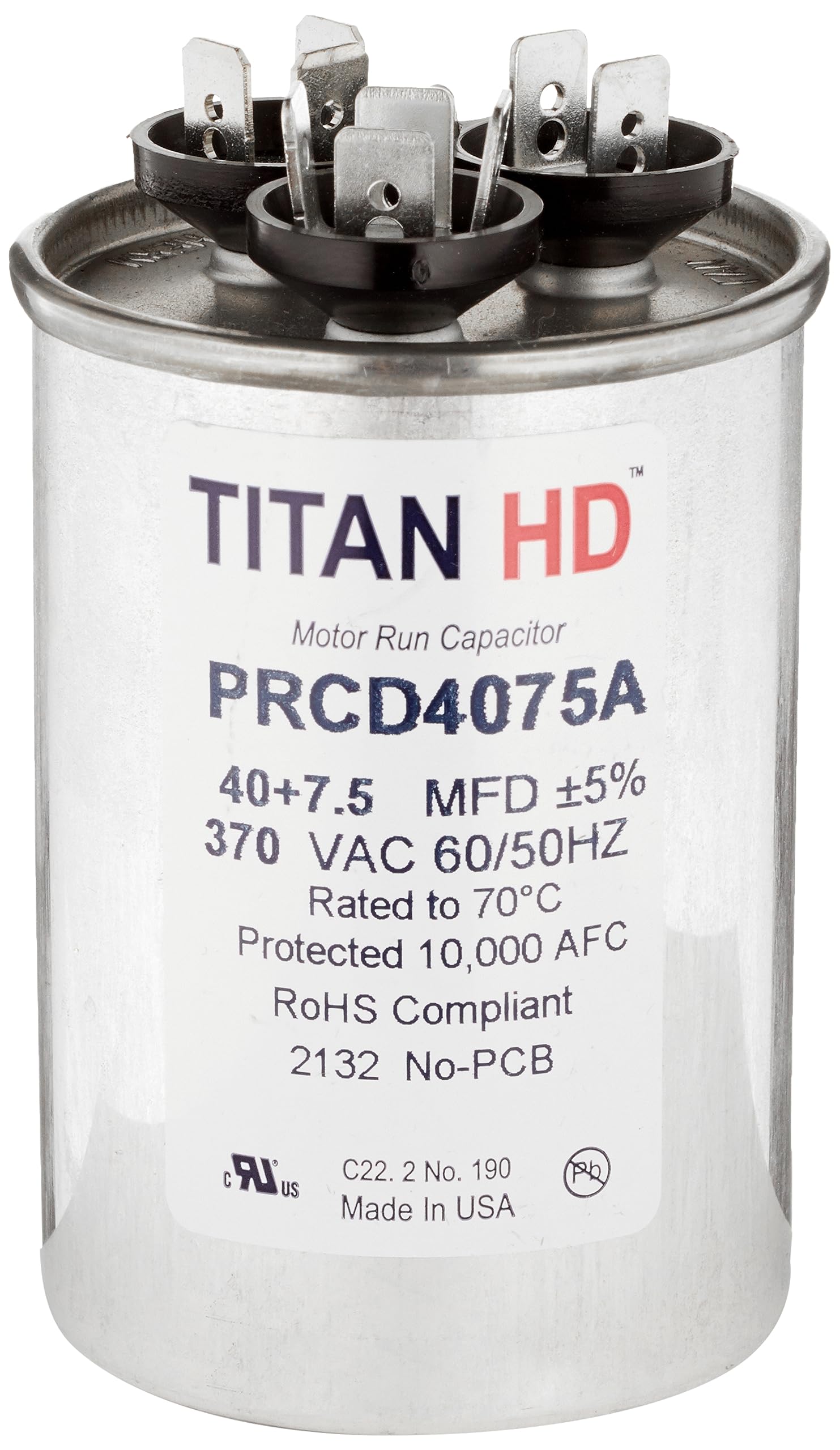

Diversitech PRCD4075A Packard Titan HD 40+7.5Mfd, 370V, Round

Product Description

The DIVERSITECH PRCD4075A is a Packard Titan HD run capacitor designed for electrical applications. This USA-made capacitor offers a substantial 60,000 hours of operating life and meets the EIA-456-A industry standard for performance and quality. It features metalized polypropylene film technology for self-restoration and a UL-approved pressure sensitive interrupter for end-of-life circuit removal. Patented, environmentally-friendly oil prevents corrosion and aids in optimum heat transfer.

• USA-made capacitor with a 60,000-hour operating life.
• Features metalized polypropylene film technology for self-restoration in the event of a breakdown.
• Includes a UL-approved pressure sensitive interrupter and patented, environmentally-friendly oil for corrosion prevention and heat transfer.

Product Highlights

Meets EIA-456-A industry standard and offers 60,000 hours of operating life.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: PRCD4075A
• Country of Origin: USA

Technical Specifications

• Product Type: CAPACITOR
• Capacitor Voltage: 370V
• Run MFD: 40+7.5
• Capacitor Shape: Round
• Can /Case Size: 6
• Diameter (In.): 2
• Hertz: 50/60
• Material: Aluminum Can
• Oil Type: Soybean Based
• Operating Temperature Range: -40 to 70
• Terminals: Standard blade terminals
• Tolerance: +/- 5%
• Depth (inches): 2.13
• Width (inches): 2.13
• Height (inches): 4
• Series: Titan HD
