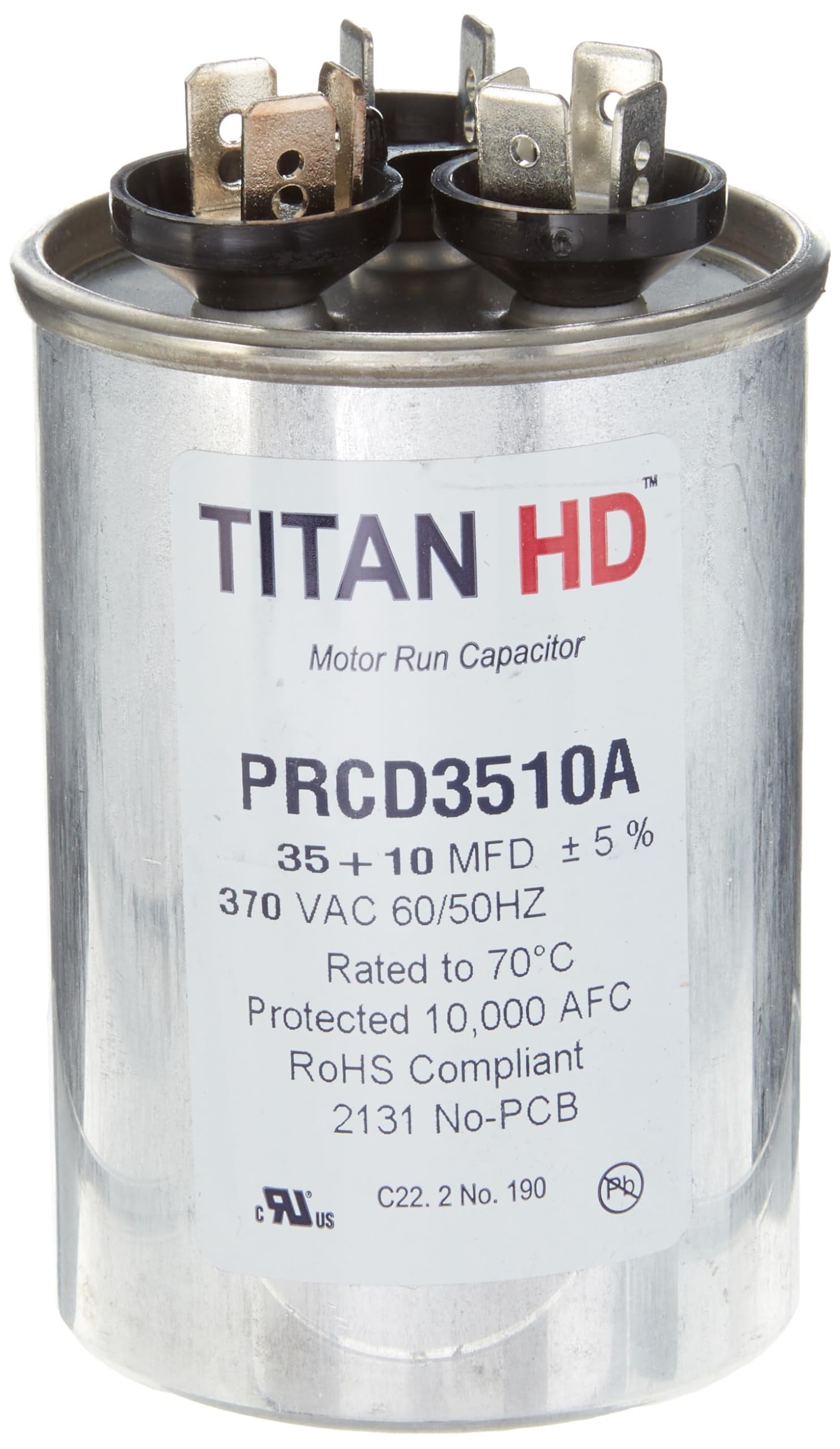

Diversitech PRCD3510A Titan HD Capacitor 370V (35+10 MFD / Round)

Product Description

The DiversiTech PRCD3510A is a Titan HD dual-run capacitor rated 35 + 10 MFD at 370 V for HVAC motor and control circuits. It uses metalized polypropylene film for self-restoration after dielectric breakdown and includes a UL-approved pressure sensitive interrupter for end-of-life disconnection. The capacitor contains a patented soybean-based oil, has standard blade terminals, a 2 in diameter round can (case size 6), +/- 5% tolerance, and an operating range of -40 to 70 C.

• Dual-run capacitor: 35 + 10 MFD at 370 V, +/- 5% tolerance; suitable for 50/60 Hz HVAC applications.
• Metalized polypropylene dielectric with self-restoration, patented soybean-based oil, and UL-approved pressure sensitive interrupter for end-of-life protection.
• Round aluminum can, case size 6, 2 in diameter, standard blade terminals; rated operating life 60,000 hours and operating temperature -40 to 70 C.

Product Highlights

Dual-run HVAC capacitor 35+10 MFD at 370 V; metalized polypropylene; UL-approved interrupter; -40 to 70 C operating range.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: PRCD3510A
• Country of Origin: USA
