Diversitech Pf90501 Transformer 208/240V 24V 40Va Foot Mt Replacement Pf90501

Product Description

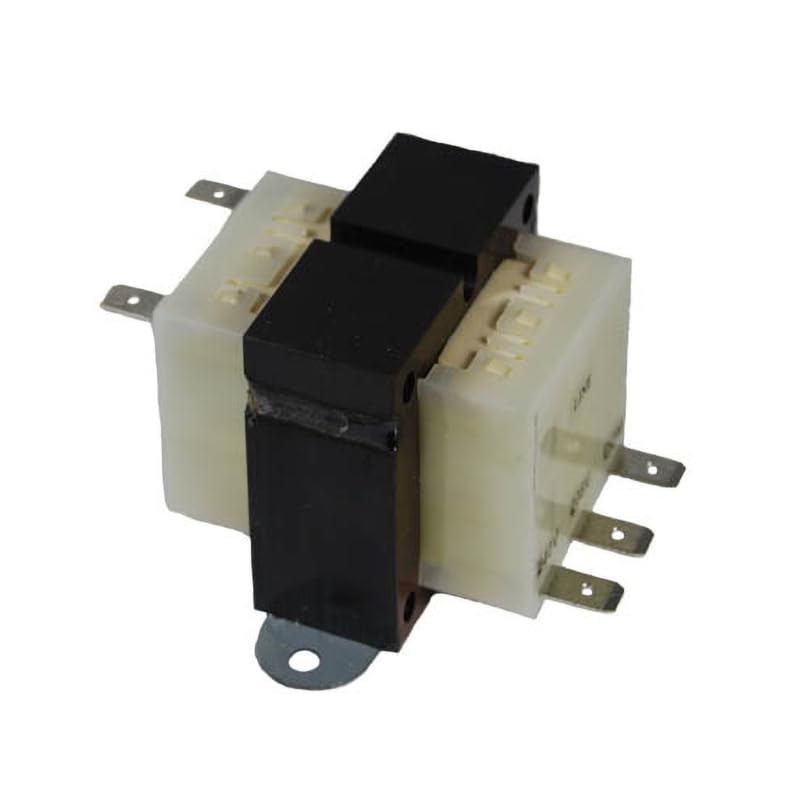

The DIVERSITECH PF90501 is a 208/240V 24V 40VA transformer with foot mounting. It is a direct replacement for Rheem models. This Class 2 / Class F transformer features male terminals with 1/4" quick connect for easy installation. Packard transformers will replace models with equal or lower VA rating.

• Direct Replacement for Rheem
• Foot mount
• Class 2 / Class F

Product Highlights

The DIVERSITECH PF90501 transformer is designed for foot mounting and easy connection with 1/4" quick connect terminals.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: PF90501
• Country of Origin: CHINA

Technical Specifications

• Input Voltage: 208/240
• Mounting Option: Foot
• Output Option: 40VA
• Secondary Rating: 24
• VA Rating: 40VA
• Connection Type: 1/4" QC Term
• Primary Voltage: 208 - 240
• Transformer Mounting Option: Foot
• Mounting: Multi-Foot
• Primary Volts: 208_240
• Primary Depth (inches): 3.8
• Primary Width (inches): 2.6
• Primary Height (inches): 3.4
