Diversitech PAN3050 Plastic Drain Pan 30x50 in 5-pack

Product Description

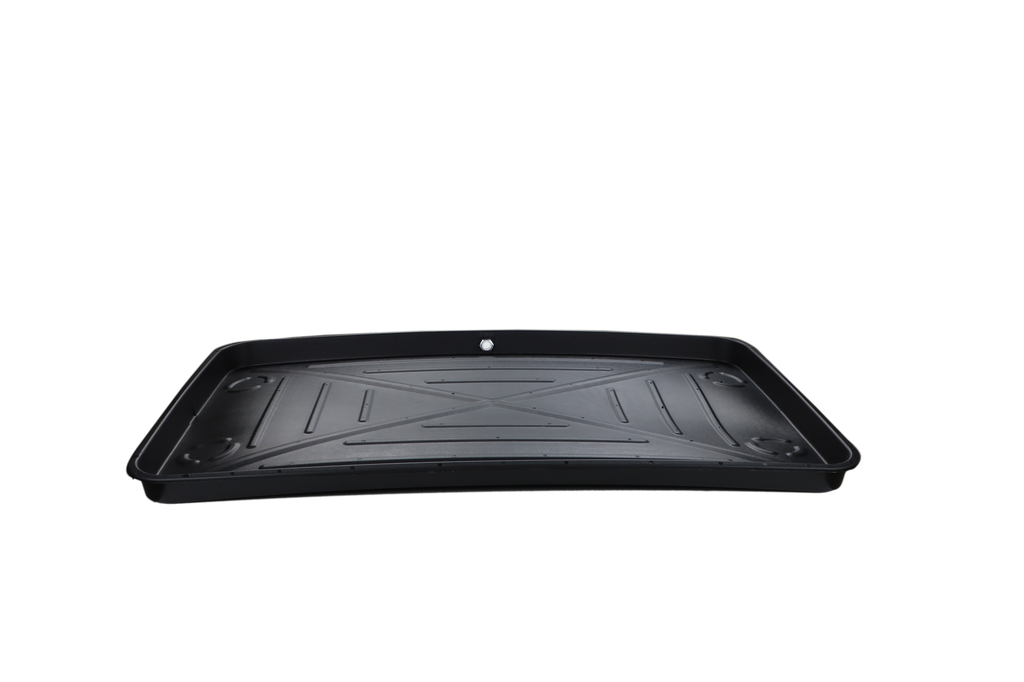

The DIVERSITECH PAN3050 is a plastic condensate drain pan sized at 30 x 50 inches, designed to collect overflow condensate from cooling coils and evaporator coils in HVAC systems. It ships as a 5-pack, making it practical for multi-unit jobs or stocking service vehicles. The pan features rolled edges for durability, a ribbed bottom for structural rigidity, and reinforced corners for added strength. It holds up to 2 inches of water and includes a 3/4 inch PVC drain connection for straightforward condensate routing. HVAC technicians install this pan as a secondary overflow protection measure beneath air handlers and evaporator coil sections.

This drain pan is suited for residential and light commercial HVAC installations where condensate overflow could damage ceilings, floors, or other building components. Typical applications include attic-mounted air handlers, closet-installed evaporator coils, and any system location where secondary overflow containment is required by code or best practice. The 30 x 50 inch footprint accommodates a range of equipment sizes common in split-system and packaged cooling installations. Technicians should verify the equipment footprint and drain outlet placement before installation to confirm fit and proper drainage alignment.

Key Features

• 30 x 50 inch footprint sized for a range of residential and light commercial air handlers
• Holds up to 2 inches of water for secondary overflow containment
• 3/4 inch PVC drain connection for condensate line hookup
• Rolled edges add durability and reduce flex during handling
• Ribbed bottom provides structural rigidity under equipment load
• Reinforced corners resist cracking at high-stress points
• Supplied as a 5-pack for multi-unit jobs or stocking

Compatibility

Designed as an OEM-style replacement and new-installation drain pan for residential and light commercial HVAC evaporator coil and air handler applications requiring secondary condensate overflow protection.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Shut down and lock out the HVAC system before positioning the pan and making any drain line connections. Confirm the pan is level so condensate flows toward the drain outlet and does not pool away from the connection point. Follow local mechanical codes and manufacturer guidelines for secondary drain pan placement and condensate disposal requirements.

Technical Specifications

• Length: 50 inches
• Width: 30 inches
• Water Capacity: 2 inches depth
• Drain Connection: 3/4 inch PVC
• Material: Plastic
• Quantity per Pack: 5

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: PAN3050
