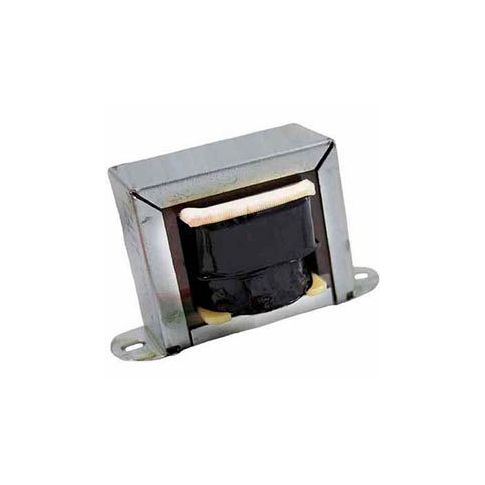

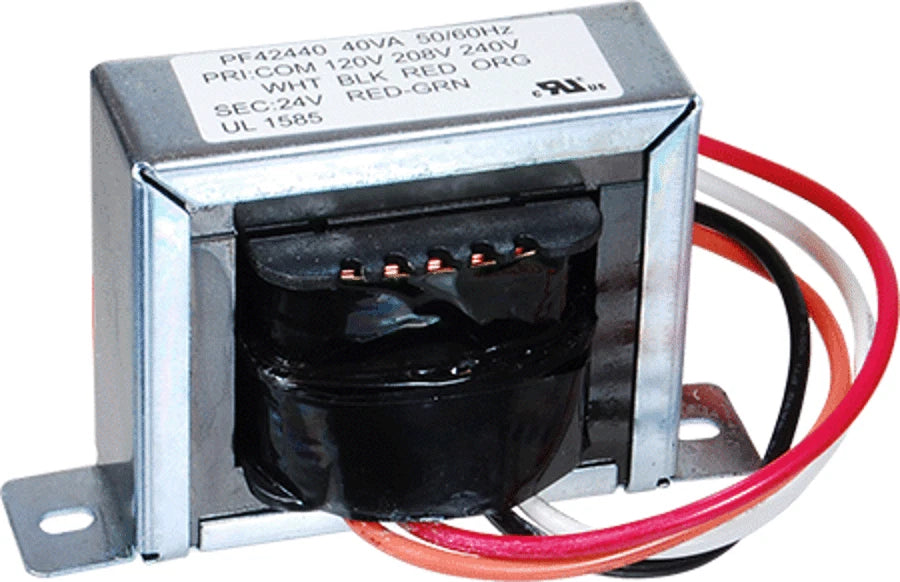

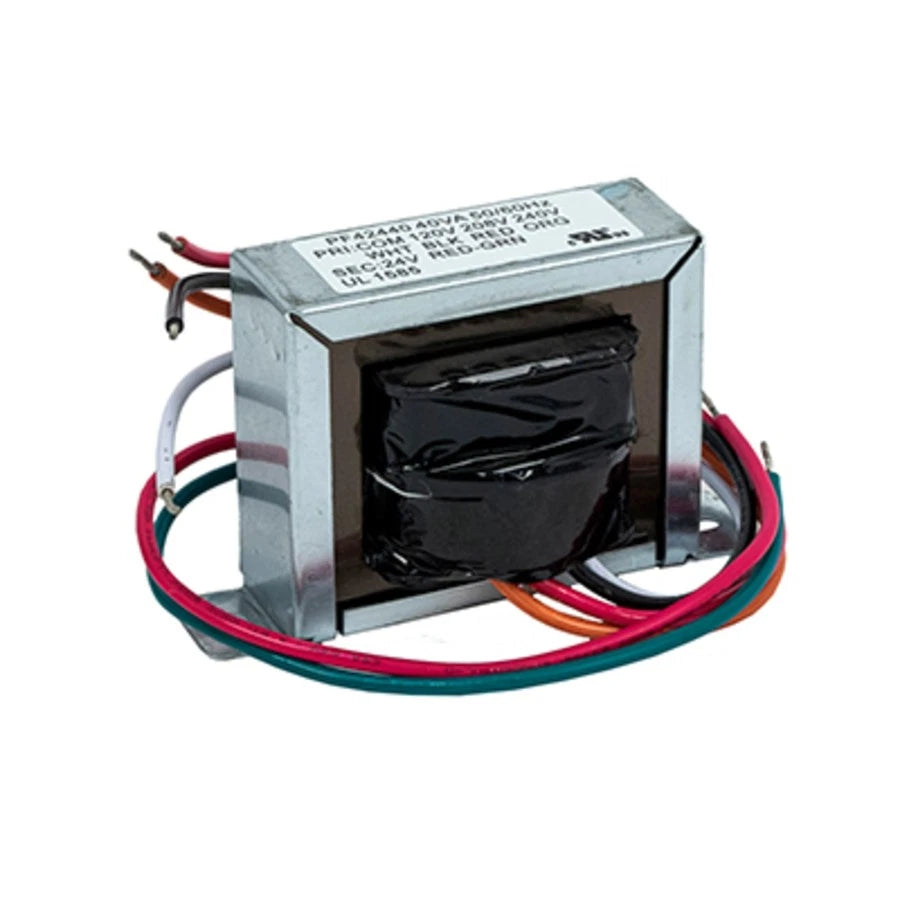

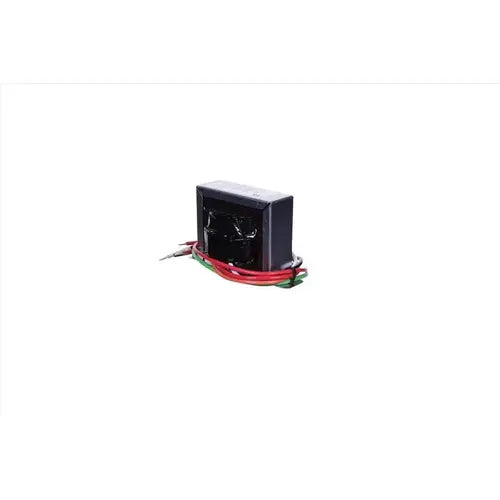

DIVERSITECH PACK-PF42440 Foot Mount Transformer

Product Description

The DIVERSITECH PACK-PF42440 is a foot mount transformer suitable for HVACR applications. It has a primary voltage of one hundred twenty, two hundred eight, and two hundred forty volts, with a secondary voltage of twenty-four volts. This transformer is rated at forty VA and features a wire lead connection type.

• Foot mount design for stable installation
• Multiple primary voltage options: 120/208/240V
• UL and CSA certified for safety and reliability

Product Highlights

The PACK-PF42440 transformer is designed for durability and efficiency in heating, ventilation, and air conditioning systems.

Product Information

Standard Information

• Brand: DIVERSITECH
• Mounting Type: Foot Mount

Technical Specifications

• Primary Voltage: 120/208/240V
• Secondary Voltage: 24V
• VA Rating: 40VA
• Certifications: CSA and UL Approved
• Connection Type: Wire Lead
• Application: HVACR
• Frequency: 50/60Hz
• Material: Steel
• Weight: 1.700 LB
• Connection Length: 8.26 inches
