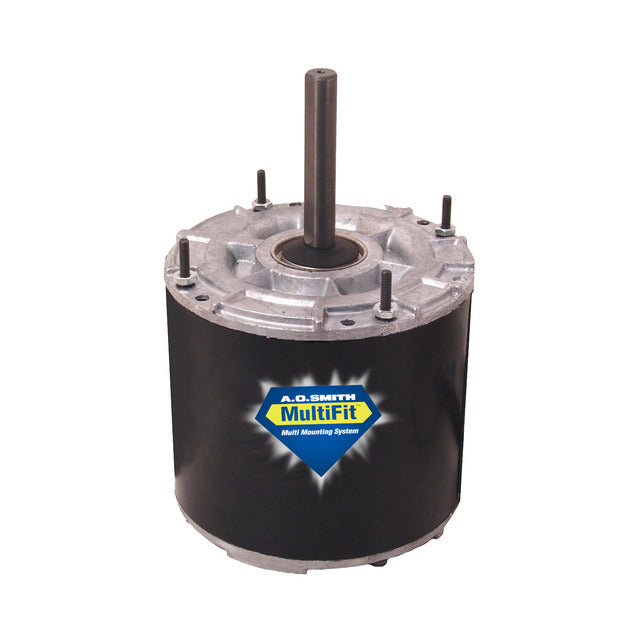

Diversitech pack-9722 Condenser Fan Motor 208-230V 1075 Rpm

Product Description

The DIVERSITECH pack-9722 is a MultiFit condenser fan AC motor designed for use in air conditioning and refrigeration condensing units. Rated from 1/8 to 1/12 horsepower, it operates on 208 to 230 VAC at 60 Hz, single phase, and runs at 1075 RPM. The enclosed enclosure protects internal windings from outdoor elements, making it suited for exterior condensing unit applications. NEMA 42 frame sizing ensures dimensional consistency for replacement installations. HVAC technicians and refrigeration service professionals handle installation of this motor type in residential and light commercial condensing units.

This motor fits condenser fan applications where a NEMA 42 frame, single-phase, 1075 RPM motor is required. It is engineered to handle the continuous-duty demands of outdoor condensing unit fan service across a broad input voltage range of 208 to 230 VAC, accommodating the voltage variation common in residential and light commercial electrical services. The MultiFit design is intended to simplify replacement across multiple OEM applications.

Key Features

• Dual horsepower rating of 1/8 to 1/12 HP for flexible replacement fitment
• 208 to 230 VAC operating range accommodates typical residential and commercial supply voltage
• 1075 RPM output speed matched to standard condenser fan blade requirements
• NEMA 42 frame for dimensional compatibility with OEM mounting configurations
• Enclosed enclosure protects windings from moisture and outdoor contaminants
• Single-phase, 60 Hz operation suits standard North American electrical supply

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial air conditioning condensing units requiring a NEMA 42 frame, single-phase, 1075 RPM motor with a 208 to 230 VAC rating.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor or handling wiring. Verify shaft diameter, rotation direction, and mounting configuration match the application before completing the installation. Refer to local electrical codes and the equipment manufacturer service documentation for wiring and mounting requirements.

Technical Specifications

• Horsepower: 1/8 to 1/12 HP
• Voltage: 208 to 230 VAC
• Frequency: 60 Hz
• Phase: 1 Phase
• Speed: 1075 RPM
• Frame: NEMA 42
• Enclosure: Enclosed
• UNSPSC Code: 26101100

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: pack-9722
