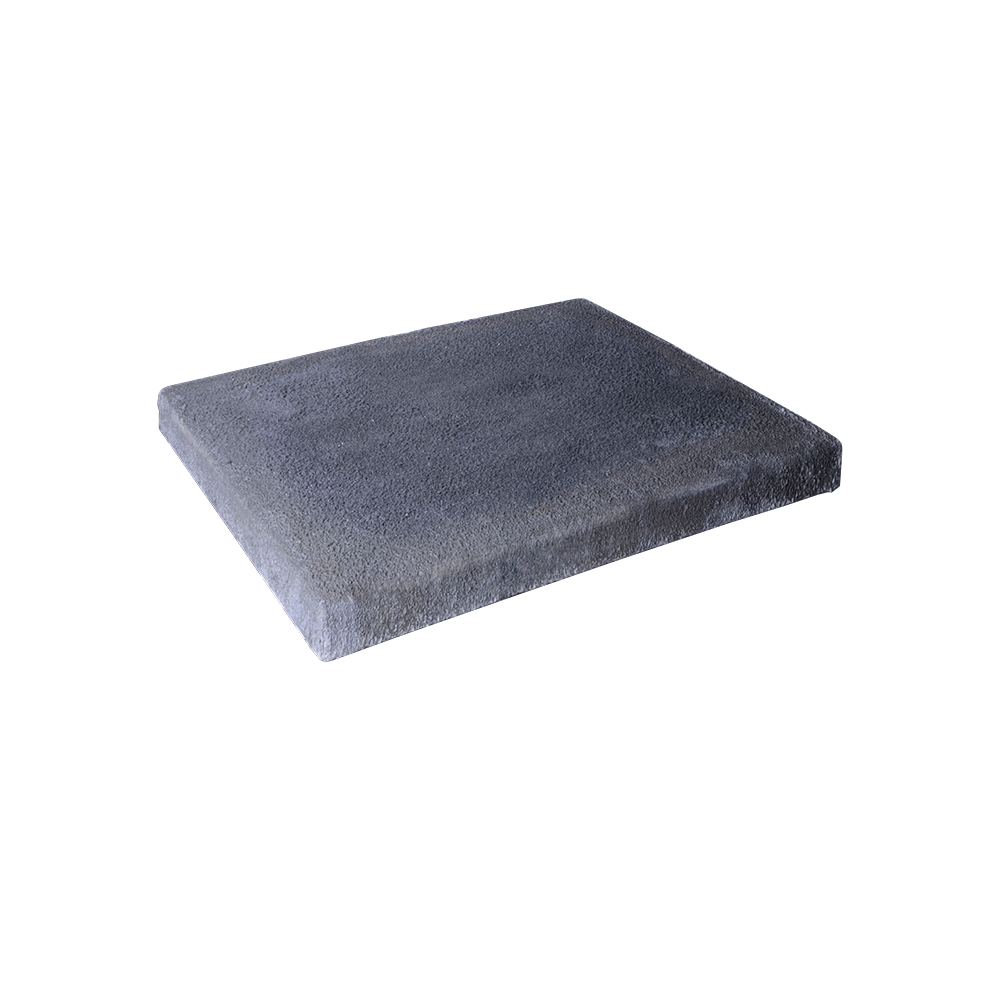

Diversitech P143-U3030 Ultralite Equipment Pad 30x30x3 in

Product Description

The DIVERSITECH P143-U3030 is a gray concrete composite Ultralite equipment pad designed to support and stabilize compact outdoor HVAC and mechanical units. Measuring 30 x 30 x 3 inches and rated for a load capacity of 432 pounds, it provides a firm, level base for condensing units and similar equipment placed on grade or slab surfaces. The lightweight composite construction reduces handling strain compared to traditional poured concrete pads, making it practical for single-technician placement. HVAC installers and service contractors use this pad during new equipment installations and equipment changeouts.

This pad is suited for residential and light commercial applications where a pre-formed, ready-to-place equipment base is needed. It is commonly installed beneath split-system condensing units, heat pump outdoor units, mini-split compressors, and similar mechanical equipment set on ground-level or slightly elevated surfaces. The 30 x 30 inch footprint accommodates a wide range of compact outdoor unit bases, and the 3-inch thickness provides adequate clearance and leveling capability on most grade conditions.

Key Features

• Gray concrete composite Ultralite construction — lighter than traditional concrete for easier single-person handling
• 30 x 30 x 3 inch dimensions provide a stable, level base for compact outdoor units
• 432 lb rated load capacity supports most residential condensing and heat pump units
• Pre-formed design eliminates forming, mixing, and cure time required with poured concrete
• Suitable for ground-level and slab placements in outdoor HVAC installations

Compatibility

Designed as an OEM-style replacement and new-installation equipment pad for residential and light commercial outdoor HVAC and mechanical units with a footprint that fits within a 30 x 30 inch base area and a total operating weight at or below 432 pounds.

Installation Notes

Installation is typically performed by licensed HVAC technicians during equipment installation or replacement. Disconnect and lock out all power to the unit before repositioning or servicing equipment on or near the pad. The installation surface should be graded, compacted, and free of standing water before pad placement to ensure long-term stability and levelness. Verify that the equipment footprint, total operating weight including refrigerant and components, and local clearance codes are compatible with this pad before setting the unit.

Technical Specifications

• Dimensions: 30 x 30 x 3 inches
• Load Capacity: 432 pounds
• Material: Gray Concrete Composite (Ultralite)

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: P143-U3030
