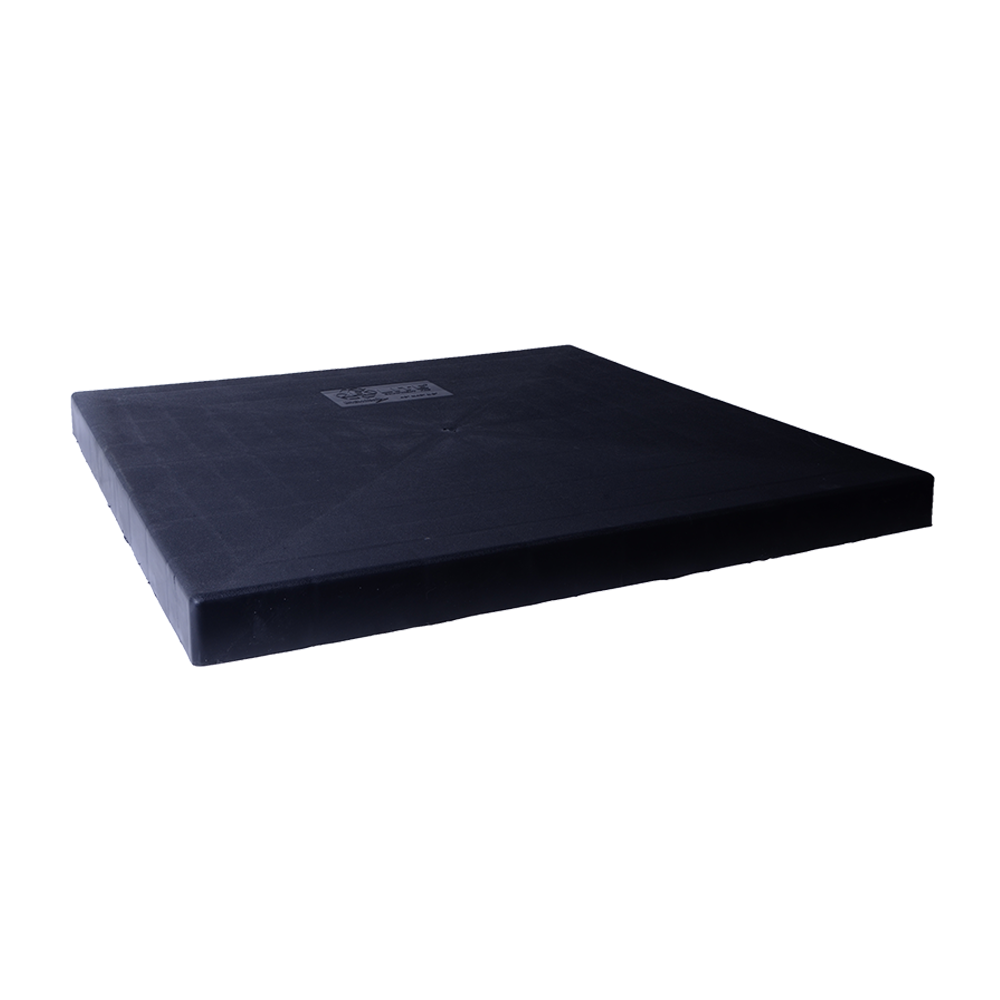

Diversitech P143-E4040 Equipment Pad 40x40x3 in

Product Description

The DIVERSITECH P143-E4040 is a large-format outdoor equipment pad engineered to support HVAC condensing units, heat pumps, and other mechanical equipment at grade level. Constructed from recycled black pearl plastic, it provides a stable, moisture-resistant base measuring 40 x 40 x 3 inches. The eco-friendly material resists rot, cracking, and ground settling that commonly undermine concrete or foam alternatives. HVAC technicians install this pad during new equipment sets or replacements where a durable, ground-contact-resistant support surface is required.

This pad is suited for residential and light commercial applications where condensing units, mini-split outdoor sections, or similarly sized mechanical equipment need elevation above grade. The 40-inch square footprint accommodates a wide range of standard equipment bases, and the 3-inch height provides meaningful clearance to reduce moisture intrusion at the unit base. It is a direct drop-in pad for equipment sets performed by licensed HVAC contractors working on slab-on-grade or landscaped installations.

Key Features

• 40 x 40 x 3 inch footprint provides a large, stable base for full-size condensing units
• Recycled black pearl plastic construction resists rot, cracking, and moisture absorption
• Eco-friendly material composition supports sustainable installation practices
• 3-inch elevation raises equipment above grade to reduce moisture contact at the unit base
• No curing time required unlike concrete pads, allowing immediate equipment placement

Compatibility

Designed as an OEM-style replacement or new-install equipment pad for residential and light commercial HVAC condensing units and outdoor mechanical equipment with a footprint that fits within a 40 x 40 inch base.

Installation Notes

Installation is performed by licensed HVAC technicians or mechanical contractors during equipment set. Verify that the ground surface is level and compacted before placing the pad to prevent future settling or tipping. Ensure the equipment footprint does not exceed the pad dimensions and that the combined load of the unit and refrigerant charge is within the pad's rated capacity. Disconnect and lock out all electrical power to the equipment before performing any service work on a unit already in place.

Technical Specifications

• Length: 40 inches
• Width: 40 inches
• Thickness: 3 inches
• Material: Recycled plastic (Black Pearl)

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: P143-E4040
