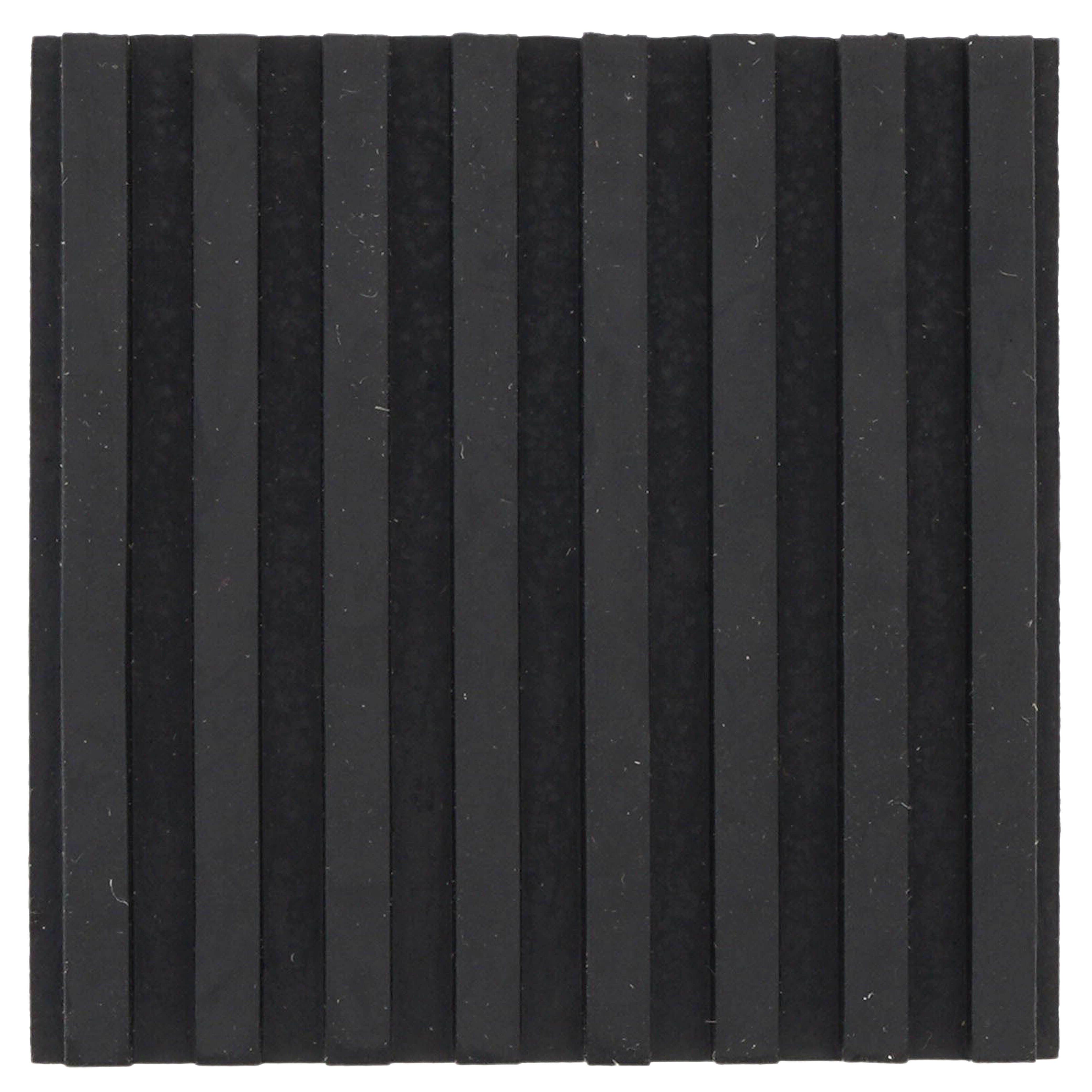

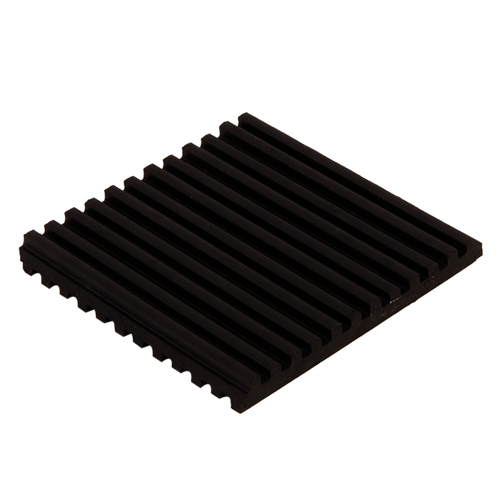

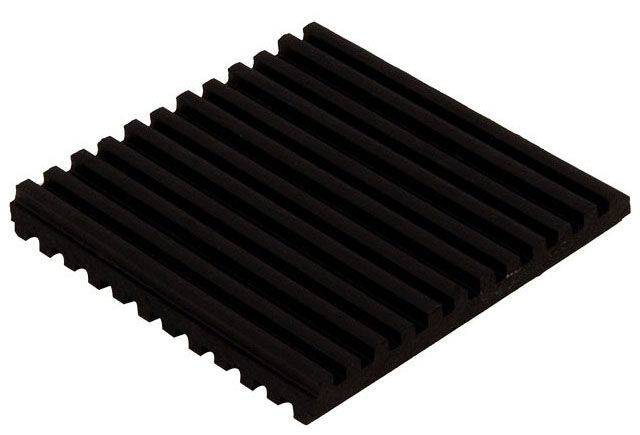

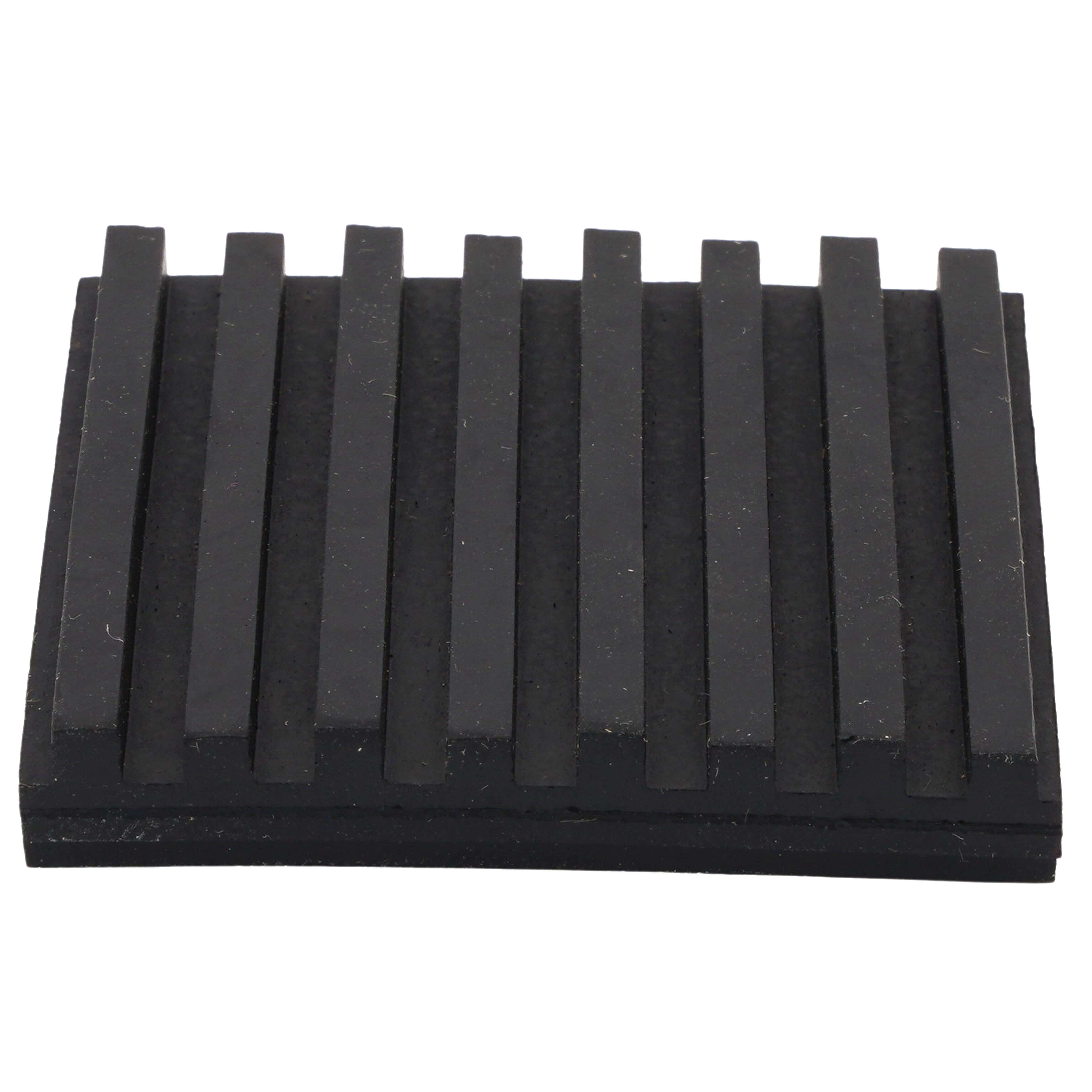

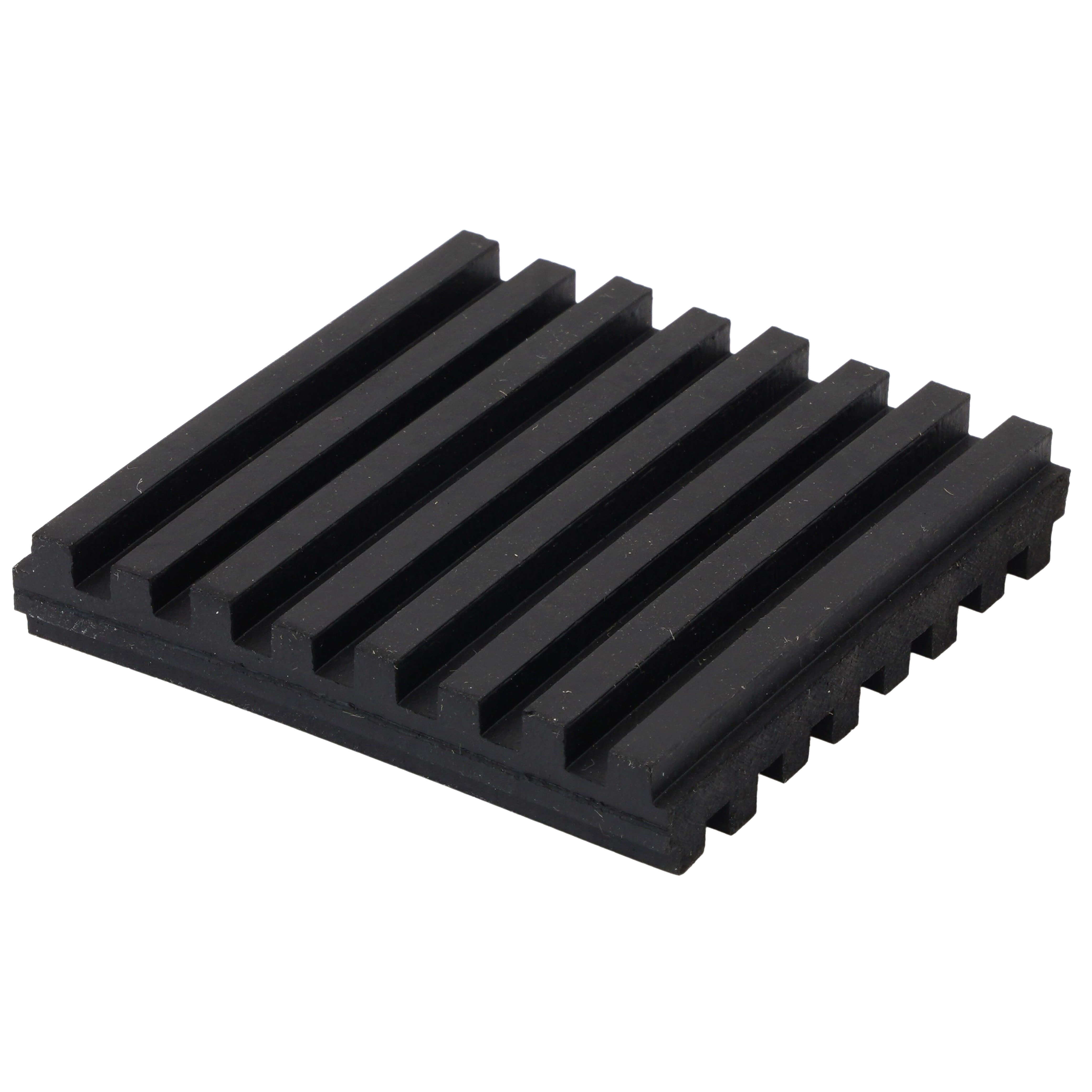

Diversitech mp-2 Rubber Anti-vibration Pad 2x2x3/8 in

Product Description

The DIVERSITECH mp-2 is a solid rubber anti-vibration pad designed to isolate and dampen vibration and noise generated by refrigeration and air conditioning equipment. Measuring 2 inches by 2 inches by 0.375 inches, this pad features a corrugated texture on both sides that grips mounting surfaces to prevent equipment walking or creep during operation. Rated to 50 psi, the mp-2 is built from black rubber with a durometer of 50, giving it the flexibility to absorb vibration without bottoming out under typical equipment loads. HVAC technicians and refrigeration mechanics install these pads as part of routine equipment mounting.

The mp-2 is suited for both indoor and outdoor installations across a wide range of equipment types. Common applications include condensers, compressors, cooling towers, pumps, generators, and motors. The pad works with both ducted and ductless systems, making it a versatile option for residential and commercial HVAC and refrigeration installs where vibration control at the equipment base is required.

Key Features

• Corrugated texture on both sides resists equipment walking and creep caused by vibration
• Rated to 50 psi for reliable load-bearing under typical HVAC and refrigeration equipment
• 50 durometer rubber balances firmness and vibration absorption
• Suitable for indoor and outdoor use in both ducted and ductless applications
• Compatible with condensers, compressors, cooling towers, pumps, generators, and motors

Compatibility

Designed as an OEM-style vibration isolation pad for use under condensers, compressors, cooling towers, pumps, generators, motors, and similar equipment in residential and commercial HVAC and refrigeration applications.

Installation Notes

Installation is typically performed by licensed HVAC technicians or refrigeration mechanics during equipment placement or replacement. Power down and de-energize all equipment before repositioning or sliding pads into place. Pads should be positioned under each corner or mounting foot of the equipment to distribute load evenly. Verify the pad rating is not exceeded by the equipment weight distributed across the contact area.

Technical Specifications

• Size: 2 inches x 2 inches x 0.375 inches
• Material: Rubber
• Color: Black
• Texture: Ribbed, Corrugated
• Durometer: 50
• PSI Rating: 50 psi
• Indoor / Outdoor Use: Indoor and Outdoor
• Ducted or Ductless: Both Ducted and Ductless
• Application: Condensers, Compressors, Cooling Towers, Pumps, Generators, Motors

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: mp-2
