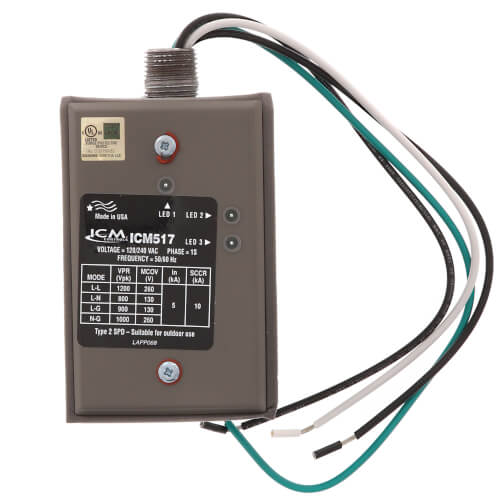

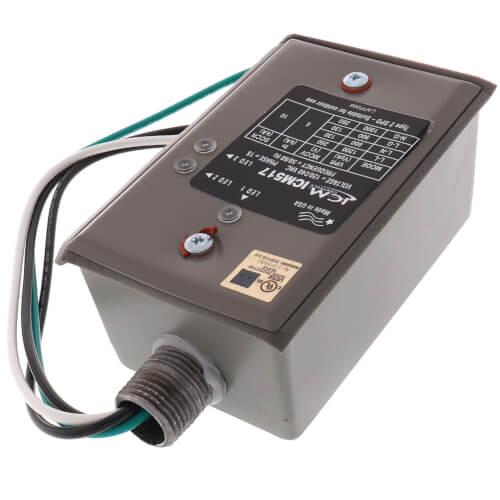

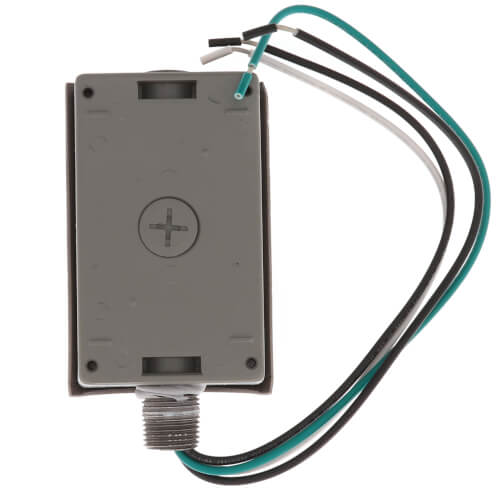

Diversitech ICM517 Single Phase Surge Protective Device w/ Metal, Nema Type 3r Enclosure

Product Description

The Diversitech ICM517 is a single phase surge protective device designed with a robust metal structure and a NEMA Type 3R enclosure. This UL Listed Type 2 device ensures comprehensive surge protection for various systems including refrigeration, motors, air conditioning units, and sensitive electronics.

• UL Listed Type 2 device for reliability
• Metal enclosure for durability and outdoor use
• LED status indicators for easy monitoring

Product Highlights

Installed indoors or outdoors, the ICM517 offers versatility and dependable surge protection for commercial and residential applications.

Product Information

Standard Information

• Device Type: Surge Protector
• Condition: New

Technical Specifications

• Voltage: 120/240V
• Max Surge Current: 100000 amps
• Max Energy Dissipation: 1020 Joules
• Installation Point: Electrical Disconnect, Electrical Panel
• AC Protection Modes: Line-line, Line-ground, Line-neutral, Neutral-ground
• Nominal Discharge Current: 10000 Amps
• Short Circuit Current Rating: 20000 Amps
• Product Height: 4.5 inches
• Product Width: 4.25 inches
• Product Depth: 2 inches
• Parts Warranty: 3 Years
• Service Voltage: 120/240 volt, single phase
• Conduit Connection: 3/4 inches
