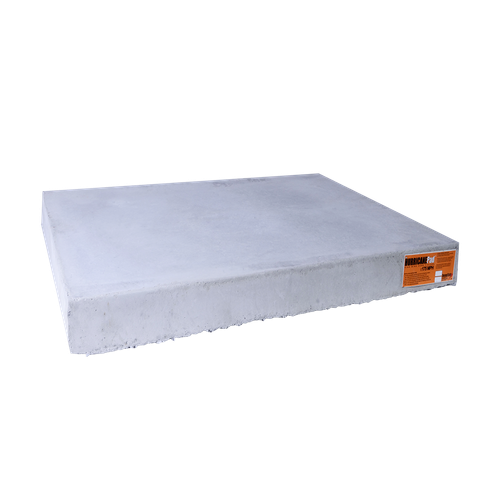

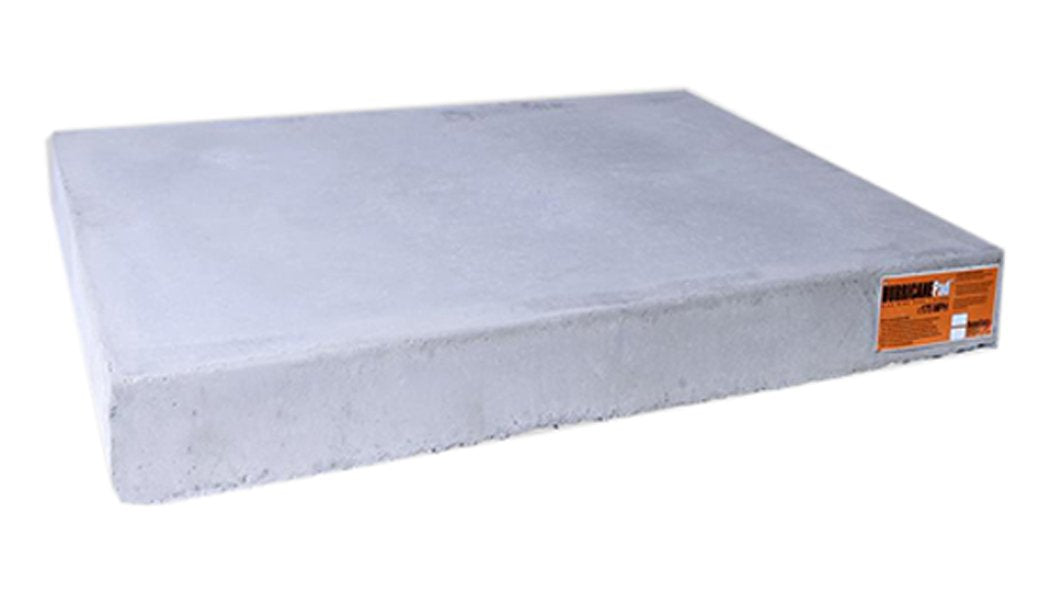

Diversitech HT4040-4 Hurricane T Class Pad 40 inches x 40 inches x 4 inches

Product Description

The Diversitech HT4040-4 Hurricane T Class Pad, size 40" x 40" x 4", is designed to meet the higher wind loads of taller equipment. These heavier 4" pads provide sufficient weight to meet code for taller condensing units. It is made from 7000 PSI concrete with steel reinforcement for added strength and stability.

• Heavier than The Hurricane Pad
• Designed to meet the higher wind loads of taller equipment
• These heavier 4” pads provide sufficient weight to meet code for these taller condensing units

Product Highlights

The Hurricane T-Class Pad is engineered to withstand wind speeds up to 175 MPH and uses standard Tapcon screws for secure attachment.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: HT4040-4
• Country of Origin: USA

Technical Specifications

• Brand: Diversitech
• Model / MPN: HT4040-4
• MPN: HT4040-4
• Part ID / MPN: HT4040-4
• Product Type: MECHANICAL_COMPONENTS
• Product Group: BISS
• Number of Items: 1.0
• Application: Condensers_Heat Pump
• Drillable: Yes
• Load Capacity: 1632 lb.
• Material: Lightweight Concrete
• Nestable: No
• Rating: Wind_Hurricane_UV Resistant
• Shape: Square
• Texture: Smooth
• Product Length: 40 in.
• Product Width: 40 in.
• Ducted or Ductless: Ducted
• Product Height: 4 in.
• Primary Depth (inches): 40
• Primary Width (inches): 40
• Primary Height (inches): 4
• Length (In.): 40.00
• Width (In.): 40.00
• Height (In.): 4.00
