Diversitech HP3636 Heat Pump Pad 36x36x8 Inches

Product Description

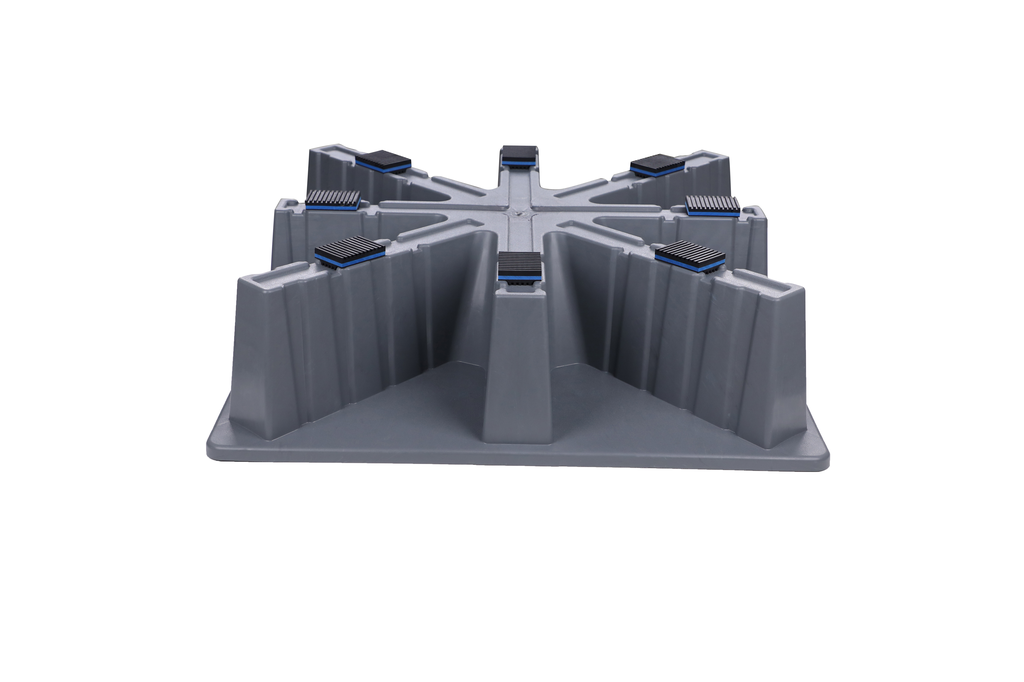

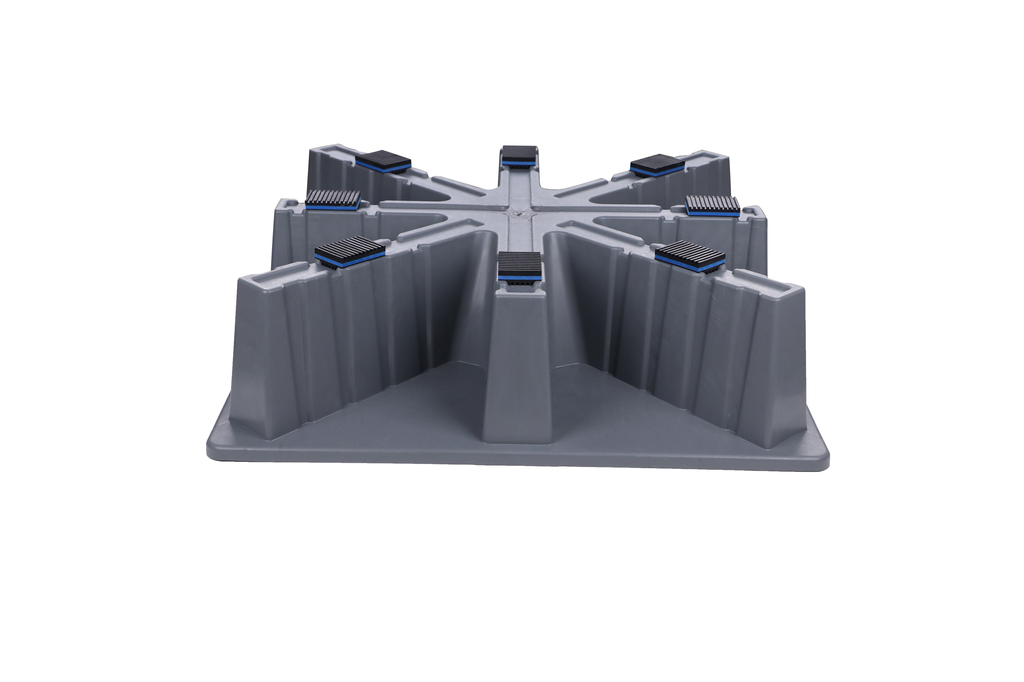

The DIVERSITECH HP3636 is a heavy-duty star-shaped polymer equipment pad designed to provide a stable, elevated base for outdoor heat pump and air conditioner condenser units. With a 36 x 36 inch footprint and 8 inch thickness, this molded pad keeps equipment level, promotes water drainage beneath the unit, and resists settling or tilting over time. The star-shaped rib design distributes load evenly across the ground surface. HVAC technicians rely on this pad as a standard part of outdoor unit installation to meet equipment manufacturer mounting requirements and local code expectations.

This pad is suited for residential and light commercial outdoor HVAC applications where a ground-level base is required for heat pumps and condenser units. The 36 x 36 inch surface accommodates a wide range of standard residential split-system and heat pump outdoor units. It is installed on prepared, level ground prior to setting the outdoor unit and connecting refrigerant lines and electrical service.

Key Features

• 36 x 36 inch footprint accommodates standard residential outdoor HVAC units
• 8 inch thickness elevates equipment above grade to improve drainage and airflow clearance
• Star-shaped molded rib design distributes equipment load and resists ground settling
• Heavy-duty molded polymer construction resists moisture, insects, and ground movement
• No tools required for placement — sets directly on prepared, level ground

Compatibility

Designed as an OEM-style equipment pad for standard residential and light commercial outdoor heat pump and condenser units requiring a 36 x 36 inch base pad.

Installation Notes

Installation is typically performed by a licensed HVAC technician as part of an outdoor unit placement. The pad should be placed on firm, level ground or compacted gravel before the outdoor unit is set. Verify the equipment footprint and total operating weight against pad dimensions and ground conditions prior to installation. Disconnect and lock out all electrical power to the system before any service work is performed on the connected unit.

Technical Specifications

• Footprint: 36 x 36 inches
• Thickness: 8 inches
• Shape: Star-Shaped
• Material: Molded Polymer

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: HP3636
