Diversitech HP3636-8 Heat Pump Pad (36 x 36 x 8)

Product Description

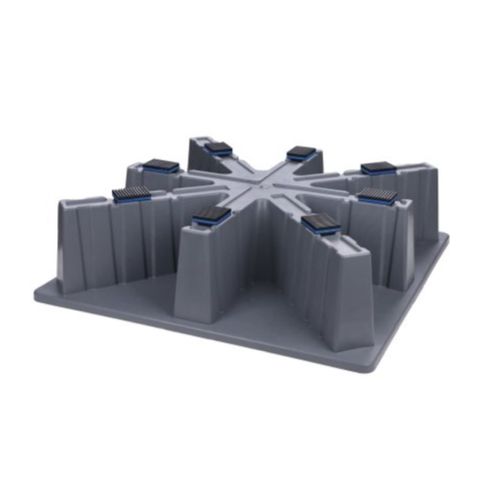

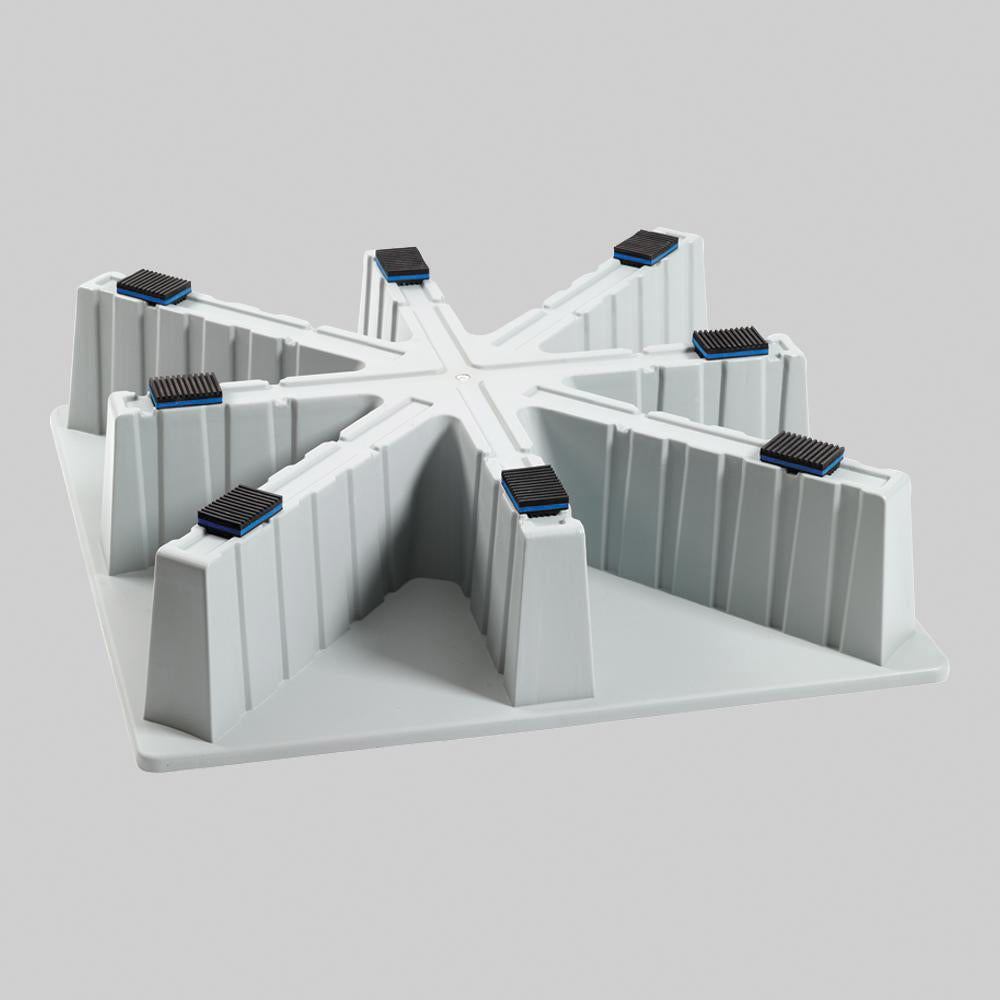

The Diversitech HP3636-8 is an 8-inch elevated, single-piece heat pump pad that provides a 36 x 36 x 8 in footprint and raises outdoor HVAC equipment above snow and standing water. The injection-molded recycled polypropylene pad uses an integral star pattern of risers to accommodate different equipment footprints and includes guide slots for eight adjustable anti-vibration pads. The base is sloped for condensate drainage; the pad is nestable, drillable, and UV resistant.

• Single-piece construction with star-pattern integral risers to fit equipment footprints up to 36 x 36 in
• Includes eight adjustable anti-vibration pads and a sloped base for condensate/defrost drainage
• Molded from recycled polypropylene; nestable, drillable, and UV resistant for outdoor use

Product Highlights

Provides 8 in elevation for heat pump/condenser equipment; recycled polypropylene construction; supports up to 389 lb.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: HP3636-8
• Country of Origin: USA

Technical Specifications

• Brand: Diversitech
• Manufacturer Part Number: HP3636-8
• Product Type: Condenser pad / Heat pump pad
• Material: Recycled polypropylene (plastic)
• Dimensions: 36 x 36 x 8 in (L x W x H)
• Length: 36 in
• Width: 36 in
• Height: 8 in
• Product Weight: 18 lb
• Maximum Supported Weight: 389 lb
• Anti-vibration Pads Included: 8 adjustable anti-vibration pads
• Nestable: Yes
• Drillable: Yes
• UV Resistant: Yes
• Shape: Square
• Suitable For Use With: Heat pump equipment, condensers
• Country of Origin: United States
• Certifications: PROP65
• Patent: US Patent 7,891,635
• UPC: 095247087068
