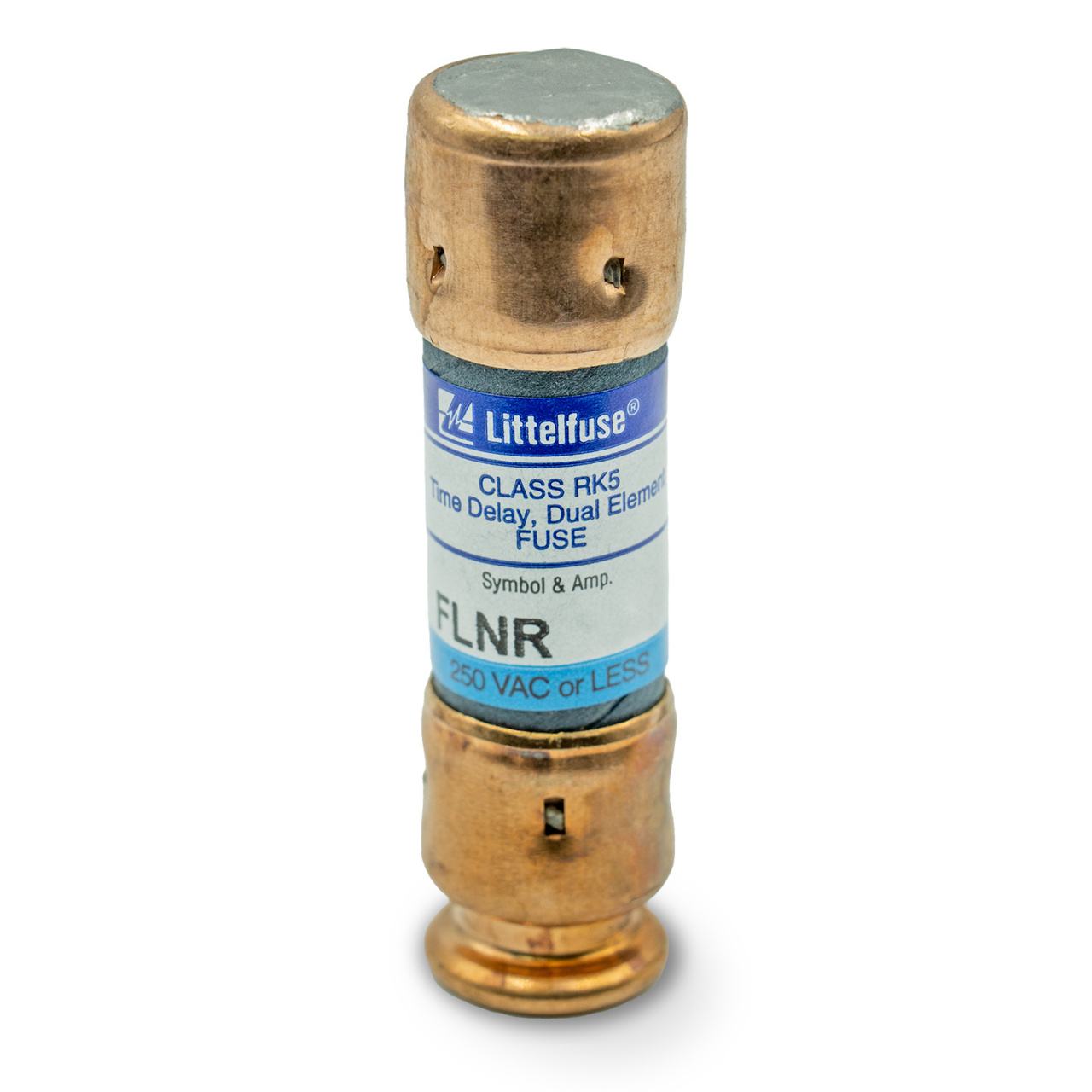

Diversitech FLNR010T Time delay fuse 10 Amp (2 inches x 9/16 inches)

Product Description

DiversiTech FLNR010T is a time-delay (slow-blow) RK5 cartridge fuse designed for overcurrent protection in electrical systems. The FLNR010T measures 2" long by 9/16" diameter and is rated 10 A at 250 VAC (also rated 125 VDC in some listings). It uses a dual-element, time-delay design suited for circuits with motors and other inductive loads and is available in a non-indicating cylindrical cartridge format.

• Time-delay (dual-element) RK5 class cartridge fuse for motor and inductive load protection
• Electrical ratings: 10 A; 250 VAC, 125 VDC; interrupting capacity up to 200 kA AC / 20 kA DC
• Form factor: cylindrical cartridge, 2" length x 9/16" diameter; ferrule terminal; non-indicating

Product Highlights

Class RK5 dual-element time-delay fuse, 10 A, 250 VAC / 125 VDC, 2" x 9/16"

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: FLNR010T

Technical Specifications

• Brand: DiversiTech
• MPN: FLNR010T
• Type: Time delay fuse
• Class: RK5
• Amperage Rating: 10 A
• Voltage Rating: 250 VAC, 125 VDC
• Element Type: Dual element (time-delay)
• Body Type: Cylindrical, cartridge
• Length: 2"
• Diameter: 9/16"
• Interrupting Capacity: 200 kA (AC), 20 kA (DC)
• Response Time: Time-delay
• Indicating/Non-Indicating: Non-indicating
• Terminal Type: Ferrule
• Mounting Type: Fuse block, clip mount, holder mount
• Series: FLNR Series
• Part Number Reference: 387059
• Certifications: UL Listed, CSA Certified
• Frequency Rating: 50 Hz, 60 Hz
