Diversitech F-HF-320 H-Frame Kit with 12.5 in. Foot

Product Description

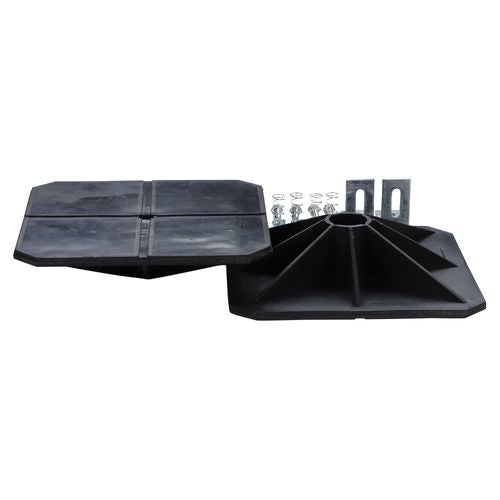

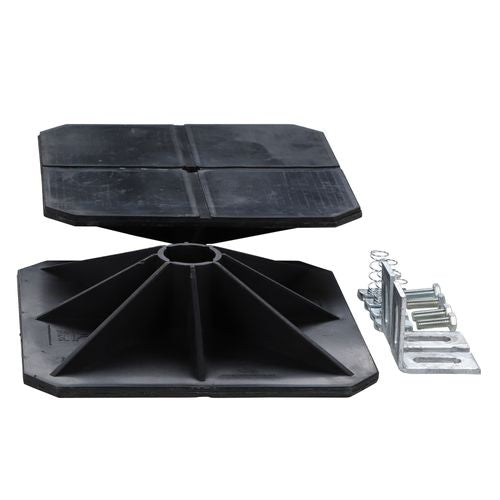

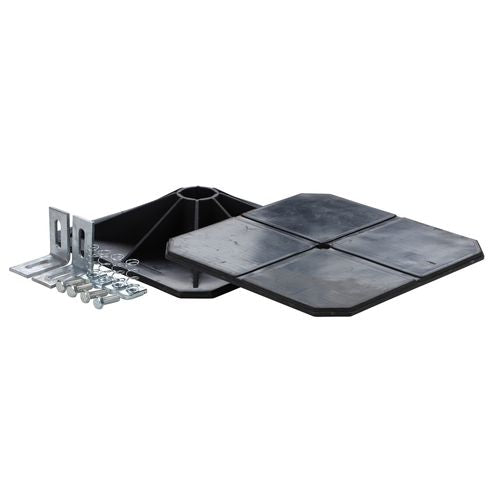

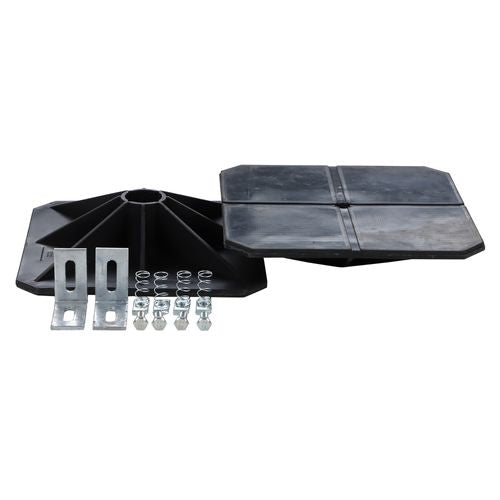

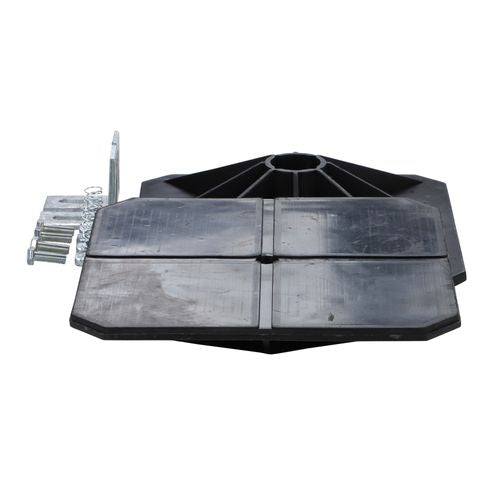

The Diversitech H-Frame Kit F-HF-320 includes a twelve point five-inch foot, designed for supporting ducts, pipes, and electrical containment systems. The kit allows installers to utilize their own strut to adapt to specific project needs.

• Includes two twelve point five-inch square feet and hot-dip galvanized angle brackets.
• Supports loads up to five hundred fifty pounds.
• Non-penetrative mounting method.

Product Highlights

This H-frame kit is suitable for various applications including the support of ductwork, pipework, and cable trays. Strut is not included in the kit but can be sourced separately for customized installations.

Product Information

Standard Information

• Manufacturer: Diversitech Corporation
• Country of Origin: China

Technical Specifications

• Application: Ductwork support, cable tray support, cable ladder support, pipe support
• Load Capacity: 550 lb.
• Size: 12.5 in. x 12.5 in.
• Mounting Method: Non-penetrative support
• Each Depth: 13.35 in.
• Each Height: 7.30 in.
• Each Weight: 9.20 lb.
• Each Width: 13.20 in.
