Diversitech ED494 Metal Bat Handle Switch DPDT On-Off-On

Product Description

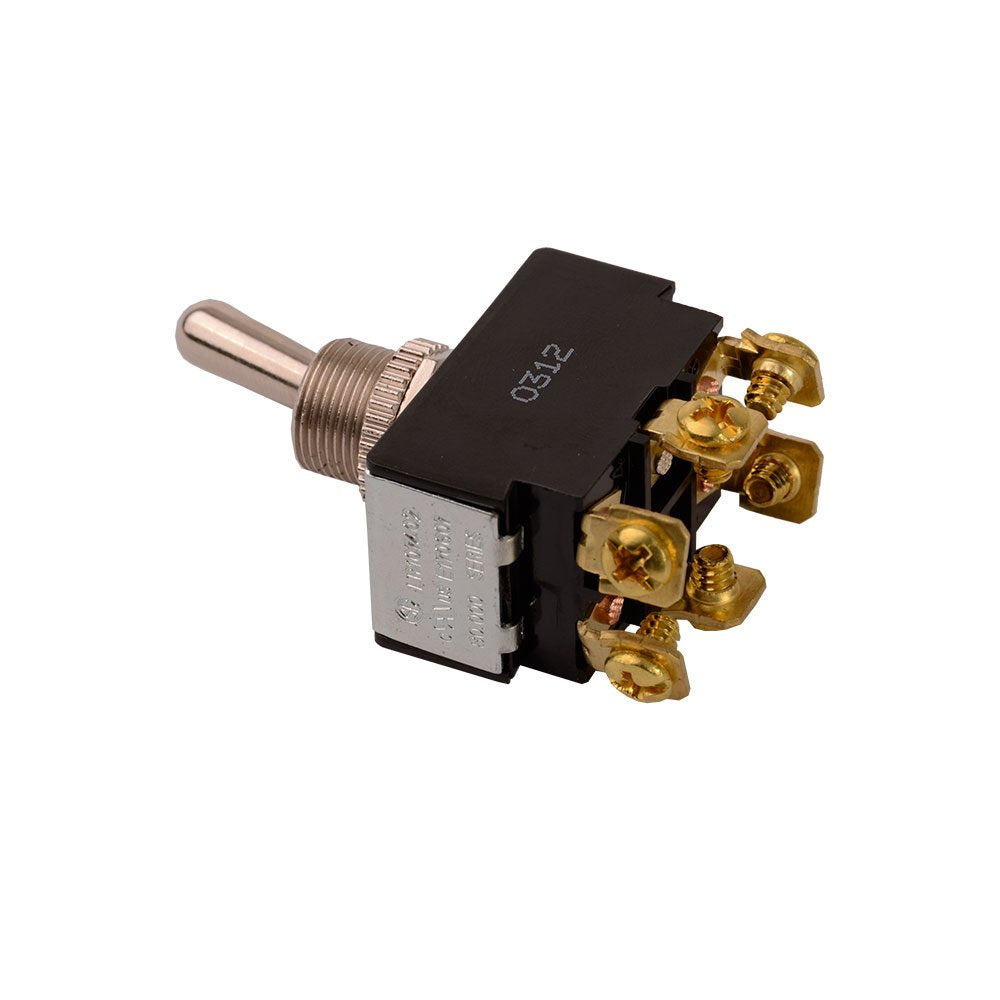

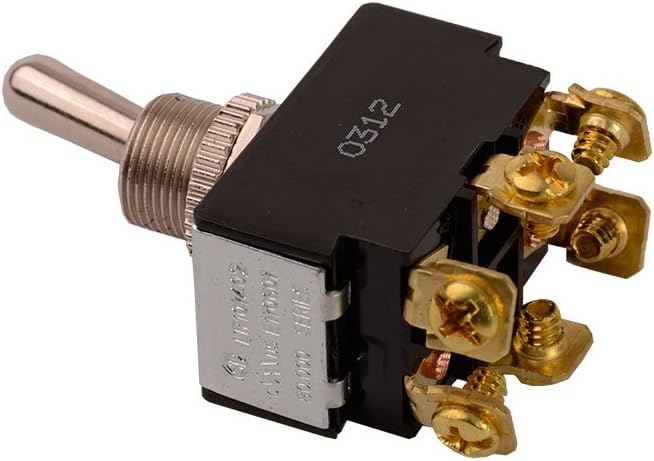

The DIVERSITECH ED494 metal bat handle switch is a DPDT (Double Pole Double Throw) switch with an On-Off-On sequence. This heavy-duty toggle switch is UL approved and features screw terminals. It is designed for durability and ease of installation. Commonly used for HVAC, plumbing, and industrial applications.

• Heavy Duty
• Bat Handle
• DPDT Contact Configuration
• UL Approved

Product Highlights

The DIVERSITECH ED494 is a durable and easy-to-install metal bat handle switch suitable for various applications.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: ED494
• Country of Origin: United States

Technical Specifications

• MPN: ED494
• Brand: DIVERSITECH
• Part #: ed494
• UOM: EA
• Height: 0.75
• Length: 5.25
• Width: 3.0
• Type: Heavy Duty, Bat Handle
• Voltage Rating: 125 to 250 Volt AC
• Current Rating: 10 Amp at 277 Volt AC, 20 Amp at 125 Volt AC
• Operation Type: Maintained On/Maintained Off/Maintained On
• Contact Configuration: DPDT
• Toggle Material: Metal
• Terminal Type: Screw
• Body Material: Phenolic Plastic
• Approval: UL
• Material: Brass (Terminal), Steel/Zinc Chromate (Frame and Support), Brass/Bright Nickel (External Parts)
• Power Rating: 1-1/2 HP
• Terminal: Dpdt
• Contact Material: Metal
• Insulation Resistance: 100 Megaohms
• Manufacturer: Diversitech
• UPC: 780653021866
• Switch Type: DPDT
• Switch Style: DPDT, Metal
• Number of Poles: 2
• Actuator Type: Bat
• Amperage Rating: 10 to 20 A
• Action Type: On-Off
