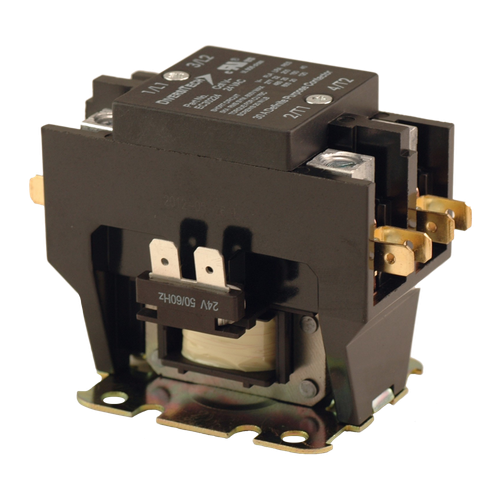

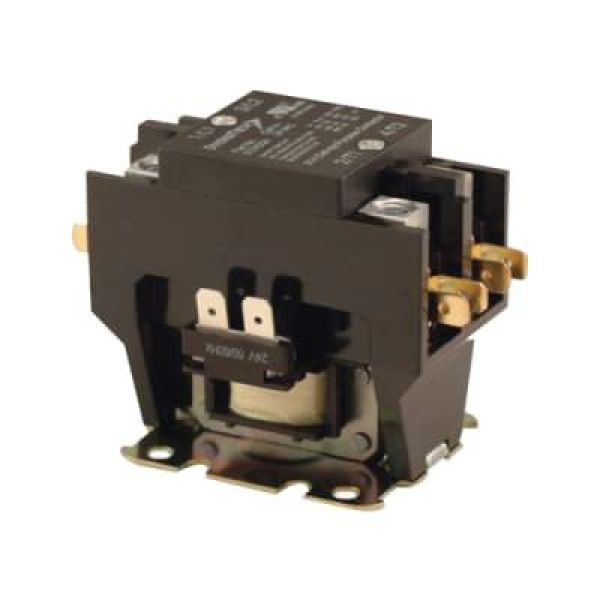

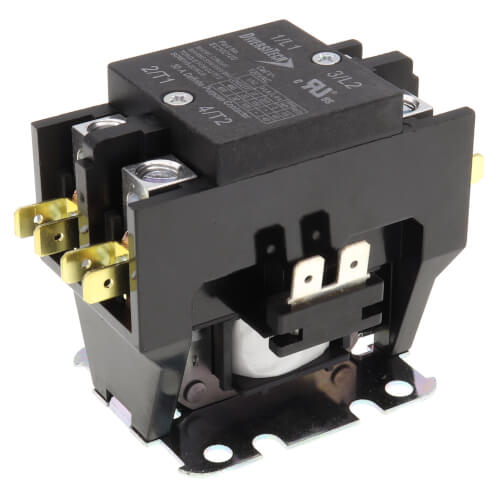

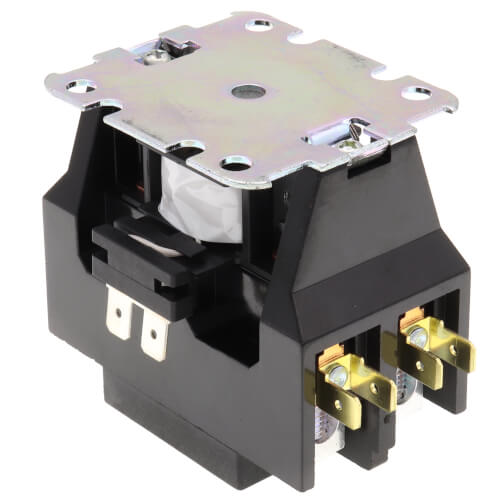

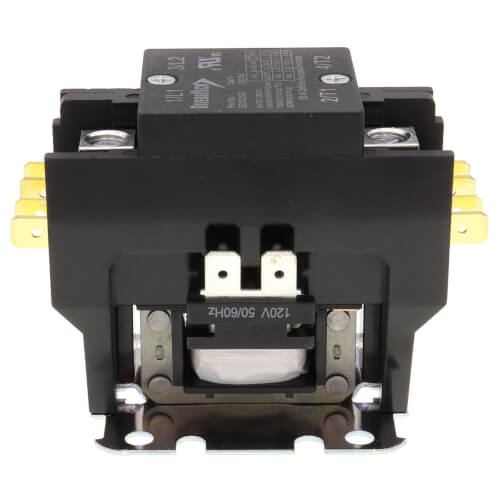

Diversitech EC302120 2 Pole Small Frame Definite Purpose Contactor 30 Amp

Product Description

The DiversiTech EC302120 is a two pole small frame definite purpose contactor designed for use in heating, air conditioning, refrigeration, data processing, and food service equipment. This unit operates with a voltage of one hundred twenty volts and a current rating of thirty amps, making it suitable for various applications. Installation is quick and easy, thanks to the quick connect terminals.

• Two pole design
• Quick connect terminals for easy wiring
• Cost effective and easy to install

Product Highlights

This contactor is ideal for HVAC applications and is cULus listed for safety and reliability.

Product Information

Standard Information

• Brand: Diversitech
• Type: Definite Purpose Contactor

Technical Specifications

• Voltage: 120 V
• Amperage: 30 A
• Poles: 2
• Dimensions: 4.53 inches x 3.11 inches x 2.66 inches
• Coil Voltage: 120 V
• Number of Phases: 1
• Frame Type: Small
• Mounting Type: Foot Mount
