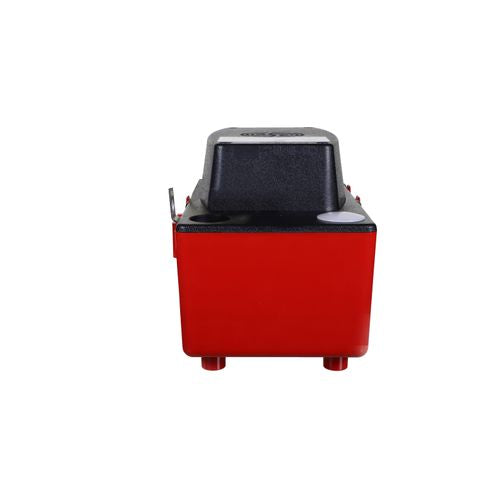

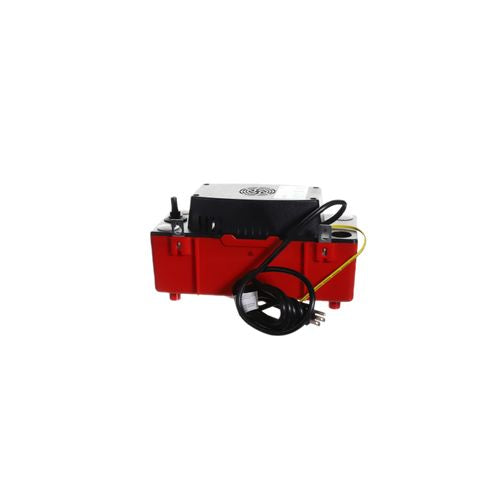

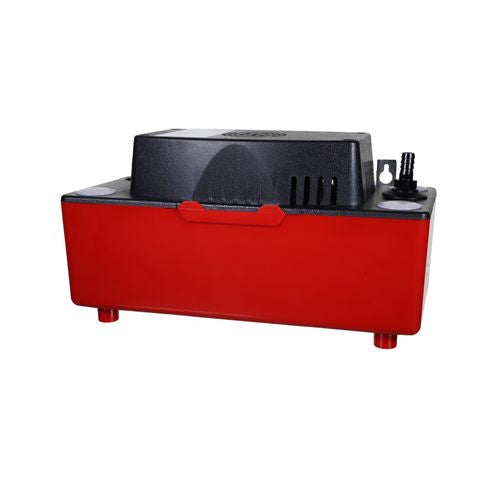

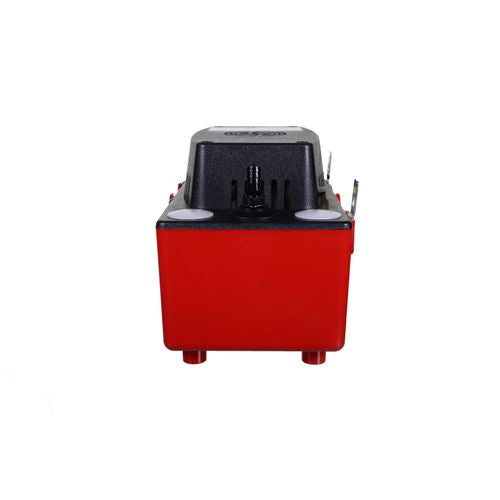

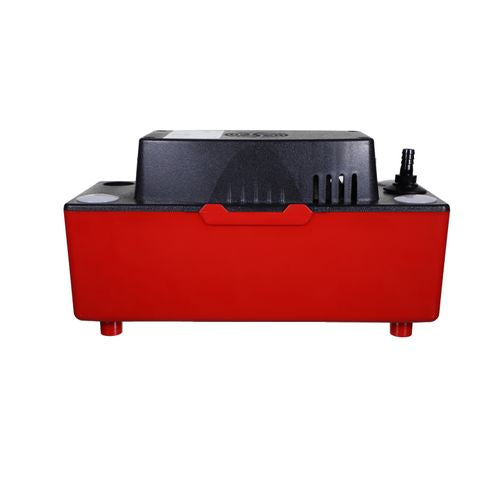

DIVERSITECH DT-PROCP-22S PRO Series 120V Condensate Pump - 22 ft Lift

Product Description

The DIVERSITECH DT-PROCP-22S is a condensate pump designed for HVAC/R and general purpose use. This unit operates at 120 Volts and features a 1/30 horsepower motor that draws 1.9 Amps at 60 Hertz. It offers a maximum flow rate of 132 gallons per hour, making it suitable for effective drainage. The pump can lift condensate to a maximum height of 22 feet, and at a 10-foot lift, it delivers a flow rate of 108 gallons per hour.

• Integrated with a safety overflow switch.
• Handles condensate temperatures up to 160 degrees Fahrenheit.
• Includes four inlet holes for flexible installation options.

Product Highlights

The DIVERSITECH DT-PROCP-22S is built for reliable performance in ducted systems while ensuring safety and efficiency in operation.

Product Information

Standard Information

• Brand: DIVERSITECH
• UPC: 0095247173020

Technical Specifications

• MPN: DT-PROCP-22S
• Volts: 115
• Hertz: 60
• Horsepower: 1/30
• UL Listed: Yes
• Amps: 1.9
• Discharge Line: 3/8 inches
• Max Lift Height: 22 feet
• Max Flow Rate: 132 gallons per hour
• Inlet Count: 4
• Tank Capacity: 0.5 gallons
• Color: Black/Red
• Dimensions: 12.25 x 6.5 x 7.5 inches
• Shipping Weight: 5.35 pounds
