DIVERSITECH DT-H1840-4 Hurricane Pad Concrete Equipment Pad - 18x40x4 inches

Product Description

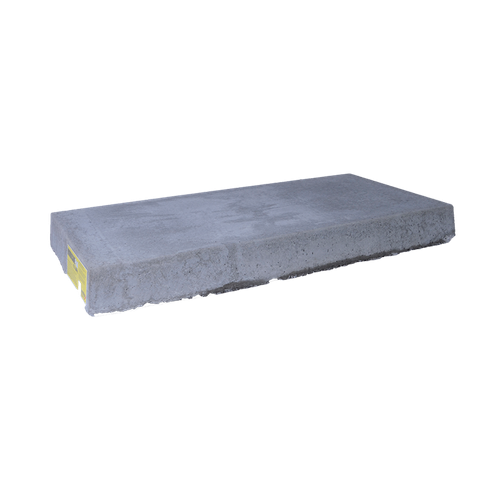

The DIVERSITECH DT-H1840-4 is a concrete equipment pad suitable for use with condensers and heat pumps. It measures eighteen inches by forty inches with a height of four inches. This pad is made from seven thousand PSI concrete reinforced with steel.

• Constructed to meet Florida Building Code for installations up to 150 MPH.
• Equipped with a full EPS foam bottom to resist settling and minimize vibration.
• Designed for easy installation with standard Tapcon screws for equipment anchoring.

Product Highlights

This equipment pad combines strength with stability, making it a reliable choice for HVAC installations. The lightweight EPS foam core allows for efficient handling during placement.

Product Information

Standard Information

• SKU: DT-H1840-4
• UPC: 0095247123360;50095247123365;PACTHS

Technical Specifications

• Load Capacity: 552 lb.
• Anchor Pullout Strength: 1140 lbs.
• Shape: Rectangular
• Dimensions: 18 in. (L) x 40 in. (W) x 4 in. (H)
• Drillable: Yes
• Texture: Smooth
• Material: Concrete
• Application: Condensers, Heat Pumps
