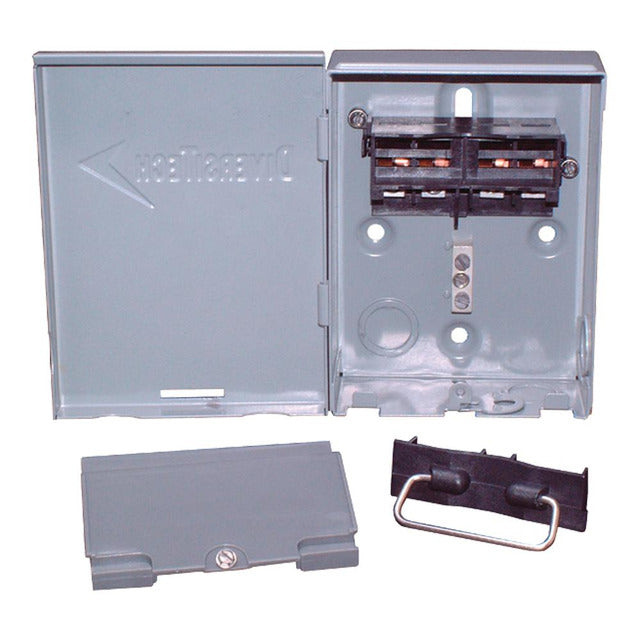

Diversitech dt-eds-60u 60 Amp Non-fused Disconnect Switch

Product Description

The DIVERSITECH dt-eds-60u is a 60-amp non-fused disconnect switch designed for load-side and line-side electrical disconnection in HVAC applications. It provides a local means of de-energizing outdoor condensing units and similar equipment, meeting the code requirement for a readily accessible disconnect within sight of the equipment. Licensed electricians and HVAC technicians install this switch as part of new installations and service replacements. The non-fused design means overcurrent protection is handled upstream, keeping this switch dedicated to isolation duty.

This disconnect is suited for residential and light commercial HVAC installations where a 60-amp rated, non-fused shutoff is required at the equipment. Typical applications include outdoor air conditioning condensing units, heat pumps, and similar equipment requiring a local lockout point. Its load-side and line-side switching configuration supports standard rough-in wiring layouts common in HVAC service work.

Key Features

• 60-amp rating handles standard residential and light commercial HVAC equipment loads
• Non-fused design keeps overcurrent protection centralized at the panel
• Load-side and line-side switching supports code-required line-of-sight disconnection
• OEM replacement part for reliable fit and performance

Compatibility

Designed as an OEM-style replacement non-fused disconnect switch for residential and light commercial HVAC systems requiring a 60-amp local disconnect.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with the NEC and applicable local codes. De-energize the circuit at the main panel and verify absence of voltage with a meter before beginning work. Mount the disconnect within sight of and readily accessible from the equipment it serves, as required by NEC Article 440. Do not exceed the 60-amp current rating of this switch.

Technical Specifications

• Amperage: 60 amps
• Fusing: Non-fused
• UNSPSC Code: 39122233

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: dt-eds-60u
