Diversitech DIVE-UC3434-3 Concrete Equipment Pad 34x34x3

Product Description

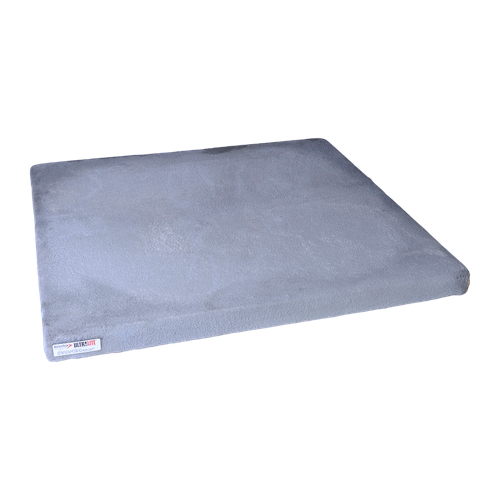

The DIVERSITECH DIVE-UC3434-3 is an UltraLite concrete composite equipment pad built to support outdoor HVAC condensers, heat pumps, and similar ground-mounted equipment. It measures 34 inches long by 34 inches wide by 3 inches tall and carries a rated load capacity of 496 pounds. The construction pairs a fiber-cement outer skin with an EPS foam inner core, which together provide vibration dampening and resistance to cracking, breaking, and settling. The UV-resistant finish maintains structural integrity in outdoor environments over time. Licensed HVAC technicians and installers use this pad as a stable, level foundation during condenser and heat pump installations.

This pad is designed for residential and light commercial outdoor HVAC applications, including split-system air conditioners and heat pump condenser units. The rough-textured, gray square pad sits directly on grade and provides a solid, non-settling base. Its EPS foam core makes it significantly lighter than full concrete pads, reducing handling effort during installation without sacrificing load-bearing performance. The fiber-cement coating adds durability against ground moisture, freeze-thaw cycles, and UV exposure common in outdoor equipment settings.

Key Features

• Ultra-lightweight concrete composite construction — fiber-cement skin over EPS foam core
• 496-pound load capacity supports standard residential condensers and heat pumps
• 34 x 34 x 3 inch square footprint fits common outdoor unit bases
• UV-resistant rating for long-term outdoor use
• Solid bottom resists settling on grade
• Vibration-dampening EPS core reduces sound and movement transmission

Compatibility

Designed as an OEM-style equipment pad for ducted residential condenser and heat pump installations requiring a 34 x 34 inch square base with a 3-inch profile.

Installation Notes

HVAC technicians and installers typically place this pad on compacted, level ground before setting the condenser or heat pump unit. Ensure the ground surface is stable and free of debris prior to placement to maintain a level base. Power down the system and follow local mechanical codes before disconnecting or reconnecting refrigerant lines or electrical connections at the unit. The pad is not drillable, so mounting anchors should not be driven through it.

Technical Specifications

• Material: Ultra-Lightweight Concrete Composite
• Product Length: 34 inches
• Product Width: 34 inches
• Product Height: 3 inches
• Load Capacity: 496 pounds
• Shape: Square
• Color: Gray
• Texture: Rough
• Application: Condensers, Heat Pump
• Drillable: No
• Nestable: No
• Rating: UV Resistant
• Ducted or Ductless: Ducted

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DIVE-UC3434-3
