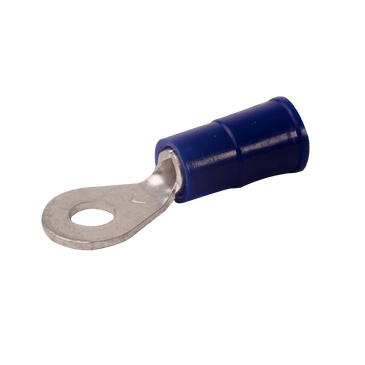

Diversitech DIVE-6272 Insulated Ring Terminal 16-14 Awg Stud 6

Product Description

The DIVERSITECH DIVE-6272 is a pack of 22 insulated ring terminals designed for crimp-style electrical connections in HVAC, electrical, and related trade applications. Each terminal accommodates 16 to 14 AWG wire and fits a No. 6 stud. The insulated sleeve eliminates the need to solder, providing a secure mechanical and electrical connection when crimped correctly. Electricians, HVAC technicians, and maintenance professionals use these terminals when terminating control wiring, low-voltage circuits, and equipment grounding conductors. The insulated design protects the connection from abrasion and incidental contact once the crimp is made.

These ring terminals are suited for residential and light commercial HVAC control wiring, appliance hookups, and general electrical panel or equipment termination work where 16 to 14 AWG conductors land on a No. 6 screw or stud. The pack of 22 provides enough quantity for a single large job or stocking a service vehicle for multiple service calls. They are appropriate for any application where a solderless, insulated ring-style termination is preferred over open-barrel or spade connectors.

Key Features

• Crimp-style termination eliminates the need to solder
• Compatible with 16 to 14 AWG wire range
• Fits No. 6 stud size
• Insulated sleeve protects the connection from abrasion and incidental contact
• Pack of 22 terminals per package

Compatibility

Designed as a standard crimp ring terminal for use with 16 to 14 AWG conductors terminating on No. 6 studs or screws in HVAC control, electrical, and general trade wiring applications.

Installation Notes

Installation is performed by licensed electricians or HVAC technicians following applicable NEC requirements. De-energize and lock out the circuit before making any terminations. Use a calibrated ratcheting crimp tool sized for insulated terminals to ensure a full, secure crimp on the conductor. Do not over-strip the wire or attempt to solder over a crimped insulated terminal.

Technical Specifications

• Wire Range: 16-14 AWG
• Stud Size: No. 6
• Quantity per Pack: 22
• Terminal Type: Insulated Ring
• Connection Method: Crimp

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DIVE-6272
