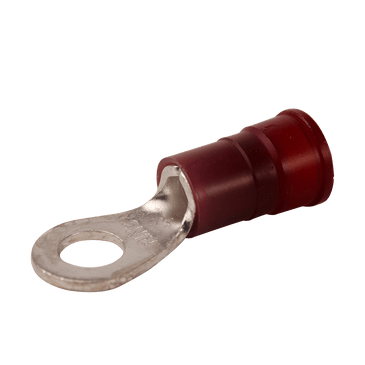

Diversitech DIVE-6257 Insulated Ring Terminals 8 Awg 6-pack

Product Description

The DIVERSITECH DIVE-6257 is a pack of six insulated ring terminals designed for securing electrical wiring to stud connections in HVAC and related trade applications. Each terminal accommodates 8 AWG wire and fits a 1/4-inch stud, providing a reliable, insulated termination point that protects the connection from vibration, moisture, and incidental contact. The insulated sleeve keeps conductors isolated at the lug, reducing the risk of shorts at the connection point. These ring terminals are a standard consumable for electricians and HVAC technicians working on equipment wiring, control circuits, and ground connections.

These insulated ring terminals are suited for residential and commercial HVAC installations, electrical panel work, and equipment wiring where 8 AWG conductors must be terminated at a 1/4-inch stud. They are commonly used during new equipment installation, retrofit wiring projects, and service calls where secure, insulated ring terminations are required. The pack-of-six format supports both single-job use and bench-stock replenishment for service vehicles.

Key Features

• Accommodates 8 AWG wire for a secure, code-appropriate termination
• Fits 1/4-inch mounting studs standard on HVAC and electrical equipment
• Insulated construction isolates the conductor at the connection point
• Pack of 6 supports multiple terminations per job or restocking needs
• Compact form factor allows installation in tight wiring compartments

Compatibility

Designed as standard insulated ring terminals for use wherever 8 AWG wire must be terminated to a 1/4-inch stud in HVAC, electrical, or related trade applications.

Installation Notes

Ring terminals of this type are typically installed by licensed electricians or HVAC technicians. De-energize and lock out the circuit before terminating or removing any wiring. Use a properly sized crimping tool rated for insulated terminals to achieve a secure, gas-tight crimp. Refer to NEC guidelines for conductor termination requirements applicable to the installation.

Technical Specifications

• Wire Range: 8 AWG
• Stud Size: 1/4 inch
• Quantity: 6 per pack
• Insulation Type: Insulated

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DIVE-6257
