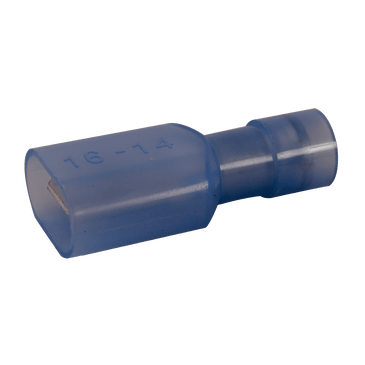

Diversitech DIVE-6234 Male Slip-on Connector 16-14 Awg 14-pack

Product Description

The DIVERSITECH DIVE-6234 is a fully insulated male slip-on electrical connector designed for use with 16 AWG to 14 AWG wire. The full insulation sleeve covers the entire terminal body, reducing exposure to live contact points during and after termination. The 0.250 inch tab size is a standard dimension used across a wide range of electrical components in HVAC, refrigeration, and light commercial equipment. This connector is sold in a pack of 14, making it practical for service calls and panel work where multiple terminations are needed in a single visit. Electricians, HVAC technicians, and appliance service pros typically use these connectors for control circuit wiring, low-voltage harness repairs, and component replacement.

This connector is suited for residential and light commercial applications where quick, secure, and insulated slip-on terminations are required. Common install scenarios include control board wiring, motor terminal connections, and harness repair work in HVAC systems, refrigeration units, and household appliances. The 16-14 AWG wire range covers the most common control and light-load circuit wire gauges encountered in field service work.

Key Features

• Full insulation design covers the entire terminal body for maximum contact protection
• Slip-on installation and removal supports fast service and repeat-access maintenance
• 0.250 inch tab size fits standard blade terminals across HVAC and appliance equipment
• Compatible with 16 AWG to 14 AWG wire for common control circuit applications
• Pack of 14 connectors reduces truck-stock replenishment frequency on busy service days

Compatibility

Designed as an OEM-style replacement connector for residential and light commercial electrical and HVAC control wiring requiring a fully insulated male slip-on terminal with a 0.250 inch tab and 16-14 AWG wire range.

Installation Notes

Installation should be performed by a qualified electrician or licensed HVAC technician following applicable NEC guidelines. Power down and lock out the circuit before terminating or removing any connector. Use a calibrated wire stripper and ratcheting crimping tool sized for 16-14 AWG terminals to ensure a proper mechanical crimp. Do not rely on the insulation sleeve as the sole retention method — confirm the crimp is secure before restoring power.

Technical Specifications

• Wire Range: 16-14 AWG
• Tab Size: 0.250 inches
• Insulation Type: Fully insulated
• Connector Gender: Male
• Connection Style: Slip-on
• Pack Quantity: 14 connectors

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DIVE-6234
