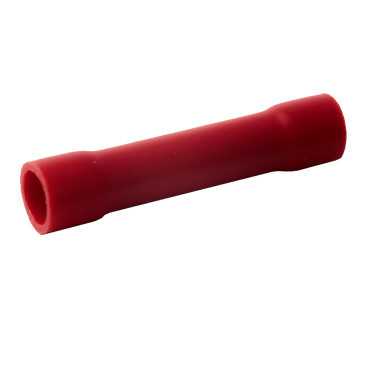

Diversitech DIVE-6231 Insulated Butt Connector 12-10 Awg

Product Description

The DIVERSITECH DIVE-6231 is an insulated butt connector designed to join and insulate electrical connections between two wires. Rated for 12-10 AWG wire, it provides a secure mechanical and electrical connection suitable for field wiring repairs and equipment installations. Each pack contains 16 connectors. The insulated barrel protects the crimped joint from moisture and incidental contact, making it appropriate for HVAC, refrigeration, and general electrical service work where reliable low-voltage or line-voltage splices are required.

These butt connectors are used wherever two wires must be spliced end-to-end in a safe, insulated termination. Typical applications include HVAC control wiring, motor lead repairs, appliance service, and general electrical rough-in or service work. The 12-10 AWG range covers common wire gauges found in residential and light commercial equipment, including condensing unit wiring, blower motor leads, and branch circuit connections.

Key Features

• Insulated barrel provides electrical isolation and protection at the splice point
• Accepts 12-10 AWG wire for versatile use across common equipment gauges
• Pack of 16 connectors supports multi-connection service calls without restocking
• Compact form factor allows easy handling in tight equipment compartments
• Crimp-style termination requires no soldering for fast field installation

Compatibility

Designed as an OEM-style replacement and general-use insulated butt connector for residential and light commercial electrical wiring applications requiring 12-10 AWG wire termination.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with applicable NEC requirements. De-energize the circuit completely before making or breaking any wire connections. Use a calibrated wire crimping tool sized for the connector barrel to ensure a gas-tight crimp. Inspect the insulation sleeve after crimping to confirm no conductor is exposed at the connection point.

Technical Specifications

• Wire Range: 12-10 AWG
• Connector Type: Insulated Butt Connector
• Quantity per Pack: 16

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DIVE-6231
