Diversitech DDS-60U Non-Fuse Metal Disconnect 60A

Product Description

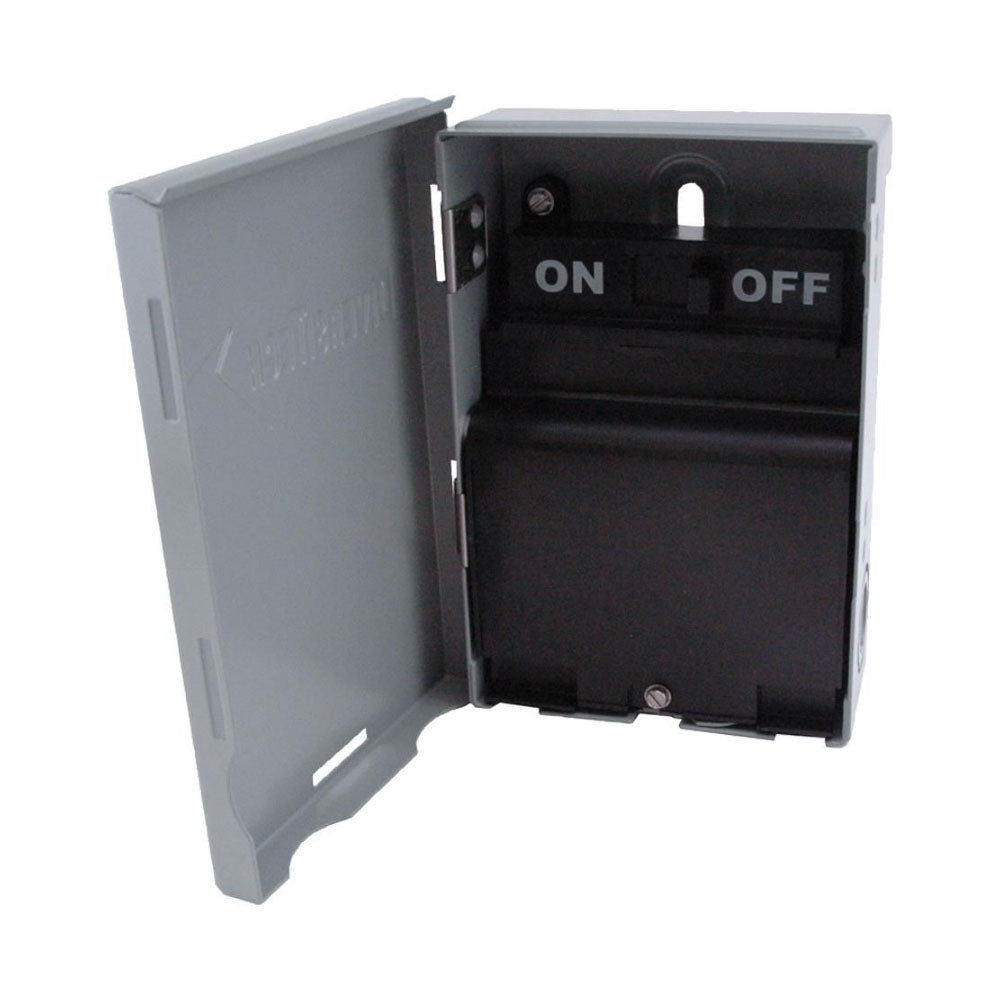

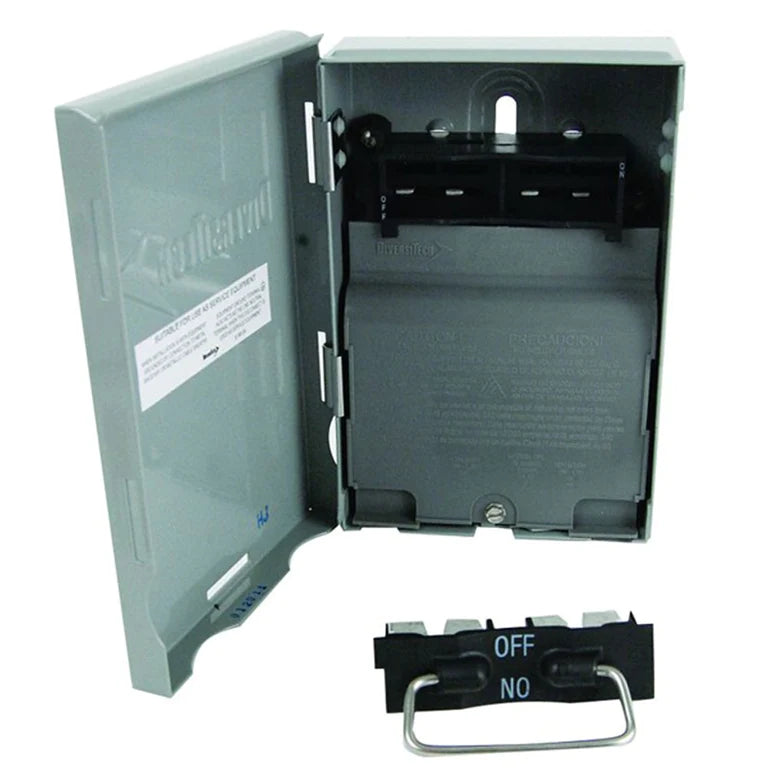

The Diversitech DDS-60U is a 60A non-fuse metal disconnect switch. Designed for easy installation without removing internal components. Features a folding pivot locking tab and a full dead front. The side opening door opens more than 180 degrees for maximum access. Line, load, and ground terminals are aligned for ease of wiring.

• Installs without removing internals
• Folding pivot locking tab
• Full dead front

Product Highlights

This 60A non-fusible disconnect switch ensures safe and reliable isolation of electrical circuits.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DDS-60U
• Country of Origin: United States

Technical Specifications

• Phase: 1
• Frequency: 60 Hz
• Type: Disconnect Switch
• Product Category: Mini Split Accessories
• Specification Met: UL
• Temperature Rating: 257 degree fahrenheit
• Brand: Diversitech
• MPN: DDS-60U
• Manufacturer: Diversitech Cor.
• Model / MPN: DDS-60U
• Amperage Rating: 60 A
• Item Name: Disconnect Switch
• Fusible / Nonfusible: Nonfusible
• Voltage: 240v
• Application: HVAC/R
• cUL Listed: Yes
• Max Volts (V): 240
• UL Listed: Yes
• NEMA Rating: 3R (Rain & Sleet Resistant)
• No. of Fuses: 0
• Top or Side Open: Side
• Material: Metal
• Domestic / Import: Import
• Voltage Rating: 240 V AC
• Horsepower: 10 hp
• Enclosure Type: NEMA 3R
• Finish: Gray
