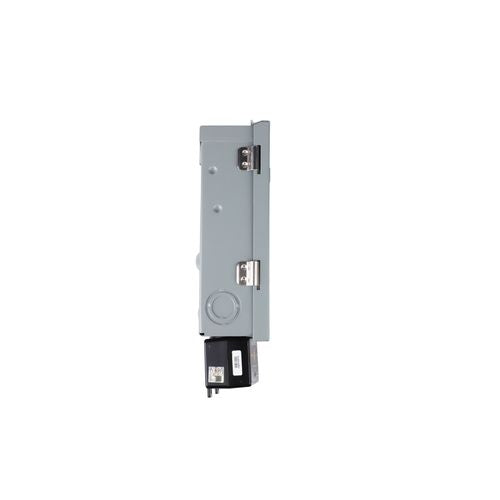

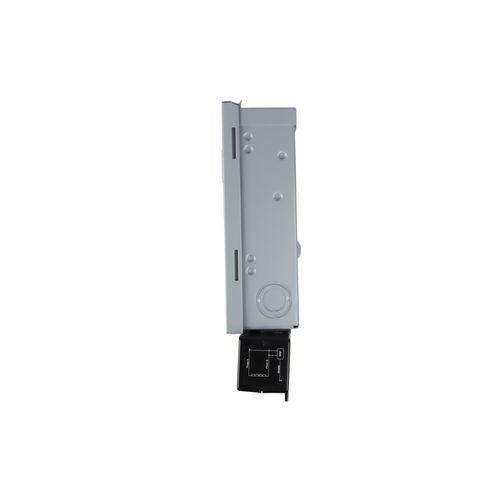

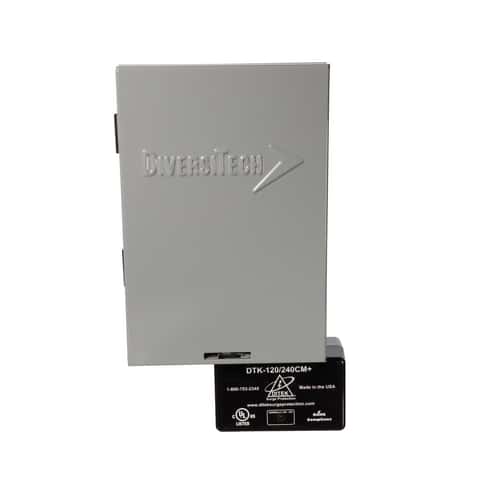

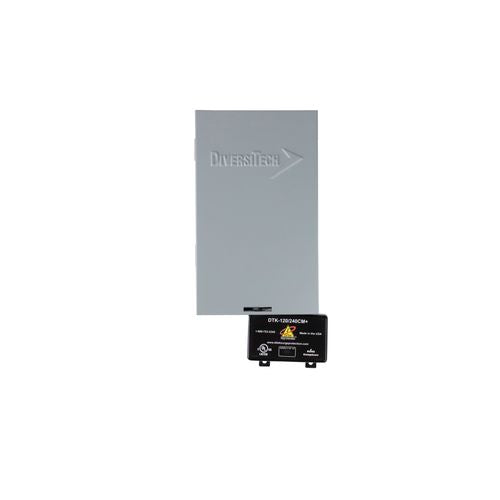

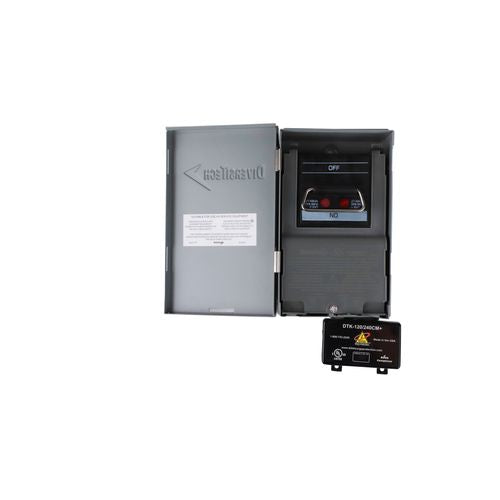

DIVERSITECH DDS-60-SURGE Fused Disconnect with Surge Protection 60 Amp

Product Description

The DiversiTech DDS-60-SURGE is a fused disconnect designed for HVACR equipment protection. It features an integrated Ditek surge protector that is pre-mounted and connected, offering a surge current rating of fifty thousand amps and a diagnostic LED indicator. This device safeguards HVAC systems from electrical surges and spikes.

• Easy installation for protecting equipment
• Includes a factory-wired surge protector
• Automatically resets after multiple surge events

Product Highlights

This fused disconnect provides a reliable means to service HVAC systems while preventing damage from voltage spikes, helping to extend the life of the equipment.

Product Information

Standard Information

• Power Supply: Single Phase
• Application: HVAC/R

Technical Specifications

• cUL Listed: Yes
• Max Volts (V): 240
• UL Listed: Yes
• Amps: 60
• Disconnect Mechanism: Pull-Out Handle
• Fused / Non-Fused: Fusible
• NEMA Rating: 3R (Rain & Sleet Resistant)
• No. of Fuses: 2
• Top or Side Open: Side
