Diversitech DBF165S B/F V2A-165S Drier 5/8 in 16 cu in (V2A-165S)

Product Description

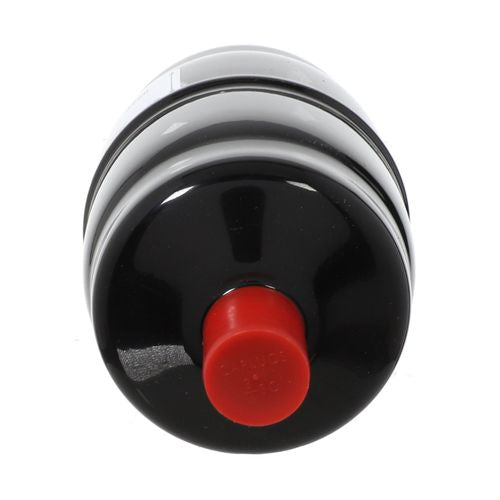

Diversitech DBF165S is a 5/8 in bi-flow filter drier (MPN DBF165S) for HVAC refrigeration systems, including heat pump and reverse cycle applications. The desiccant core filters particles down to 25 microns and removes moisture and acid from refrigerant lines. The unit provides 16 cubic inches of capacity, a 5/8 in sweat connection, a powder coat exterior exceeding 500-hour ASTM salt spray performance, integrated internal check valves, and fiber gasket core cushioning.

• Desiccant core filters contaminants down to 25 microns and removes moisture and acid
• 5/8 in sweat connection, bi-flow design, 16 cubic inch capacity for heat pump/reverse cycle systems
• Powder coat exterior exceeding 500-hour ASTM salt spray test, internal check valves, fiber-gasket core cushioning

Product Highlights

5/8 in sweat bi-flow filter drier; 16 cu in capacity; 25 micron desiccant filtration; integrated check valves.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DBF165S
• Country of Origin: United States

Technical Specifications

• Brand: Diversitech
• MPN: DBF165S
• Model: V2A-165S
• Type: Bi-flow filter drier
• Connection Size: 5/8 in
• Connection Type: Sweat
• Capacity: 16 cubic inches
• Filtration Rating: 25 microns
• Exterior Coating: Powder paint; exceeds 500-hour ASTM salt spray test
• Check Valves: Integrated within filter dryer shell
• Core Cushioning: Fiber gaskets
• Intended Application: Heat pump / reverse cycle / HVAC refrigeration
• Weight: 1.4 lbs (635 g)
• Dimensions (H x W x D): 3.5 x 3 x 8 inches
• UPC: 687472038290
• GTIN / EAN: 0687472038290
• Country of Origin: United States
