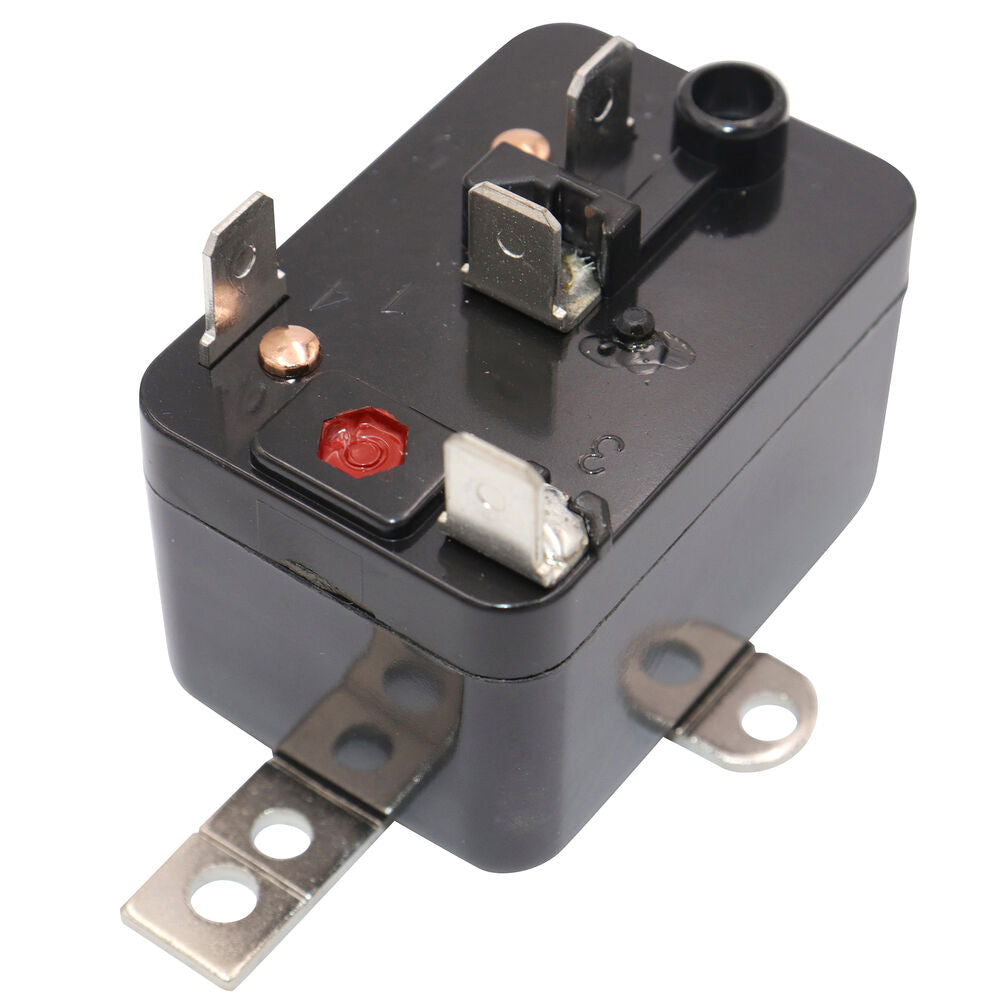

DiversiTech D90-290Q GP Relay 16/8A-24V

Product Description

The DiversiTech D90-290Q GP Relay is an essential component for electrical control systems. This relay operates with a single-pole, single-throw (SPST) configuration, making it suitable for simple on/off functions in various applications.

• Relays with SPST-NO configuration
• Rated for 16/8A at 24V for versatile load handling
• Gold-plated contacts for improved conductivity and longevity

Product Highlights

The D90-290Q is built to handle different electrical loads while providing reliable performance in demanding environments. Its compact size allows for easy installation, while the robust housing guards against external factors.

Product Information

Standard Information

• Brand: DiversiTech
• Item Number: D90-290Q

Technical Specifications

• Amperage Rating: 14 A at 125 VAC, 8 A at 277 VAC
• Contact Configuration: SPST-NO
• Dimension: 2 inches W x 1.75 inches H x 3 inches D
• Frequency Rating: 50/60 Hz
• Series: 8400
• Voltage Rating: 24 VAC
• Mounting: Universal
• Standards/Certifications: cRUus, UL listed
