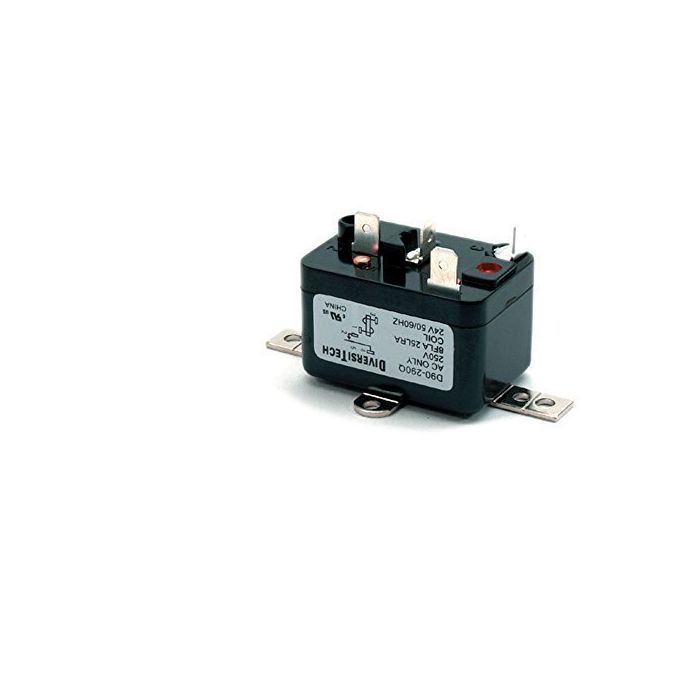

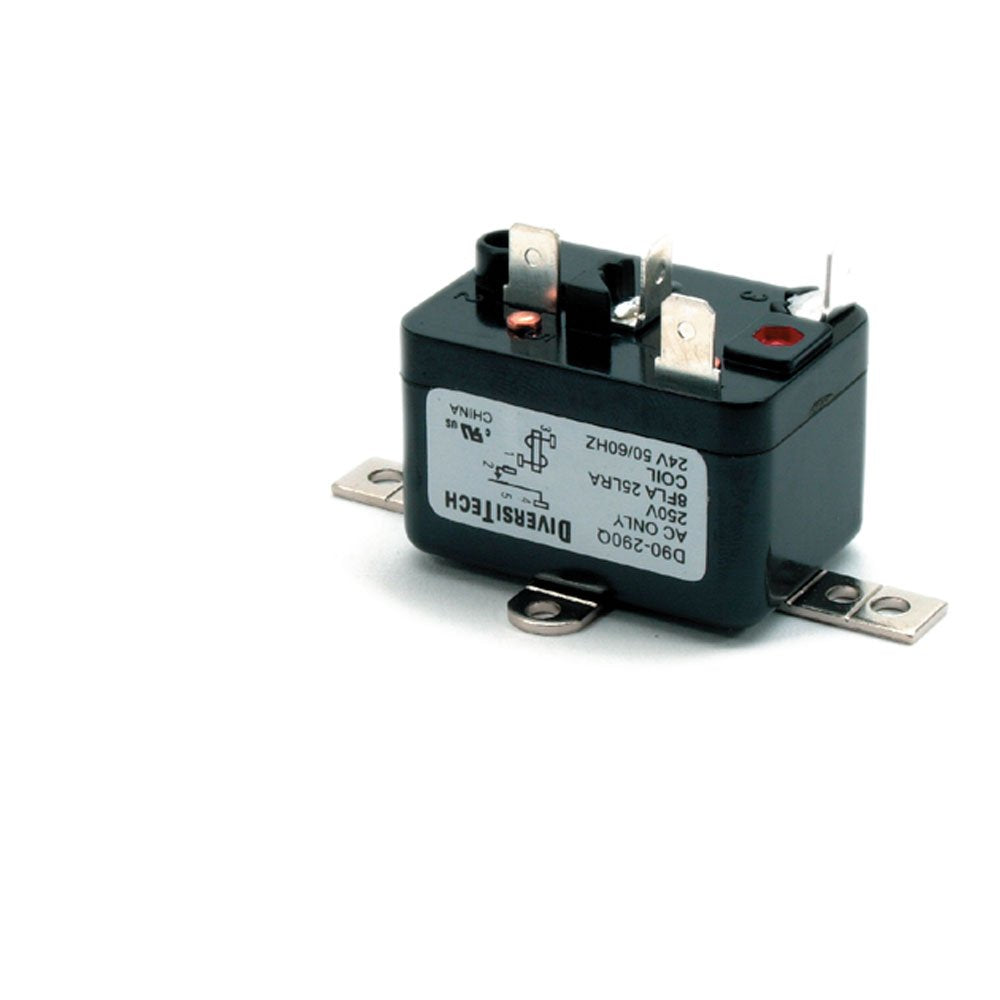

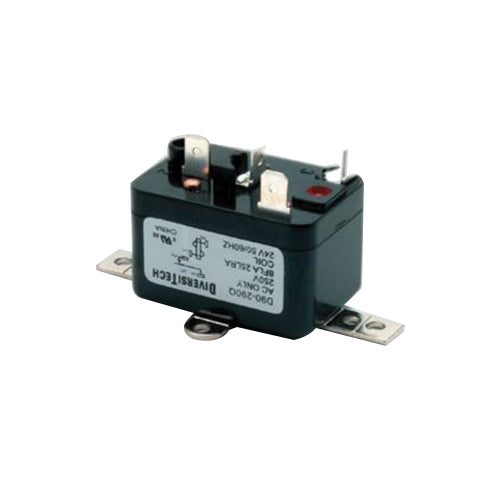

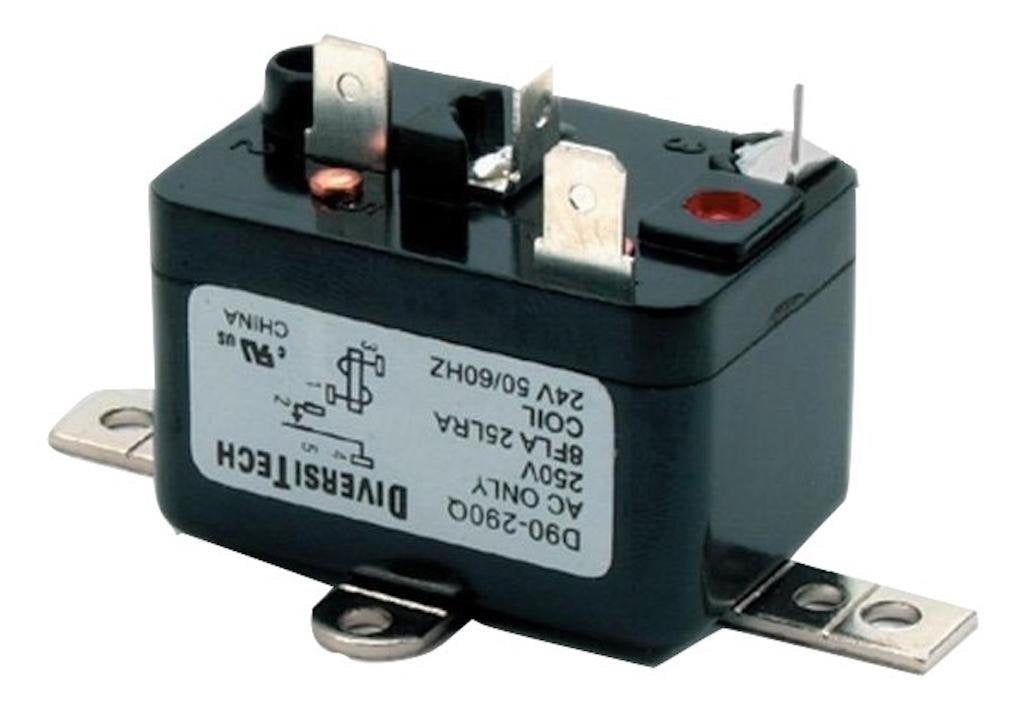

Diversitech D90-290Q General Purpose Relay 24 VAC SPST-NO

Product Description

The Diversitech D90-290Q general purpose relay is a single-pole, single-throw (SPST-NO) relay designed for electrical control in industrial applications. Rated for 24 VAC, this relay offers reliable on/off control of electrical devices. It features quick-connect terminals and universal mounting with break away tabs. The Diversitech D90-290Q is UL listed and cRUus certified.

• Quick-connect terminals
• Universal mounting
• Break away tabs
• UL listed, cRUus

Product Highlights

The Diversitech D90-290Q relay provides reliable and efficient electrical control in various industrial applications.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: D90-290Q
• Country of Origin: China

Technical Specifications

• MPN: D90-290Q
• Amperage Rating: 14 A at 125 VAC, 8 A at 277 VAC
• Contact Configuration: SPST-NO
• Frequency Rating: 50/60 Hz
• Item Name: General Purpose Relay
• Mounting: Universal
• Series: 8400
• Voltage Rating: 24 VAC
• Brand: DiversiTech
• Coil Voltage: 24 VAC
• Number of Poles: 1
• Terminal Type: Quick-Connect
