Diversitech d232 Female Disconnect 1/4 in 12-10 Awg 12-pack

Product Description

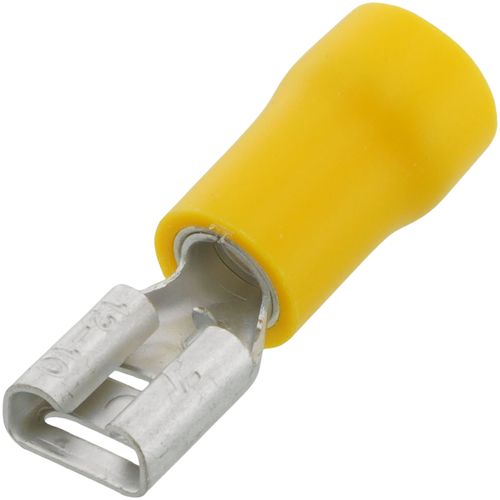

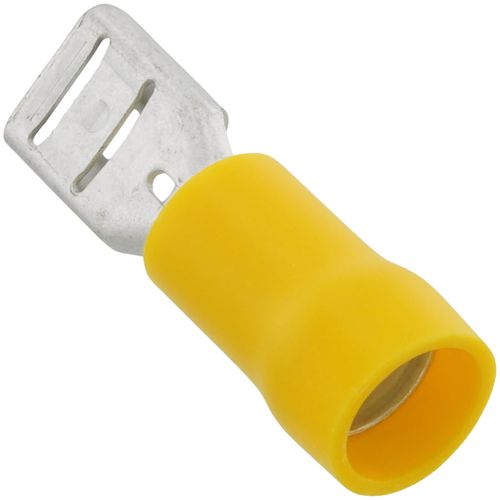

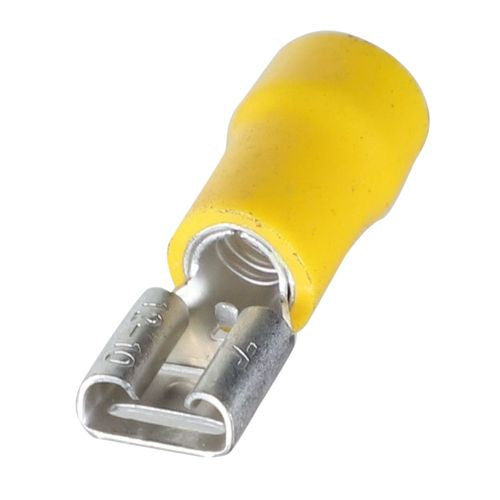

The DIVERSITECH d232 is an insulated female disconnect terminal designed for secure, low-resistance electrical connections in HVAC, refrigeration, and light commercial wiring applications. Sized for a 1/4 inch fitting and rated for 12 to 10 AWG wire, this terminal ships in a pack of 12. Butted seam construction prevents the barrel from splitting under maximum crimping pressure. Internal barrel serrations grip wire strands tightly to resist pull-out and reduce contact resistance. A shouldered barrel insulation sleeve positions the terminal correctly before the crimp is made, reducing installation errors.

This disconnect is suited for field wiring tasks where technicians need a reliable, color-coded female disconnect on heavier 12 to 10 AWG conductors. Typical applications include connecting control wiring, fan motor leads, and component pigtails inside residential and light commercial HVAC equipment, both ducted and ductless systems. The yellow color coding identifies the 12 to 10 AWG range at a glance, speeding up terminal selection on the job.

Key Features

• Butted seam barrel construction resists splitting under maximum crimping pressure
• Internal barrel serrations grip wire tightly to resist pull-out and reduce electrical resistance
• Shouldered barrel insulation positions terminal correctly for consistent crimps
• Fits standard 1/4 inch female disconnect receptacles
• Yellow insulation color-coded for 12 to 10 AWG wire range

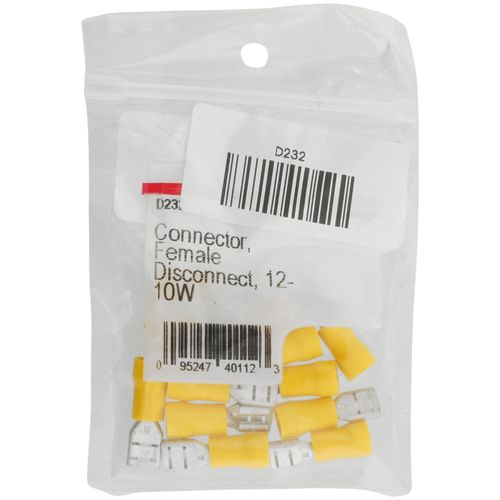

• Pack of 12 terminals per package

Compatibility

Designed as an OEM-style insulated female disconnect for use in both ducted and ductless residential and light commercial HVAC wiring applications where a 1/4 inch female disconnect and 12 to 10 AWG wire capacity are required.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with NEC requirements for the circuit being serviced. Always de-energize and lock out the equipment before making or breaking electrical connections. Use a ratcheting crimp tool rated for insulated disconnects to achieve a full, consistent crimp on the barrel. Inspect the shouldered insulation sleeve to confirm proper terminal seating before crimping.

Technical Specifications

• Wire Capacity: 12 - 10 AWG
• Connector Type: Insulated Female Disconnect
• Fitting Size: 1/4 inch
• Application: Both Ducted and Ductless
• Package Quantity: 12

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: d232
