Diversitech CVMINI ClearVue Mini Condensate Pump 120-240V (7 x 6.25 x 3.5 inches)

Product Description

Diversitech CVMINI is a compact condensate pump designed for ductless HVAC systems. The CVMINI operates on 120-240 V AC, measures approximately 7 x 6.25 x 3.5 inches and weighs about 2.29 pounds. The unit includes a translucent tank, floatless sensor and variable-speed motor, provides up to 35 feet of vertical lift, and has a built-in overflow safety switch for condensate removal in mini-split installations.

• Input voltage: 120-240 V AC, 50/60 Hz, 1 A
• Floatless sensor with variable-speed motor and translucent tank; built-in overflow safety switch
• Compact dimensions 7 x 6.25 x 3.5 inches, weight ~2.29 lb, up to 35 ft vertical lift

Product Highlights

Compact ductless condensate pump with floatless sensor, variable-speed motor, built-in overflow switch and 35 ft lift capacity

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: CVMINI

Technical Specifications

• Brand: Diversitech
• Manufacturer: DiversiTech
• Manufacturer Part Number: CVMINI
• Model Name: ClearVue Mini
• Input Voltage: 120-240 V AC
• Frequency: 50/60 Hz
• Amperage: 1 A
• Maximum Head: 35 ft
• Flow Rate: 3.38 oz/min
• Dimensions: 7 x 6.25 x 3.5 inches
• Weight: 2.29 Pounds
• Features: Floatless sensor; variable-speed motor; translucent tank; built-in overflow safety switch; self-cleaning; rubber mounting pad

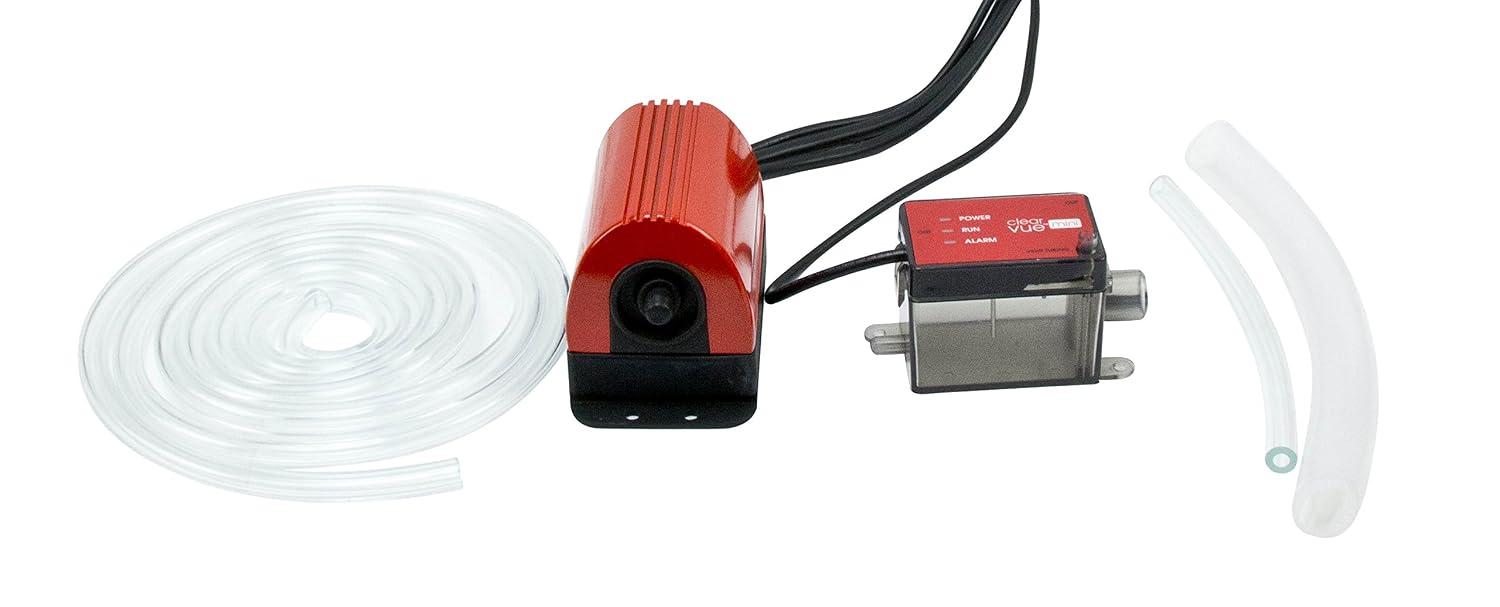

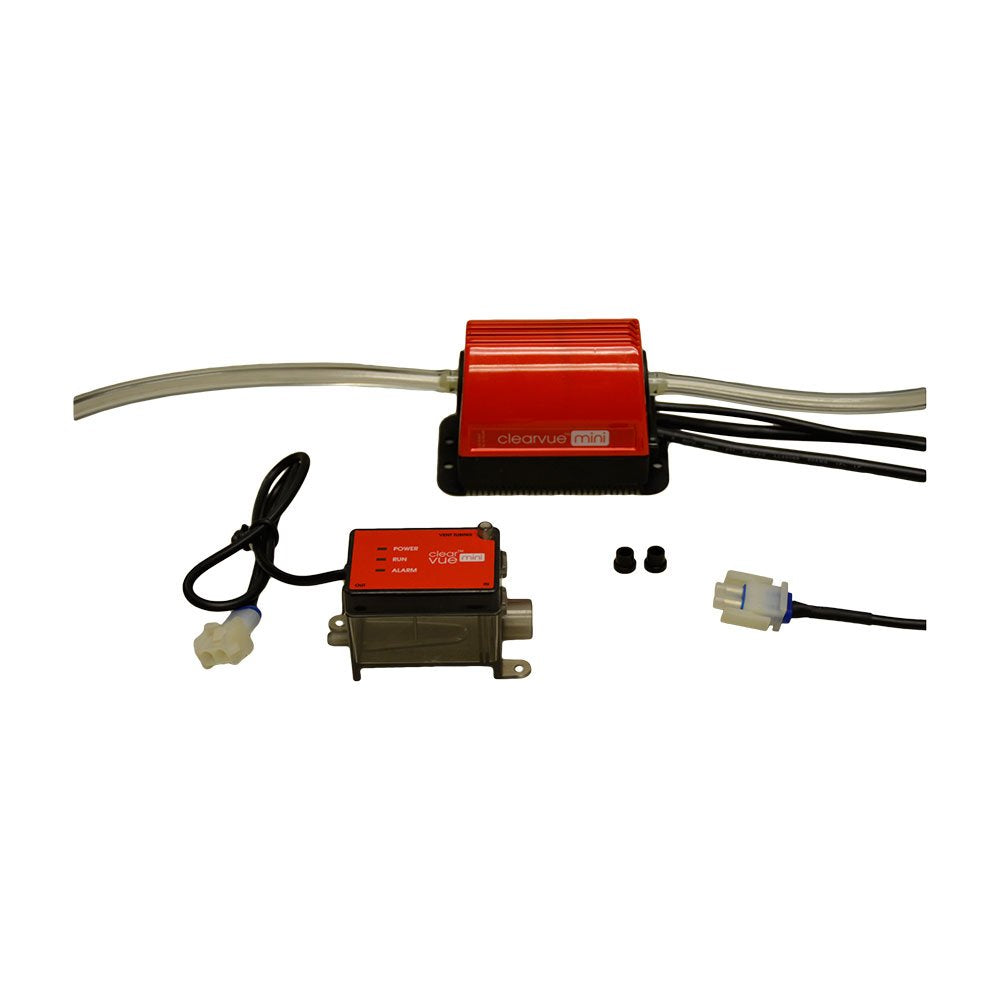

• Included Components: Pump and tank, tubing, cables, installation accessories
• Safety Switch Rating: 5 A at 230 VAC
• Application: Ductless/mini-split HVAC condensate removal
