Product Description

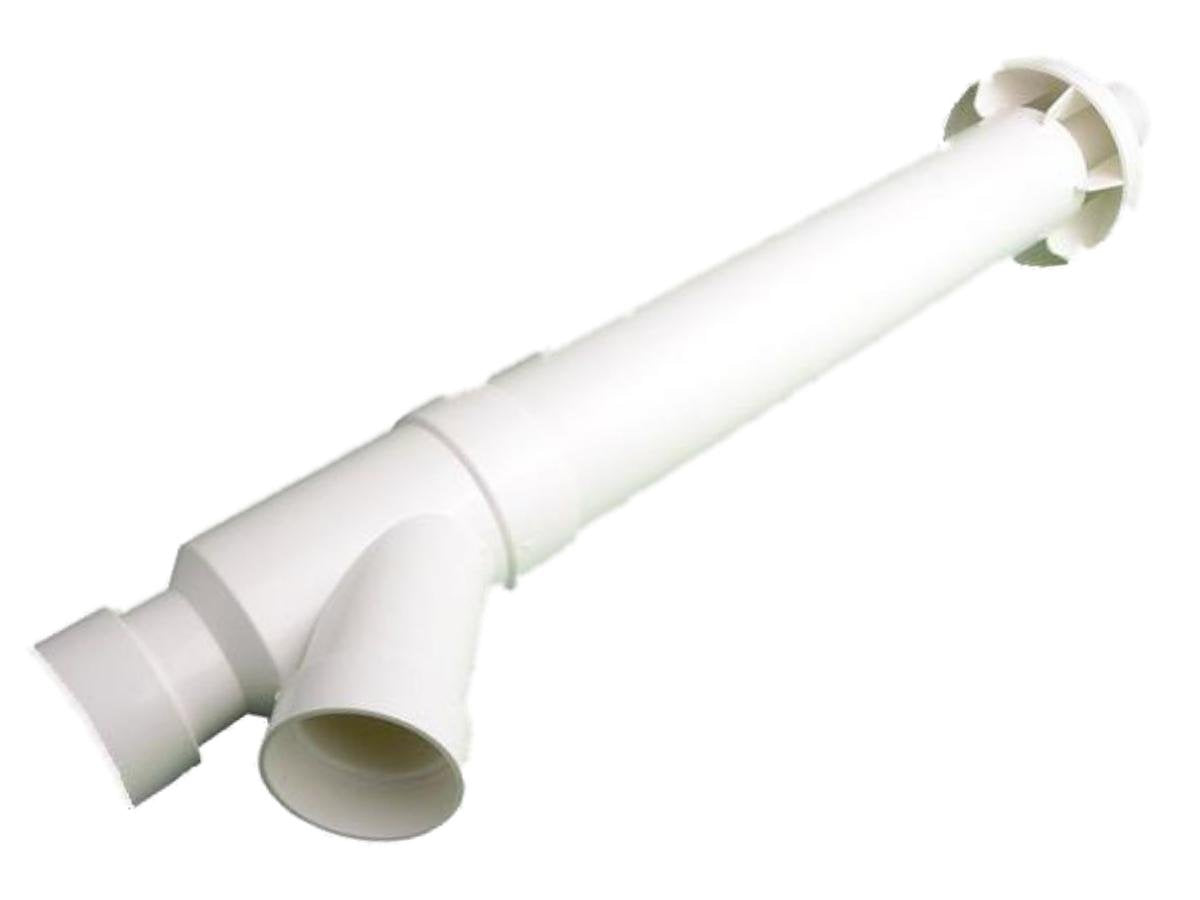

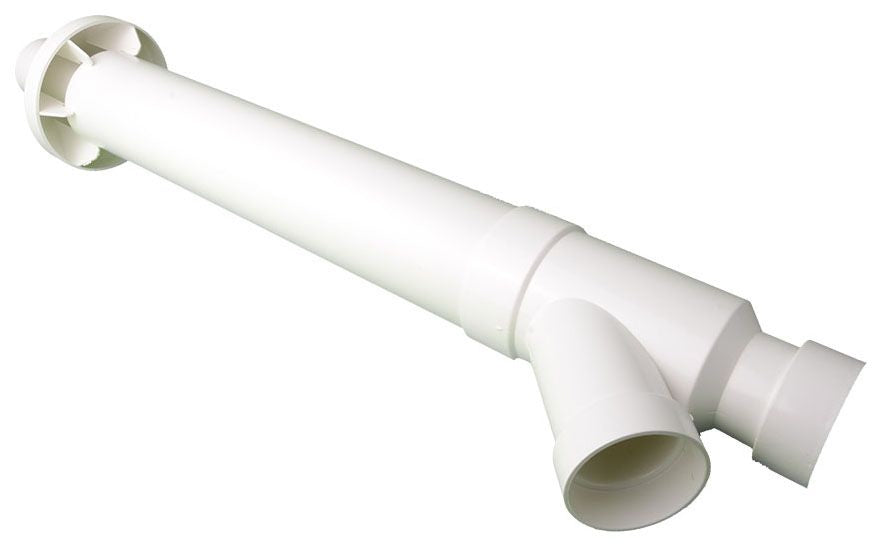

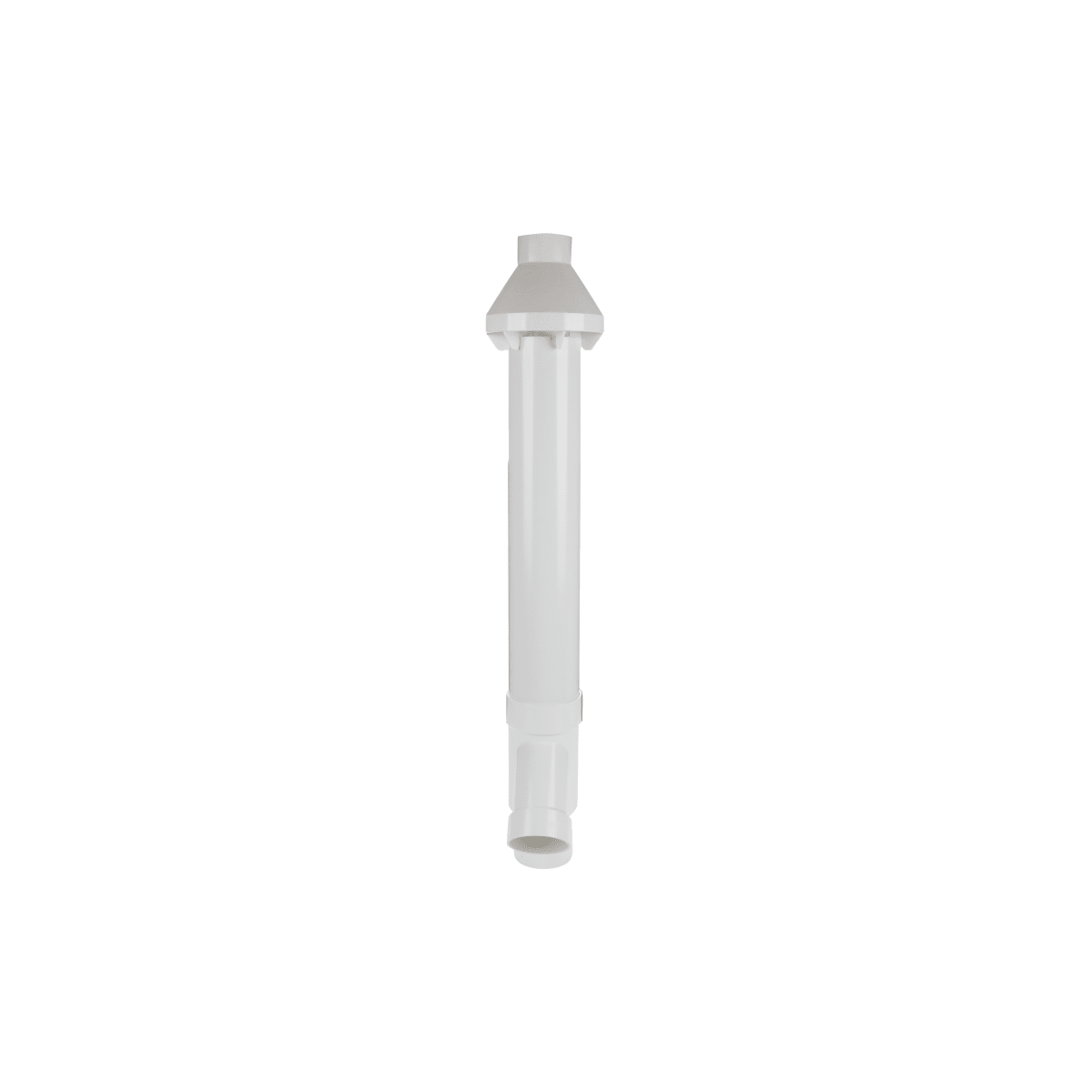

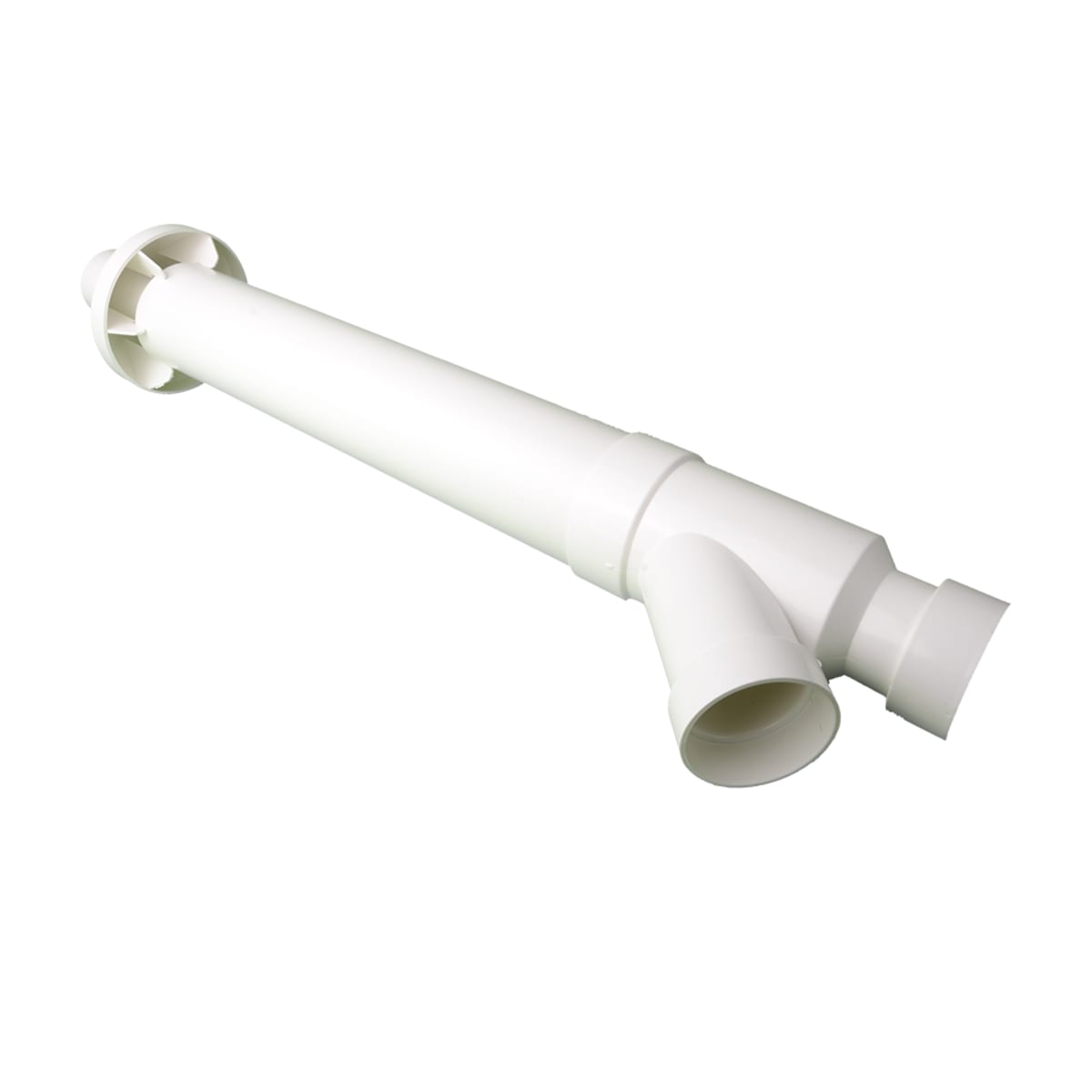

The Diversitech CVENT-3 concentric vent termination kit simplifies two-pipe installation for high-efficiency furnaces, requiring only one hole through a wall or roof. This 3 inch kit includes a combustion air inlet cap, air inlet pipe, vent pipe, and intake/vent concentric Y. It saves time and money by reducing required work.
- Simplifies installation for high efficiency furnaces
- Requires only one hole through the wall or roof
- Saves time and money by reducing the amount of work required
Product Highlights
This concentric vent kit is for use with intake/vent systems and simplifies installation, requiring only one hole.
Product Information
Standard Information
-
Brand: DIVERSITECH
-
Manufacturer Part Number: CVENT-3
-
Country of Origin: VN
Technical Specifications
-
Color: White
-
Material: PVC (Polyvinyl Chloride)
-
Thickness: 3 Inches
-
Included Components: CVENT-3
-
Item Model Number: CVENT-3
-
Part Number: CVENT-3
-
Size: 1 Pack
-
Intake Pipe Size: 3 Inch
-
Intake Pipe Outer Diameter: 4-1/2 Inch
-
Length: 39-1/8 Inch
-
Air Inlet Pipe Length: 24 Inch
-
Includes: (1) Combustion Air Inlet Cap, (1) Air Inlet Pipe, (1) Vent Pipe, (1) Intake/Vent Concentric Y, (1) Installation Instruction on Box
-
Applicable Standard: CSA, ULC, ASTM, ANSI
-
Category: HVAC/R & Fans
-
Type: Concentric Vent
-
Used On: Furnace
-
Nominal Pipe Size: 3 inch
-
Construction: PVC
-
For Use With: Intake/Vent Systems
-
Intake_Size_In: 3
-
Product_Length: 39.1 in.
-
Exhaust_Size_In: 3
-
Compatible_Appliance: Category 4
-
Item Name: Concentric Vent Terminal
-
MPN: CVENT-3
-
Brand: DIVERSITECH
-
Nominal Size: 3 inch
-
size 1: 3"
-
secondary category: vent
-
Product Type: Venting Part
-
Ducted or Ductless: Ducted
-
Suitable For Use With: Use With 3 in intake/vent Systems
-
Dimensions: 39-1/8 in L
-
Vent Size: 3 in
-
Certifications: CSA Certified|cUL Listed
-
Country of Origin: VN
