Diversitech CS-3-BULK50 Drain Pan Clip Float Switch Bulk 50/CA

Product Description

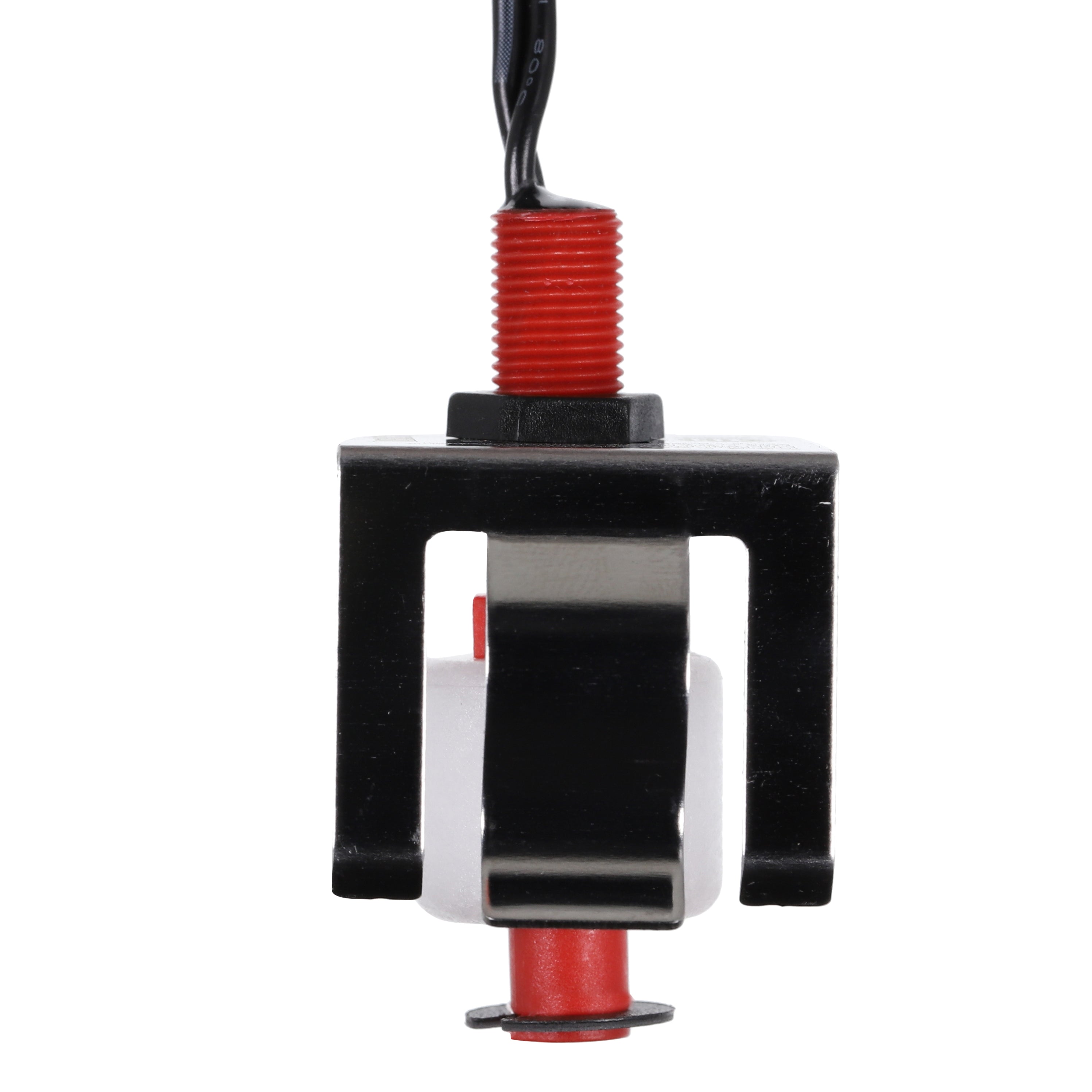

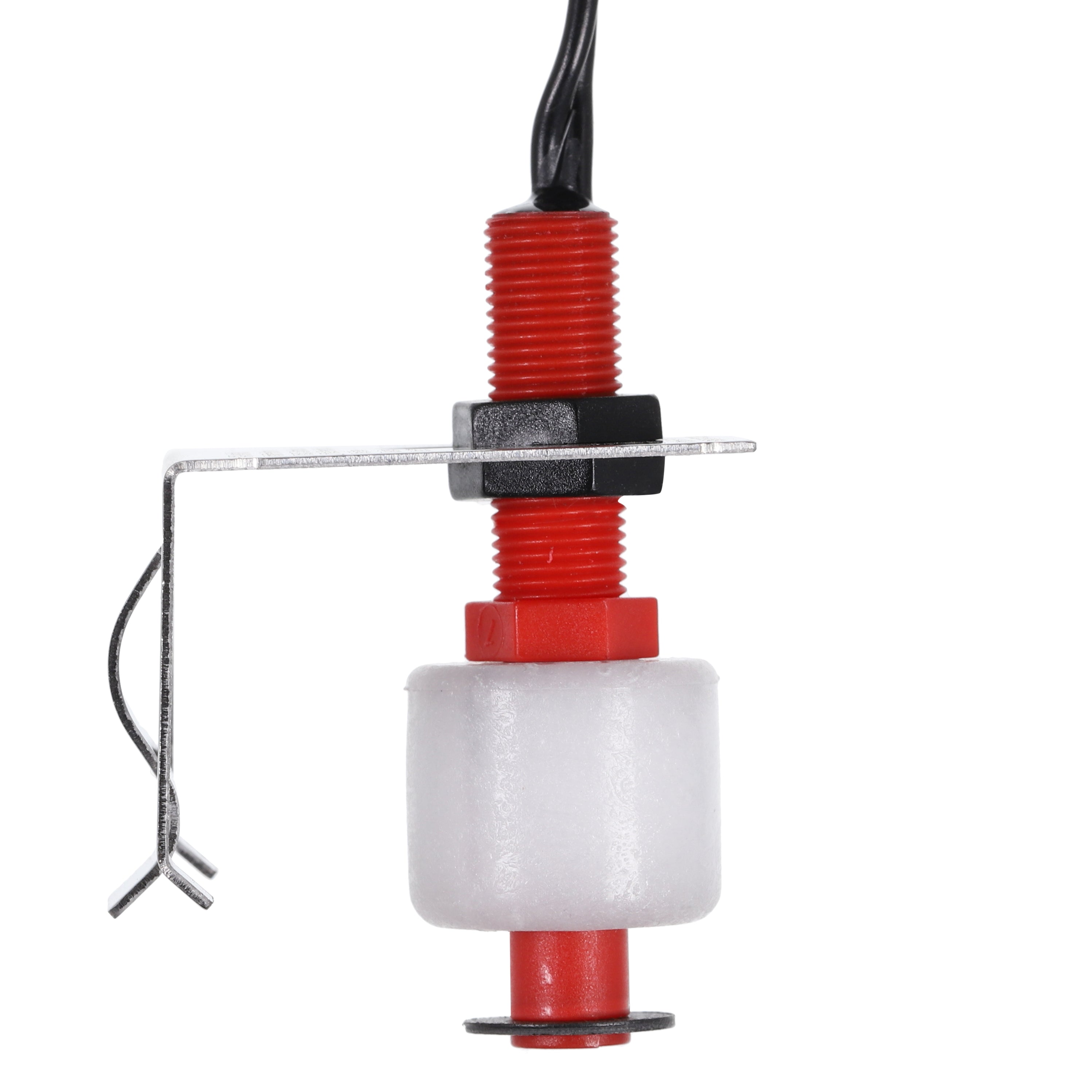

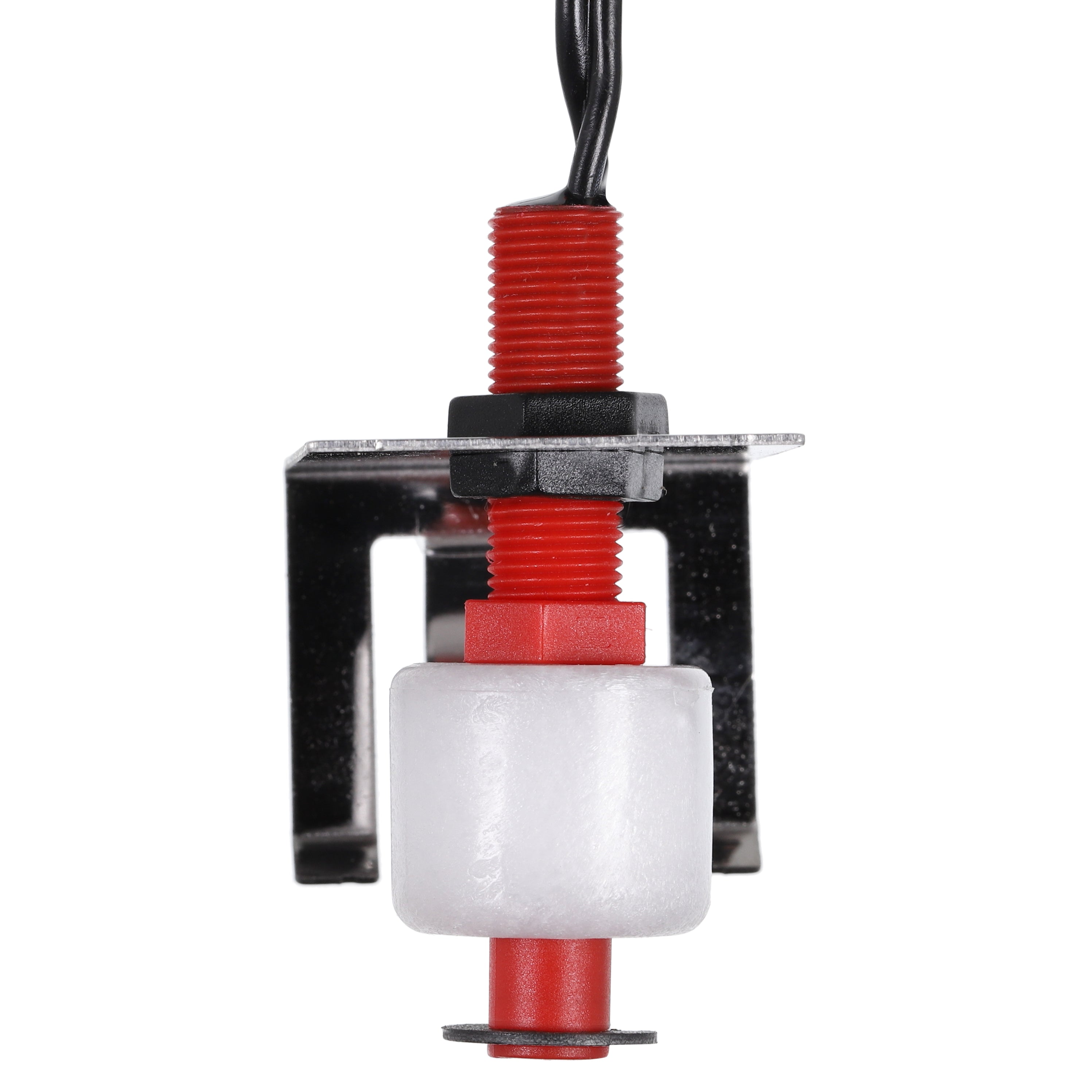

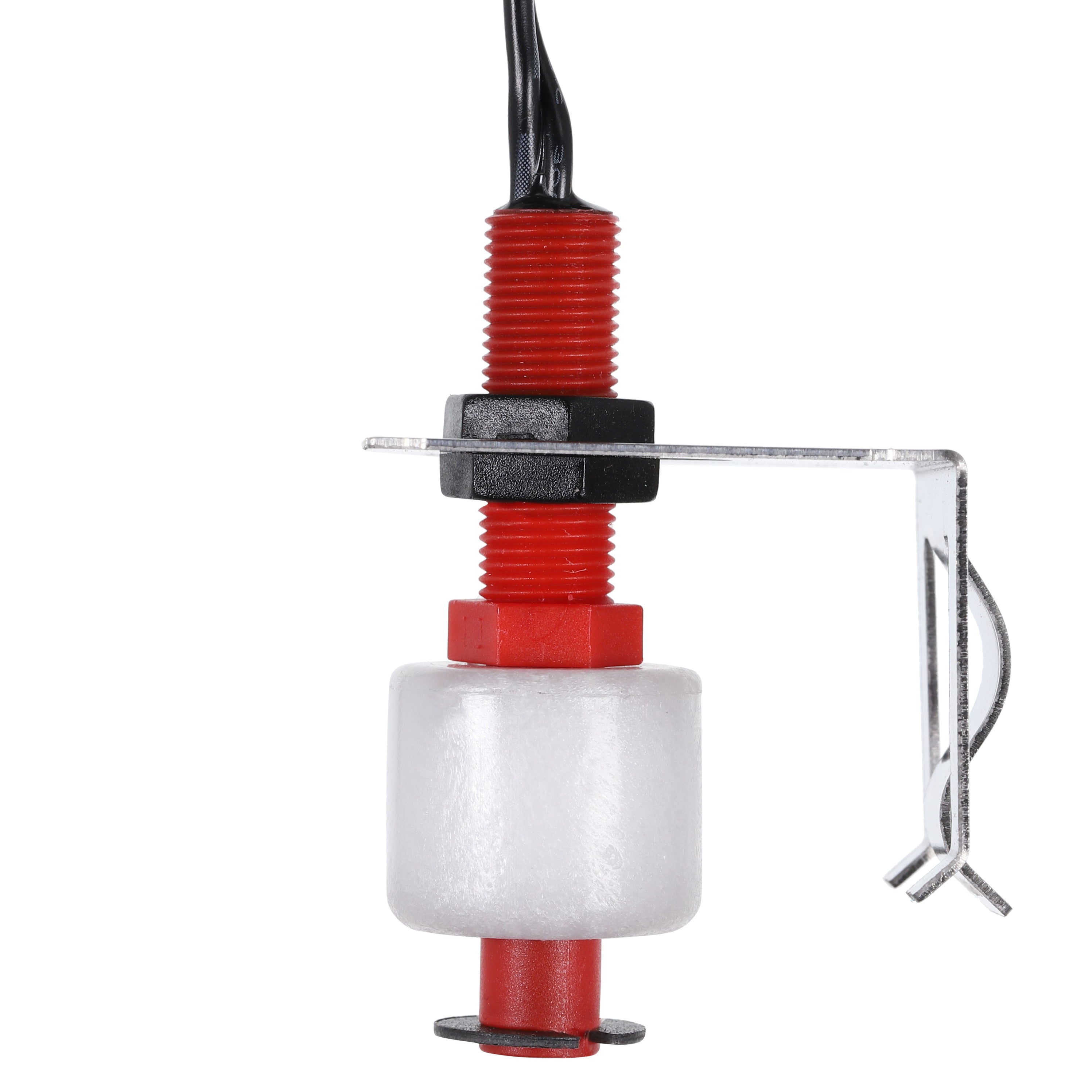

The DiversiTech CS-3-BULK50 is a drain pan clip float switch packaged with 50 switches, designed for high volume installs. It easily installs anywhere on the drain pan, with a stainless steel clip that adapts to multiple pan thicknesses. It uses a magnetic red switch for condensate overflow protection in primary or secondary drain pans.

• For standard rated installations in primary or secondary drain pans
• Adjustable activation height
• Position anywhere along the drain pan

Product Highlights

The CS-3-BULK50 prevents costly damage with a durable magnetic reed switch. It is simple to install, easy to service and extremely reliable.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: CS-3-BULK50
• Country of Origin: China

Technical Specifications

• Product Type: Pan-Mounted
• Application: Drain Pan Flood Prevention Switch
• UL Listed: No
• Alert Indicator: Visual
• Electrical Classification: Class 2
• Electrical Connection Type: 2-Wire
• Plenum Rated: Yes
• Rated Current (A): 1.5
• Rated Voltage: 24VAC
• Switch Mode: Normally closed (N/C)
• Test Switch / Button: No
• Ducted or Ductless: Ducted
• Switch Type: SPST
• Primary Depth (inches): 8.23
• Primary Width (inches): 3.5
• Primary Height (inches): 1.97
• ETL Listed: Yes
• Reset Type: Automatic
• AMP: 1.5
• Color Finish Name: White
• Suitable For Use With: Primary and Secondary Drain Pans
• Volts: 24V
