Product Description

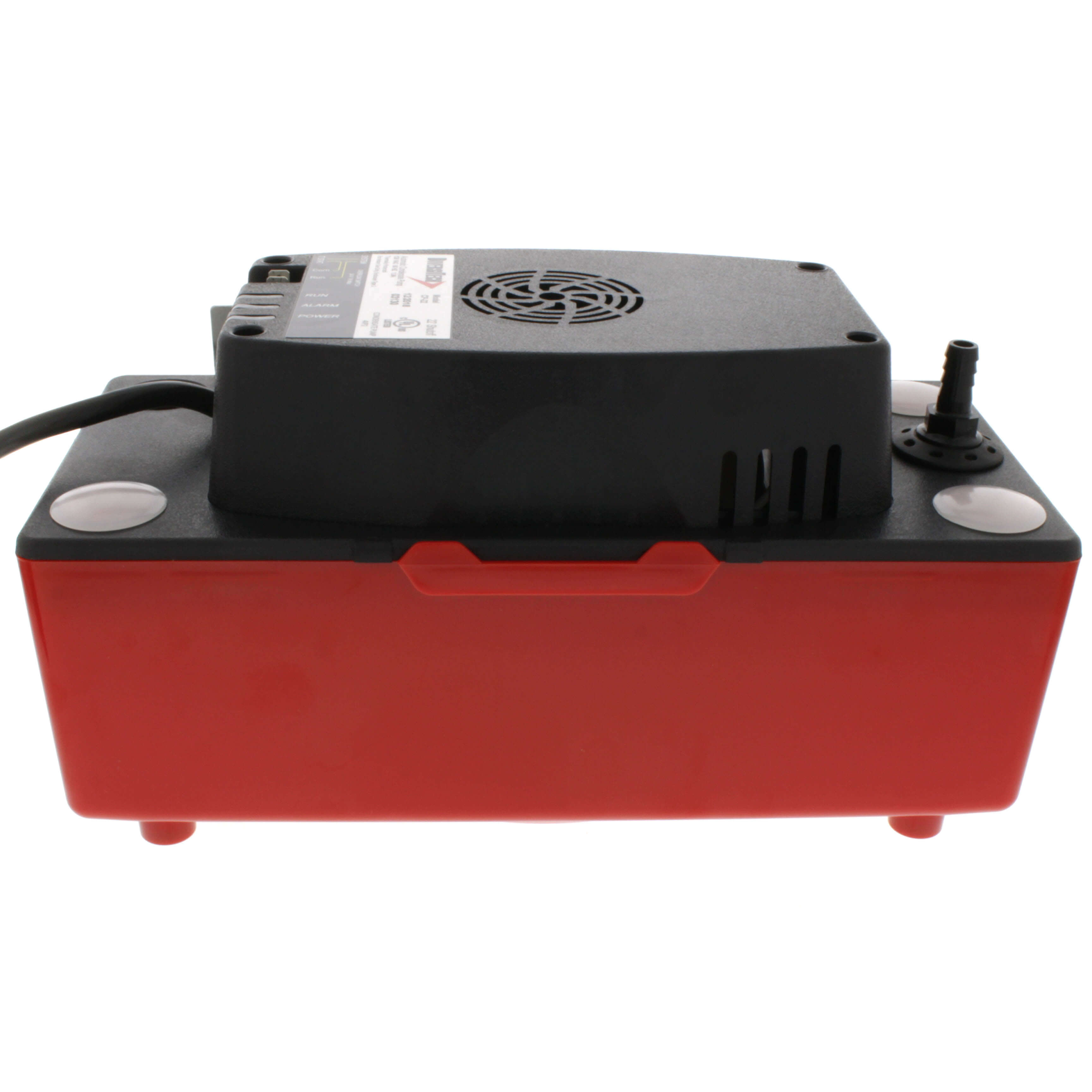

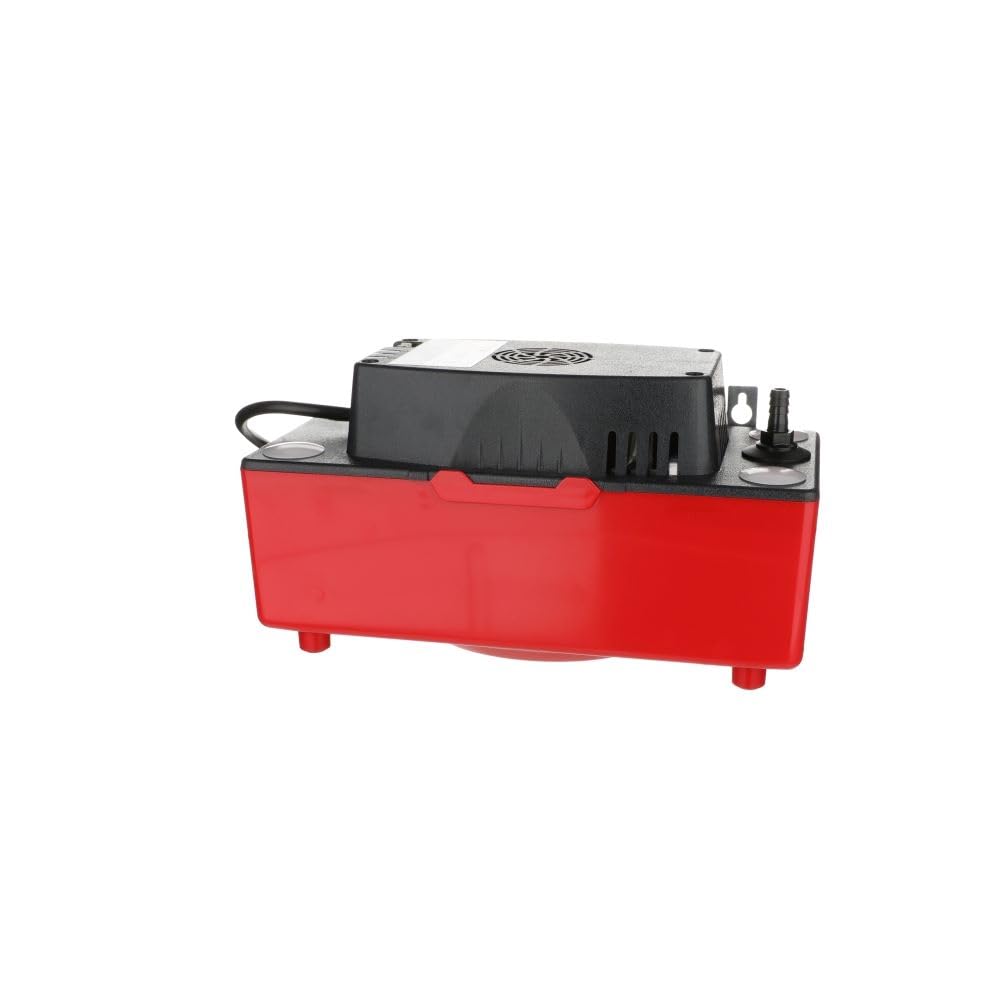

The DIVERSITECH CP-22T Condensate Pump is a 120V pump designed for removing condensate from HVAC/R equipment, high-efficiency furnaces, and humidifiers. It features a simple float switch, check valve, and an easy-to-understand indicator display. The pump includes 20 feet of 3/8" tubing for easy installation.
- Features four versatile inlet holes for installation.

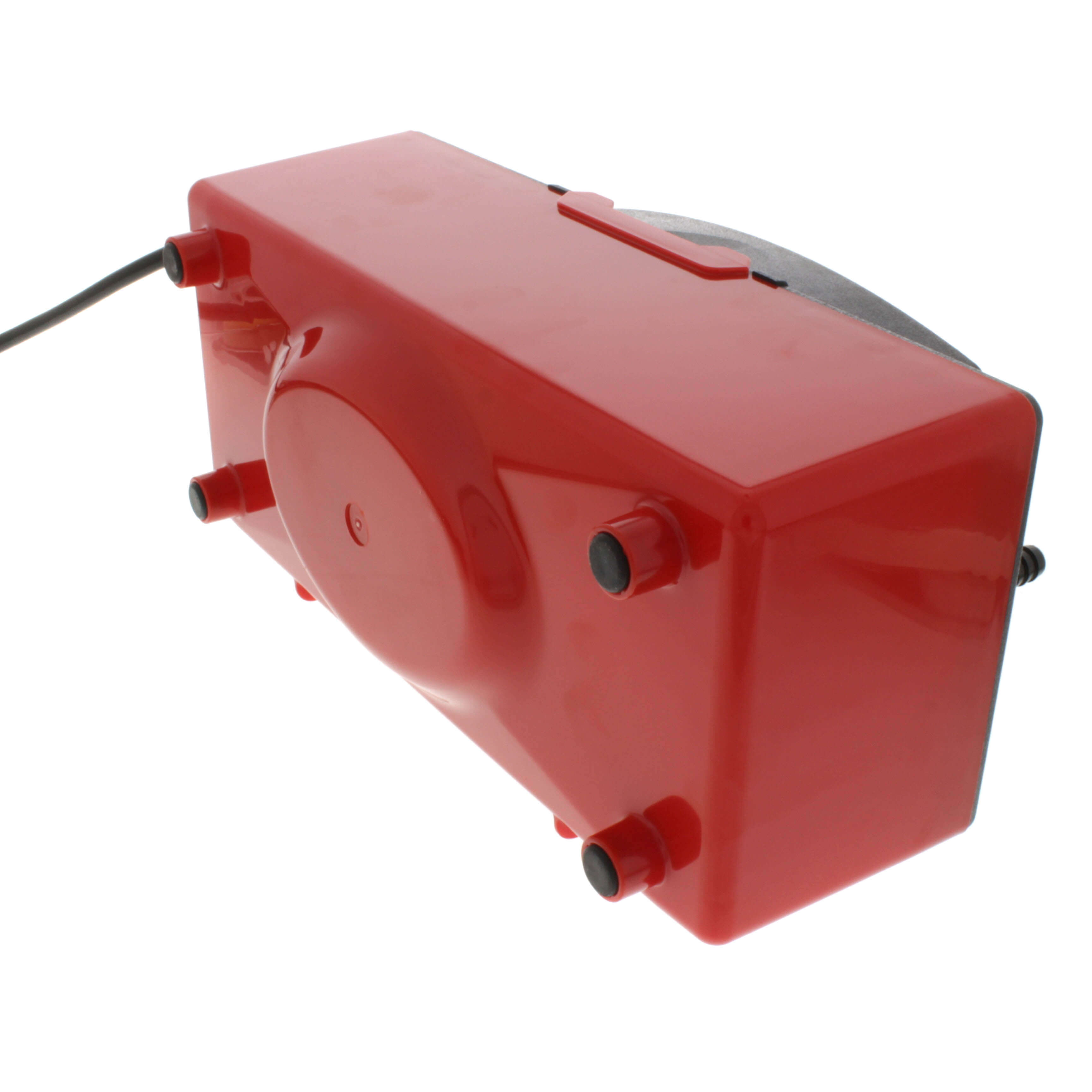

- Includes vibration dampening feet and motor mounts to reduce noise.
- Has a maximum lift of 22 feet.
Product Highlights
This condensate pump is suitable for HVAC systems, offers quiet operation, and easy integration with building automation systems.
Product Information
Standard Information
-
Brand: DIVERSITECH
-
Manufacturer Part Number: CP-22T
-
Country of Origin: VN
Technical Specifications
-
Voltage: 120 Volts
-
Material: Plastic
-
Power Source: Corded Electric
-
Maximum Flow Rate: 1.6 Gallons Per Minute
-
Style: Condensate Pump
-
Item Model Number: CP-22T
-
Lift: 22'
-
Inlet Holes: 4
-
Maximum Inlet Temperature: 160 F
-
Continuous Duty: 140 F
-
Number of Inlet Holes: 4
-
Application: HVAC/R Equipment
-
Check Valve: Removable
-

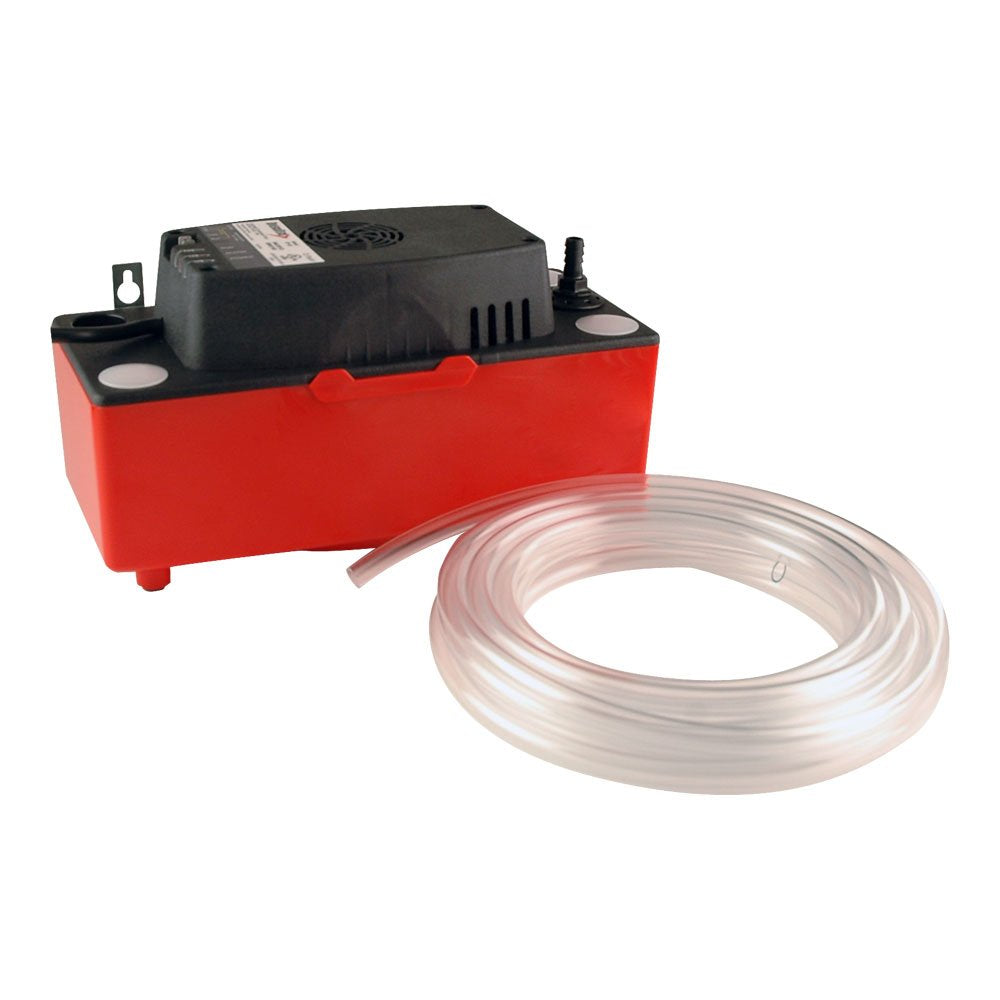

Tubing: 20' 3/8"
-
Ampere Rating: 1.9A
-
Power Supply: 120V, 60 Hz
-
Tank Capacity: 1/2 gal
-

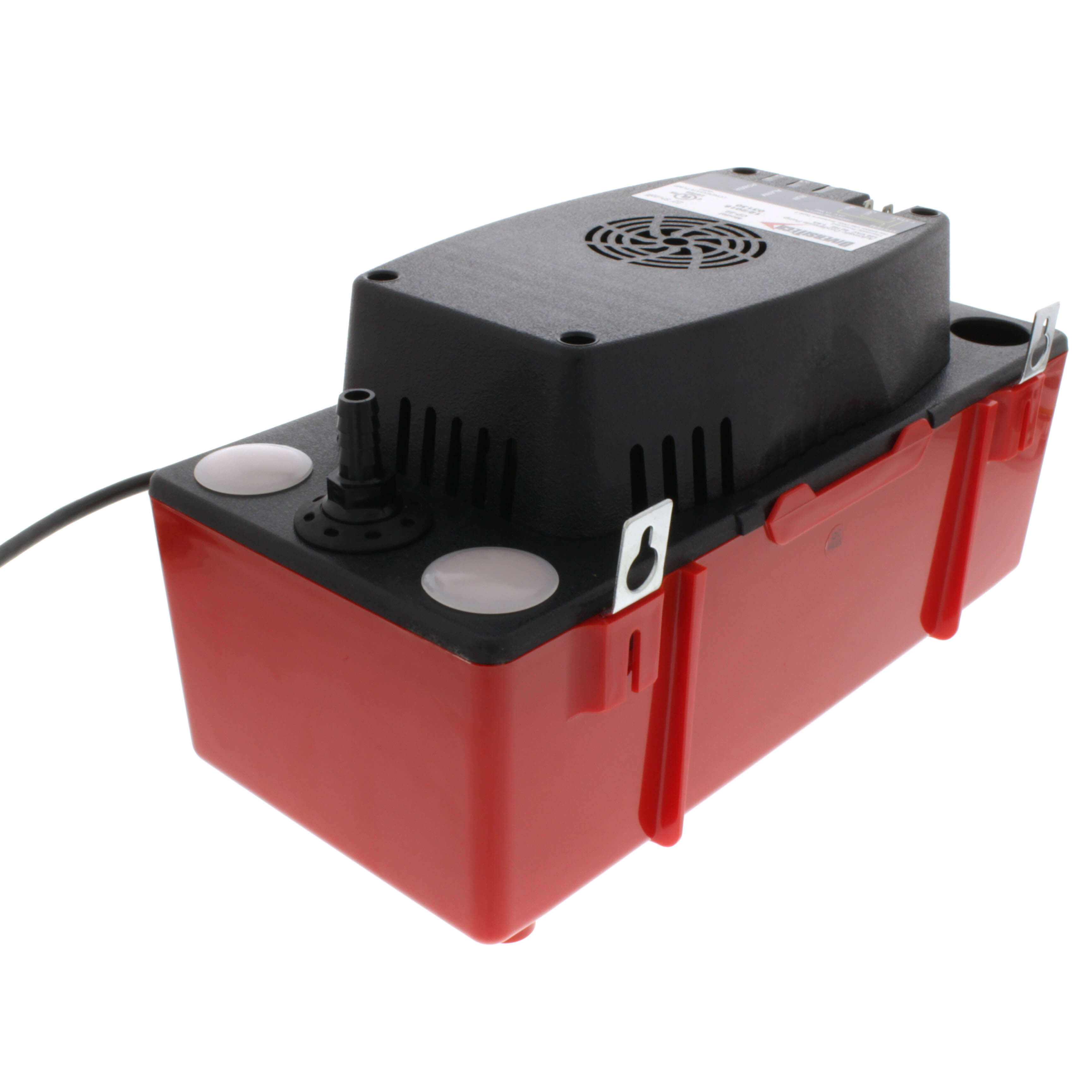

Includes: 20 ft Tube, Instruction Booklet, Metal Hang Tabs, Plug Protector, 4 ft Remote Shutoff Leads with Insulated Terminals, (3) Polyethelene Inlet Covers
-
Standards/Approvals: NEC Certified
-
Item Type: Condensate Pumps and AC Drain Pumps
-
Length: 11.8 inch
-
Width: 5.9 inch
-
Height: 6.7 inch
-
Applicable Standard: UL
-
Discharge Head: 22 Foot
-
Flow Rate: 1.6 GPM
-
Inclusions/Features: Tubing, Vibration Dampening Feet and Motor Mount, Metal Hang Tab, (4) Inlet Hole, Clear Indicator Display, Float Switch and Check Valve, Instruction Booklet, Plug Protector, 4' Remote Shut-Off Lead with Insulated Terminal, (3) Polyethylene Inlet Cover
-
Input Supply Rating: 120 Volt AC 60 Hertz, 1.9 Amp
-
Overall Dimensions: 11.8 Inch Length x 5.9 Inch Width x 6.7 Inch Height
-
Reservoir Capacity: 1/2 Gallon
-
Temperature Rating: 160 Deg F
-
GPH: 96
-
Frequency: 60 Hz
-
Amperage: 1.9 A
-
Volts: 120
-
Hertz: 60
-
Horsepower: 1/30
-
UL Listed: Yes
-
Amps: 1.9
-
Discharge Line (In.): 3/8
-
Floatless Sensor: No
-
GPH (Gal./Hr.) @ 10 Ft. Lift: 108
-
High Level Switch: Yes
-
Input Type: NEMA 5-15 Plug
-
Max Condensate Temp. (Degrees): 160°F
-
Max Flow Rate (GPH): 132
-
Max Lift Height (Ft.): 22
-
No. of Inlets: 4
-
Self-Cleaning: No
-
Tank Capacity (Gal.): 1/2
-
Variable Speed and Lift: No
-
Sound Level dB(A) @ 3 Ft.: N/A
-
Ducted or Ductless: Ducted
-
Color Code: N/A
-
Model: CP22T
-
MPN: CP22T
-
UPC: Does not apply
-
Electrical Ratings: 1.9 A 120 VAC 60 Hz
-
Series: CP Series
