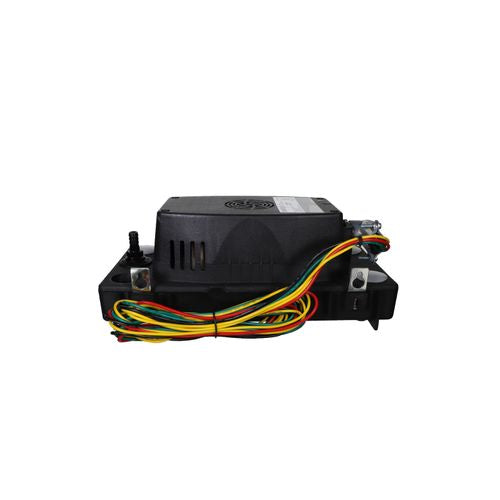

Diversitech CP-22LP-230-P Conden.Pump 22 ft.Lift 230V LP

Product Description

The DiversiTech CP-22LP-230-P Conden.Pump features a 22 ft. lift and operates at 230V. This condensate pump is only 4-3/8 inches tall, making it a great option when space is limited. It features vibration dampening feet and motor mounts, an LED display, a check valve, and an overflow switch. The reservoir holds 1/3 gallon of condensate.

• 22 ft maximum lift height
• Compact size, only 4-3/8” tall
• Built-in safety overflow switch

Product Highlights

The CP-22LP-230-P condensate pump is ideal for HVAC/R applications where space is at a premium. It is plenum rated and suitable for condensate up to 160° F.

Product Information

Standard Information

• Brand: DiversiTech
• Manufacturer Part Number: CP-22LP-230-P

Technical Specifications

• Brand: Diversitech
• Model / MPN: CP-22LP-230-P
• MPN: CP-22LP-230-P
• UPC: 095247167364
• Manufacturer: Diversitech
• Number of Items: 1.0
• Pkg Quantity: 1.0
• Volts: 230
• Application: HVAC/R Limited Space
• Hertz: 60
• Horsepower: 1/30
• UL Listed: Yes
• Amps: 1
• Discharge Line (In.): 3/8
• Floatless Sensor: No
• GPH (Gal./Hr.) @ 10 Ft. Lift: 108
• High Level Switch: Yes
• Input Type: NEMA 6-15 Plug
• Max Condensate Temp. (Degrees): 160°F
• Max Flow Rate (GPH): 132
• Max Lift Height (Ft.): 22
• No. of Inlets: 4
• Self-Cleaning: No
• Tank Capacity (Gal.): 1/3
• Variable Speed and Lift: No
• Sound Level dB(A) @ 3 Ft.: N/A
• Ducted or Ductless: Ducted
