Product Description

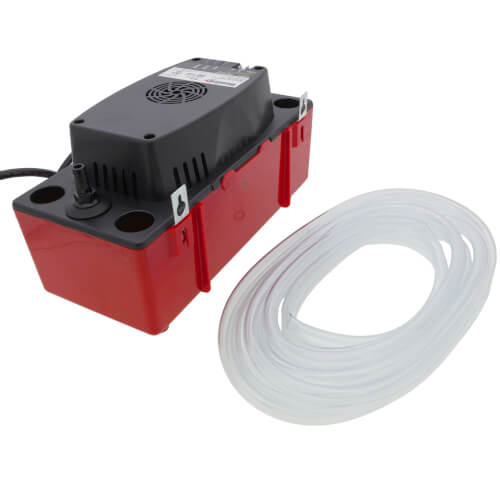

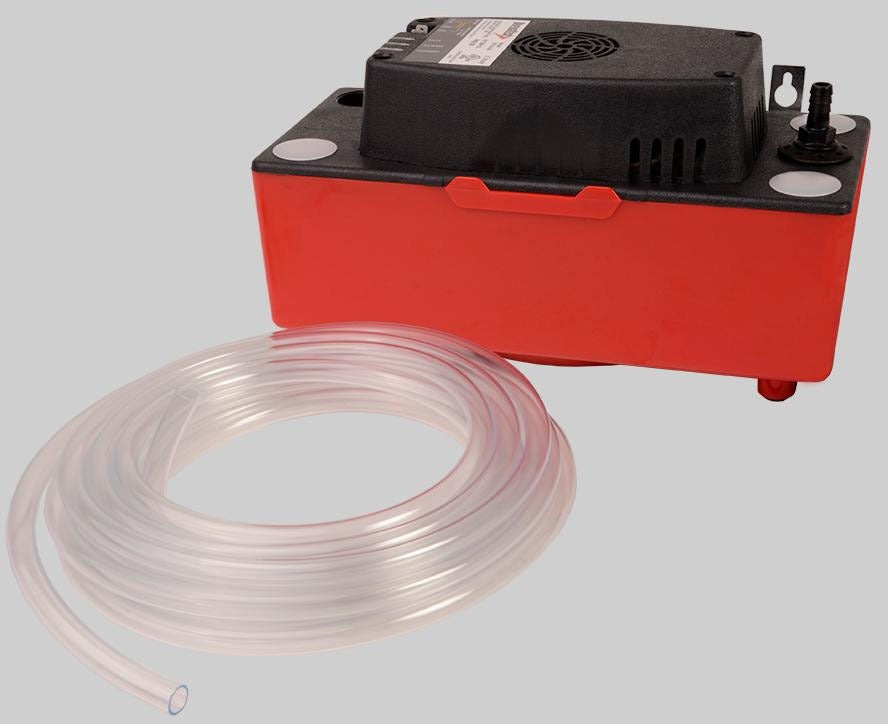

The DiversiTech CP-22-230T is a condensate pump designed for HVAC and refrigeration applications. With dimensions of eleven point eight inches in length, five point nine inches in width, and six point seven inches in height, it includes a powerful motor that operates at two hundred thirty volts AC.

• Flow rate of one point six gallons per minute.
• Discharge head of twenty-two feet.
• Includes three eighths inch tubing for easy installation.

Product Highlights

This pump features an efficient reservoir capacity of half a gallon and is equipped with a float switch and check valve. It operates effectively at temperatures rated up to one hundred sixty degrees Fahrenheit.

Product Information

Standard Information

• MPN: CP-22-230T
• Brand: DiversiTech

Technical Specifications

• Input Supply Rating: Two hundred thirty volts AC, sixty hertz, one amp
• Overall Dimensions: Eleven point eight inches length x five point nine inches width x six point seven inches height
• Reservoir Capacity: Half a gallon
• Temperature Rating: One hundred sixty degrees Fahrenheit
• Warranty: Two years
• Flow Rate: One point six gallons per minute
• Discharge Head: Twenty-two feet
• Applicable Standard: UL, NEC
• Inclusions/Features: Three eighths inch tubing, four inlet holes, clear indicator display, instruction booklet, metal hang tab, plug protector, four foot remote shut-off lead with insulated terminal

Manuals

• Document 1: View
