Product Description

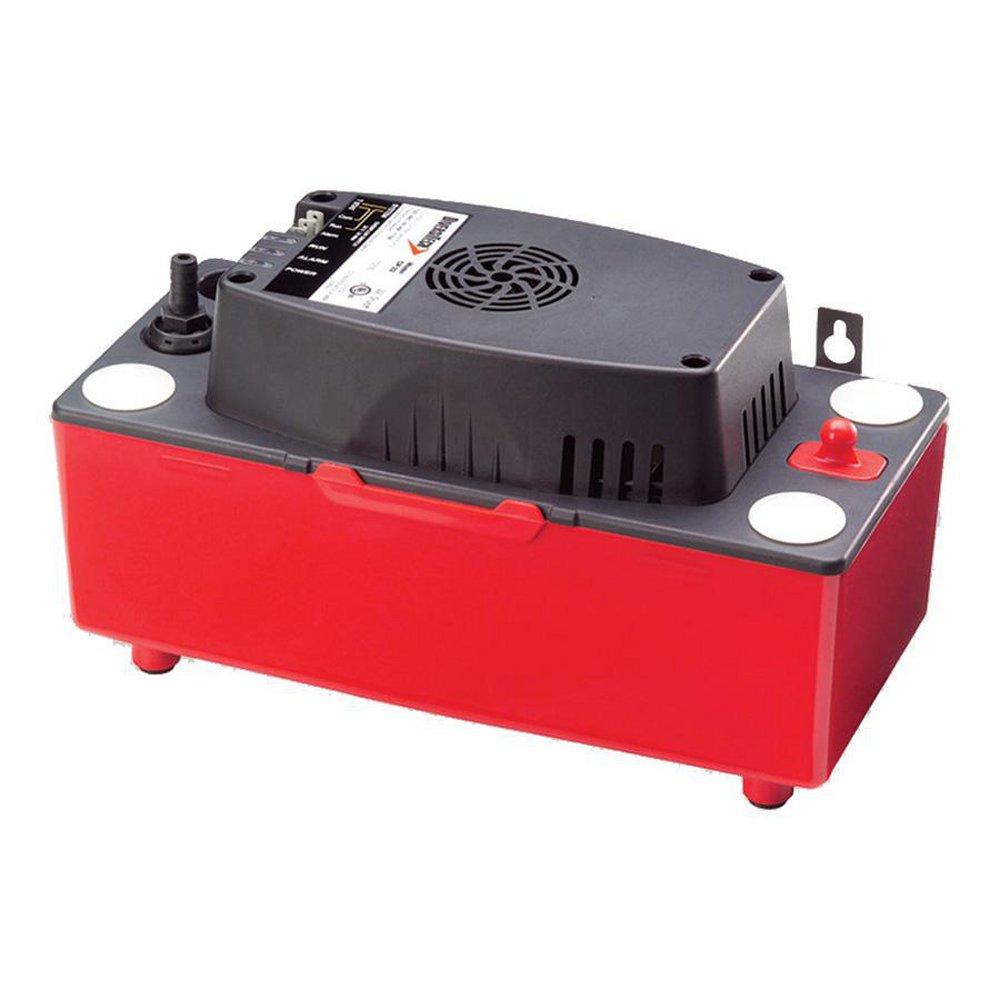

The Diversitech CP-22-230 is a condensate pump designed for efficient condensate removal in HVAC systems. This model operates on 230 volts and has a maximum lift height of twenty-two feet, surpassing the industry standard by two feet. It effectively handles condensate from high-efficiency boilers and humidifiers.
- Maximum lift height of twenty-two feet.
- Built-in check valve to prevent backflow.
- Compact design for easy installation.
Product Highlights
This pump features vibration dampening feet and motor mounts, metal hang tabs, and an easy installation process with quick connect terminals. The four inlet holes provide flexibility in installations.
Product Information
Standard Information
-
Brand: Diversitech
-
Part Number: CP-22-230
Technical Specifications
-
Weight: 5 pounds
-
Dimensions: Twelve inches long, six inches wide, six point seventy-five inches tall
-
Voltage: 230 VAC
-
Discharge Rate: 1.6 gallons per minute
-
Flow Rate: 96 gallons per hour
-
Maximum Temperature: 160 degrees Fahrenheit
-
Cord Length: Six feet
-
Motor Horsepower: 1/3 HP
