Diversitech CA7112-01-3 Panel Therm 2. in. Front

Product Description

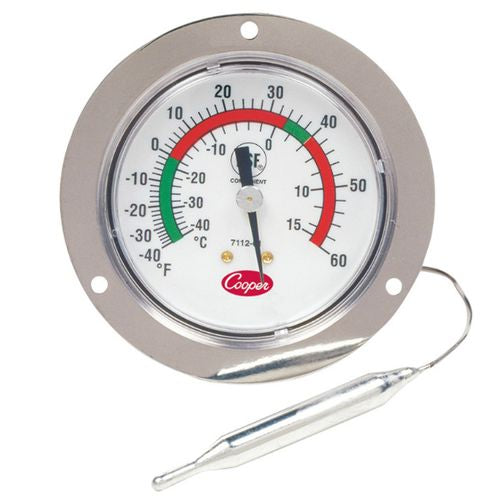

The DIVERSITECH CA7112-01-3 Panel Thermometer is designed for precise temperature monitoring in both ducted and ductless systems. This unit features a 2-inch front flange for straightforward installation and a 48-inch capillary back connection, offering flexible placement. Measuring 5.25 inches deep, 8.25 inches wide, and 2.75 inches high, it weighs 0.3563 lbs. The thermometer is NSF certified and operates within a temperature range of -40 to 60 degrees Fahrenheit.

• Features a 2-inch front flange and a 48-inch capillary back connect for versatile installation.
• Suitable for temperature monitoring in both ducted and ductless applications.
• NSF certified, ensuring compliance with public health standards, with a temperature range of -40 to 60 degrees Fahrenheit.

Product Highlights

Compact panel thermometer with a wide temperature range and flexible capillary connection.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: CA7112-01-3

Technical Specifications

• Manufacturer Part Number: CA7112-01-3
• Ducted or Ductless Compatibility: Both Ducted and Ductless
• UPC: 0070131311016
• Manufacturer: Diversitech
• Front Flange Size: 2 inches
• Capillary Length: 48 inches
• Certifications: NSF
• Temperature Range: -40 to 60 F
