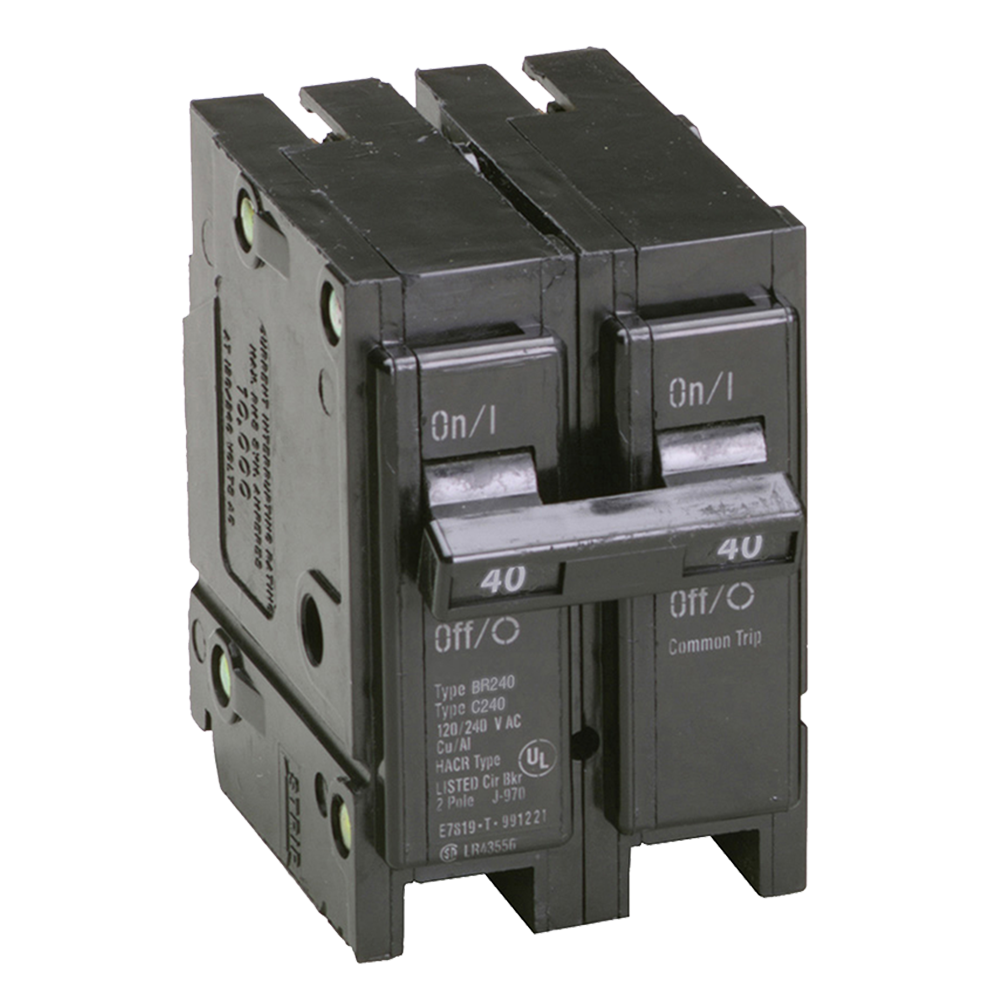

Diversitech BR240 circuit breaker 120/240 VAC 40 A 2-pole

Product Description

The DiversiTech BR240 circuit breaker is a 2-pole, 40 A thermal magnetic device designed for 120/240 VAC applications. It features a 10 kA interrupt rating and is suitable for use with Eaton's Type BR load centers. This plug-on circuit breaker protects electrical systems from overload and short circuit faults, supporting wire sizes from 14 to 4 AWG.

• All BR circuit breakers include a rejection tab feature for proper installation.
• Units feature a quick-make, quick-break switch mechanism with inverse time element tripping operation and trip-free handle design.
• Protects wires from overheating (overload) and fault currents (short circuit).

Product Highlights

Provides thermal magnetic protection against overload and short circuits for Eaton Type BR load centers.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: BR240

Technical Specifications

• Input Voltage: 120/240 VAC
• Amperage: 40 A
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Trip Type: Thermal Magnetic
• Compatibility: Eaton's Type BR Load Centers
• Wire Compatibility: 14 to 4 AWG Wire
• Product Width: 2 in.
• Certifications: UL Listed
• Primary Depth: 2 in.
• Primary Height: 2.5 in.
